Product Overview
GE F13DBX/827/ECO4P 97594 13W Double Biax Ecolux CFL - 2700K G24q-1 4-Pin Warm White

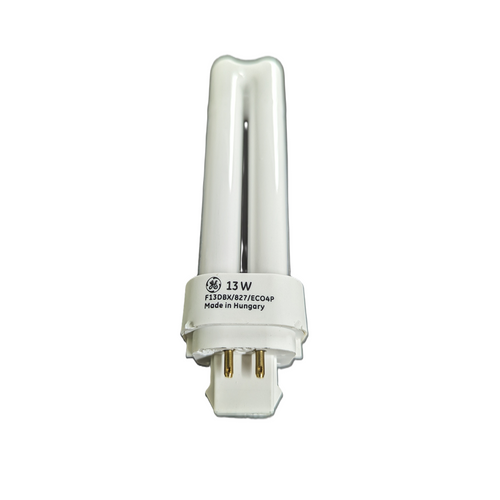

The GE F13DBX/827/ECO4P (Product Code: 97594) is a 13-watt Double Biax Ecolux compact fluorescent lamp featuring a T4 quad-tube design and 4-pin G24q-1 base. This energy-efficient CFL delivers 900 lumens of 2700K warm white light with 82 CRI and an extended rated life of 12,000 hours. Ideal for commercial and residential downlighting, display, and general lighting applications.
Key Specifications
- Product Code: 97594 (replaces 30035)
- Ordering Code: F13DBX/827/ECO4P
- Also Known As: F13DBX/SPX27/4P
- Wattage: 13W
- Voltage: 120V
- Base Type: G24q-1 (4-Pin Plug-In)
- Bulb Shape: T4 Quad Tube (Double Biax)
- Color Temperature: 2700K (Warm White)
- Color Rendering Index (CRI): 82
- Initial Lumens: 900 lm
- Mean Lumens: 755 lm (at 40% rated life)
- Luminous Efficacy: 69 lm/W
- Rated Life: 12,000 hours
- Maximum Overall Length (MOL): 5.0" (125.5mm)
- Diameter: 0.5" (12.7mm)
- Operating Position: Universal
- Starting Temperature: 50°F (10°C) standard / 0°F to -20°F available
- TCLP Compliant: Yes (low mercury)
- Country of Origin: Hungary
- Case Quantity: 10 per case
- UPC: 043168975940
Ecolux Technology Features
- Ecolux low-mercury technology for environmental compliance
- TCLP compliant for easier disposal regulations
- Same light output in any burning position (universal operation)
- Up to 80% energy savings vs equivalent incandescent
- Lasts 12× longer than standard incandescent lamps
- High color rendering index (CRI 82) for accurate color perception
- Compact quad-tube design fits most luminaires
- Dimmable with appropriate dimming ballast
- End-of-life protection with compatible ballasts
Compatible Ballast
- GE GEM1CF13PH120 (120V programmed start)
- Any electronic ballast compatible with 13W G24q-1 lamps
- Dimming ballasts available for dimming applications
Note: Minimum starting temperature depends on ballast capability (standard 50°F, extended range available)
Primary Applications
- Commercial Facilities and Office Lighting
- Retail Display and Merchandising
- Hospitality and Hotel Lighting
- Restaurant and Food Service
- Warehouse and Storage Facilities
- Residential Downlighting
- General Ambient Lighting
Alternate Part Numbers & Cross References
Replaces: GE 30035 (obsolete), F13DBX/827/4P
Cross Reference: Sylvania CF13DD/E/827, Philips PL-C 13W/827/4P, Osram Dulux D/E 13W/827, Ushio CF13D/E/827
Safety & Environmental Information
- Contains mercury - dispose of properly according to local regulations
- Operates only with electronic ballasts (not for magnetic ballasts)
- 4-pin base requires ballast with end-of-life protection
- Universal burning position suitable for any fixture orientation
