Product Overview

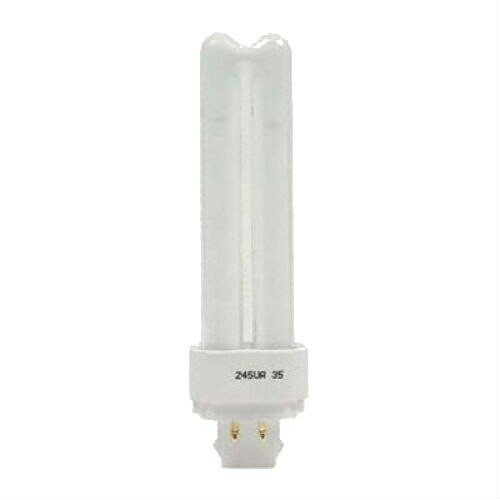

GE 97600 F18DBX/835/ECO4P 18W Double Biax Ecolux CFL - 3500K G24q-2 4-Pin Natural White
The GE 97600 F18DBX/835/ECO4P is an 18-watt Double Biax Ecolux compact fluorescent lamp featuring TCLP-compliant low-mercury technology and a 4-pin G24q-2 base. This energy-efficient CFL delivers 1,250 lumens of 3500K natural white light with 82 CRI and an extended rated life of 17,000 hours. Replaces 65W incandescent bulbs for facilities, retail, and office applications.
Key Specifications
- Product Code: 97600 (NAED)
- Legacy Code: 12869
- Ordering Code: F18DBX/835/ECO4P
- Wattage: 18W
- Voltage: 100V (lamp) / 120V (system)
- Base Type: G24q-2 (4-Pin Plug-In)
- Bulb Shape: T4 Double Biax (Quad Tube)
- Color Temperature: 3500K (835 Code) Natural White
- Color Rendering Index (CRI): 82
- Initial Lumens: 1,250 lm
- Mean Lumens: 970 lm
- Luminous Efficacy: 69 LPW
- Rated Life: 17,000 hours
- Equivalent Wattage: 65W incandescent
- Maximum Overall Length (MOL): 5.8" (147mm)
- Lighted Length: 3.4" (86mm)
- Diameter: 1.38" (35mm)
- Operating Position: Universal
- Minimum Starting Temp: 32°F (0°C)
- TCLP Compliant: Yes (low mercury)
- Country of Origin: Hungary
- Case Quantity: 10 per case
- UPC: 043168976008
Ecolux Technology Features
- Ecolux TCLP-compliant low-mercury technology for environmental safety
- Extended 17,000-hour rated life reduces maintenance costs
- High 1,250 lumen output with 69 LPW efficacy
- Same light output in any burning position (universal operation)
- Replaces 65W incandescent for up to 80% energy savings
- 3500K natural white color temperature for accurate color rendering
- 82 CRI for good color perception in commercial spaces
- 4-pin G24q-2 base for electronic ballast operation
- End-of-life protection with compatible ballasts
- Compact double biax design fits standard CFL fixtures
Compatible Ballast Systems
Requires electronic ballast compatible with 18W G24q-2 lamps. Compatible GE ballasts include:
- GE GEC218-MVPS series (for 18W CFL)
- Any ANSI-compatible 18W 4-pin electronic ballast
Note: Minimum starting temperature 32°F (0°C). Not for use with magnetic ballasts.
Primary Applications
- Commercial Facilities and Office Lighting
- Retail Display and Merchandising
- Hospitality and Hotel Lighting
- Restaurant and Food Service
- Warehouse and Industrial Facilities
- General Downlighting and Ambient Lighting
Alternate Part Numbers & Cross References
Also known as: GE 97600, 12869 (legacy), F18DBX/835/ECO4P
Cross Reference: Sylvania CF18DD/E/835, Philips PL-C 18W/835/4P, Osram Dulux D/E 18W/835
Safety & Environmental Information
- Contains mercury - dispose of properly according to local regulations (TCLP compliant)
- 4-pin base requires electronic ballast with end-of-life protection
- Universal burning position suitable for any fixture orientation
- Minimum starting temperature: 32°F (0°C)
- Maximum current crest factor: 5.25
