Product Overview

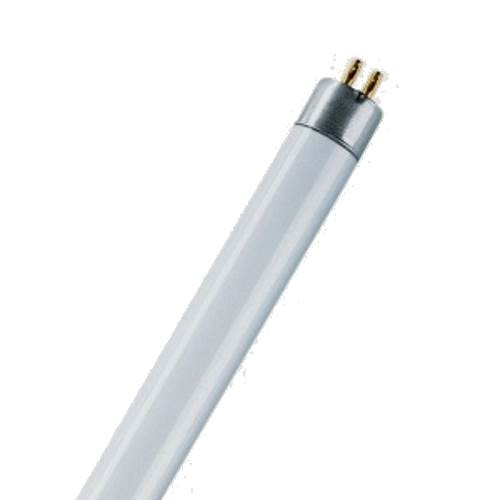

Osram LUMILUX T5 HO 80W/830 G5 Fluorescent Lamp
Osram LUMILUX T5 HO 80W/830 G5 Fluorescent Lamp is a 80W Osram LUMILUX T5 HO high lumen output fluorescent lamp in 830 Warm White (3000K) with a G5 miniature bi-pin base. It delivers 6,150 nominal lumens at Ra 80–89 color rendering with a rated average life of 24,000 hours on electronic ballasts.
Watts 80W | Length 1449 mm nominal | Color Temp 3000K | Nominal Lumens 6,150 lm | Base G5 Bi-Pin |
Technical Specifications
| Brand | Osram |
| Series | LUMILUX T5 HO (High Lumen Output) |
| Model | 80W/830 |
| Wattage | 80W |
| Lamp Type | T5 High Output Linear Fluorescent |
| Base | G5 Miniature Bi-Pin |
| Light Color | 830 Warm White |
| Color Temperature | 3000K |
| Color Rendering Index (CRI) | Ra 80–89 |
| Nominal Luminous Flux | 6,150 lm |
| Maximum Luminous Flux | 7,000 lm |
| Lamp Voltage (HF mode, rated) | 152 V |
| Lamp Current (HF mode, rated) | 530 mA |
| Pre-heat Current (rated) | 765 mA |
| Nominal Length (l1) | 1449 mm (57.05 in) |
| Maximum Overall Length (l3) | 1463.2 mm (57.61 in) |
| Maximum Tube Diameter | 17 mm (T5) |
| Rated Average Life (B50) | 24,000 hours (with electronic ballast, IEC 60081 switching cycle) |
| Service Life | 18,000 hours |
| Energy Efficiency Class (manufacturer data) | A |
| Dimmable | Yes, with an appropriate electronic control gear |
| SKU | OSLFQ 80 W/830 HO |
Product Overview
The Osram LUMILUX T5 HO series is a high lumen package T5 lamp with very good luminous flux maintenance throughout lamp life and natural color indication. It is designed for operation on electronic control gear and can be dimmed with an appropriate dimmable ballast.
- High lumen output in a 17 mm (T5) tube
- Rated average life up to 24,000 hours with electronic ballasts
- Good color rendering (Ra 80–89)
- Dimmable with appropriate control gear
Compatible Applications
- Luminaires designed for 80W T5 HO lamps with G5 lampholders
- Fixtures operated on electronic ballasts rated for 80W T5 HO lamps
- Commercial and industrial installations that use compact T5 linear fluorescent lamps
Before Ordering
- Confirm the lamp is 80W with a G5 base and the 830 (3000K) light color.
- Confirm the fixture accepts a lamp with a maximum overall length of 1463.2 mm (57.61 in). Other T5 lamps with the same length (T5 HO 49W, T5 HE 35W) have a different wattage, so confirm wattage and series against your ballast.
- Confirm the ballast is rated for 80W T5 HO lamps and matches your supply voltage.
- T5 lamps are not interchangeable with T8 or T12 lamps.
Safety and Handling
- Disconnect power before installing or removing the lamp.
- Handle the glass tube carefully and do not install a cracked or damaged lamp.
- Allow the lamp and fixture to cool before servicing.
- Light output depends on ambient temperature and is highest at about 35°C (95°F).
- In case of lamp breakage, see www.osram.com/brokenlamp.
Compliance
This lamp contains mercury. Dispose of used lamps according to local, state and federal regulations; see www.lamprecycle.org. Light and electrical data are measured per EN 60081 / IEC 60081 as stated by the manufacturer.
Ordering Information
Osram LUMILUX T5 HO 80W/830 G5, Warm White 3000K. Please verify wattage, light color, base, length and ballast compatibility before ordering.
Questions about compatibility or availability? Call ADL Supply at 1-800-235-3489.
