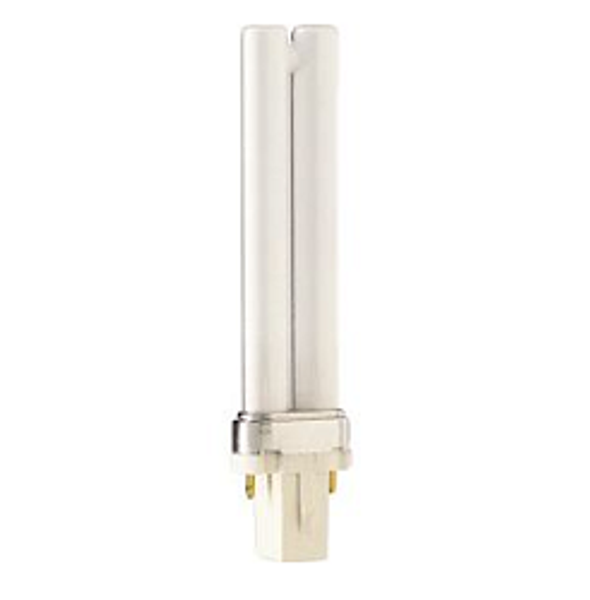

PHILIPS PL-S 9W 5000K | Daylight | G23 2-Pin Base | ALTO

The Philips 14680-3 (PL-S 9W/850/2P/ALTO) is a compact, energy-efficient twin-tube fluorescent lamp designed to deliver crisp, energizing daylight. Featuring an integrated starter within its G23 2-pin base, this 9-watt lamp is optimized for magnetic ballasts, simplifying fixture design and installation. With a high 82 CRI and a 5000K color temperature, it provides exceptional color rendering and visibility, making it an ideal choice for task lighting, security areas, and commercial corridors. Built with Philips' proprietary ALTO® low-mercury technology, this lamp offers a sustainable, long-lasting lighting solution with a rated average life of 10,000 hours.

Product Overview

The Philips PL-S 9W/850 series is engineered for high-visibility environments. Utilizing high-quality trichromatic phosphors, this lamp ensures excellent light quality and energy efficiency compared to standard incandescent bulbs. Its compact twin-tube profile allows it to fit into slim, recessed, and surface-mounted luminaires commonly used in commercial and residential settings. The 5000K Daylight spectrum provides a cool, energizing white light that mimics natural outdoor light, significantly improving focus and clarity in workspaces. Additionally, ALTO® technology reduces the mercury content, ensuring the lamp passes EPA TCLP guidelines for environmentally responsible disposal.

• Crisp Visibility: 5000K daylight color temperature is perfect for areas requiring high detail and task-oriented focus.
• Eco-Friendly Design: ALTO® low-mercury technology provides a more sustainable choice for large-scale facilities.
• Easy Installation: The G23 base includes an internal starter, eliminating the need for external starting components in magnetic ballast systems.
• Proven Reliability: Trichromatic phosphors maintain consistent color and high lumen maintenance over the 10,000-hour lamp life.

Technical Specifications

• Brand: Philips Lighting
• Ordering Code: 14680-3
• Model: PL-S 9W/850/2P/ALTO (CFT9W/G23/850)
• Wattage: 9W
• Base Type: G23 (2-Pin Bi-Pin)
• Bulb Shape: T4 (Single Twin-Tube)
• Color Temperature: 5000K (Daylight)
• Color Rendering Index (CRI): 82
• Initial Lumens: 570 lm
• Rated Average Life: 10,000 Hours
• Maximum Overall Length (MOL): 6.58 inches (167 mm)
• Mercury Content: ALTO® Low-Mercury Technology

Safety & Installation Guide

• Ballast Compatibility: Designed strictly for use with magnetic ballasts. Not intended for use with electronic ballasts.
• Integrated Starter: The base contains an integral starter; no separate starter is required for the fixture circuit.
• Handling: To ensure safety, always turn off power before replacing the lamp. Handle the glass tubes carefully to avoid breakage.
• Disposal: Although manufactured with ALTO® technology to be environmentally safer, always check local regulations for proper fluorescent lamp recycling.

Primary Applications

• Task Lighting: Workbenches, under-cabinet lighting, and utility areas requiring high focus.
• Commercial Corridors: Hallways and stairwells in offices and retail environments for safe navigation.
• Security Lighting: Exterior surface-mounted downlights for enhanced nighttime visibility.
• Recessed Fixtures: Compact downlights in hospitality and residential kitchens.
