Product Overview

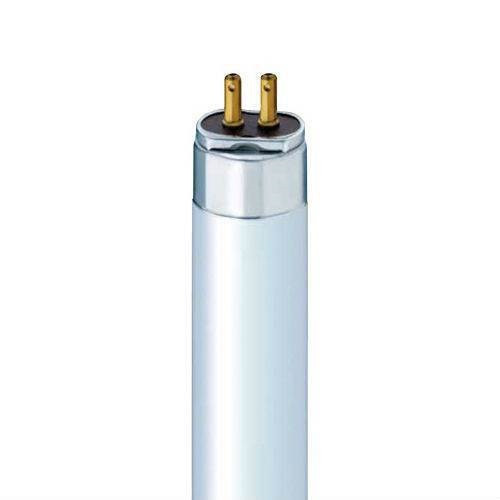

Sylvania 20192 FP24/21W/830/HO/SS/ECO 21W T5 3000K Warm White High Output Fluorescent Lamp
The Sylvania 20192 (FP24/21W/830/HO/SS/ECO) is a 21W T5 miniature bi-pin (5/8" diameter) linear fluorescent lamp from the PENTRON High Output SUPERSAVERS High Performance ECOLOGIC series. It measures 22.2" in overall length and produces 3000K warm white light with an 85 CRI. Rated average life is 30,000 hours based on 3-hour starts, extending to 36,000 hours on 12-hour starts.
Wattage 21W T5 High Output | Color Temp 3000K Warm White | Lumens 1,750 Initial @ 25°C | Length 22.2" 24" Nominal | Rated Life 30,000 Hours (3hr starts) |
Technical Specifications
| Sylvania Product Number | 20192 |
| Ordering Abbreviation | FP24/21W/830/HO/SS/ECO |
| Series | PENTRON High Output SUPERSAVERS High Performance ECOLOGIC |
| Bulb Type | T5 Miniature Bi-Pin (5/8" diameter) |
| Base | G5 Mini Bi-Pin |
| Wattage | 21W |
| Nominal Length | 24" |
| MOL (Maximum Overall Length) | 22.2" |
| Color Temperature | 3000K (Warm White) |
| CRI | 85 |
| Initial Lumens @ 25°C/77°F | 1,750 (mean 1,625) |
| Initial Lumens @ 35°C/95°F | 2,000 (mean 1,860) |
| Average Rated Life (3hr starts) | 30,000 hours |
| Average Rated Life (12hr starts) | 36,000 hours |
| Standard Package Quantity | 40 per case |
| Mercury Content | Contains mercury – not for sale or shipment in CA, CO, HI, ME, MN, OR, RI, VT; recycle per lamprecycle.org |
Product Overview
The Sylvania 20192 is part of the PENTRON High Output SUPERSAVERS High Performance ECOLOGIC lineup, built on the 5/8" diameter T5 miniature bi-pin platform. It is rated at 30,000 hours average life on 3-hour starts (up to 36,000 hours on 12-hour starts), with 3000K color temperature and 85 CRI.
Lumen output is rated at two ambient temperatures – 1,750 lumens at 25°C/77°F and 2,000 lumens at 35°C/95°F – since T5 fluorescent output varies with the operating temperature inside the fixture. Catalog lumen and life ratings are based on high-frequency (electronic ballast) operation.
Compatible Applications
- Fixtures specified for a 21W T5 G5 mini bi-pin lamp at 22.2" length
- Commercial, retail, and office linear fluorescent fixtures using T5 lamps
- Direct replacement for the Sylvania 20192 or its FP24/21W/830/HO/SS/ECO ordering abbreviation
Before Ordering – Verify
- Confirm your fixture accepts a 21W T5 lamp with a G5 mini bi-pin base
- Confirm lamp length of 22.2" matches your fixture's socket spacing
- Confirm the ballast is compatible with T5 lamps of this wattage
- Confirm 3000K color temperature matches the rest of your installation
- Minimum starting temperature is a function of the ballast; consult the ballast manufacturer
Safety and Handling Guidelines
- Turn off and allow the fixture to cool before relamping
- Handle by the base/end caps; avoid flexing or striking the glass tube
- Contains mercury – if broken, ventilate the area and follow EPA cleanup guidance
- Dispose of / recycle in accordance with state and local regulations
- Catalog note: T4 and T5 lamps operated on high-frequency ballasts may experience an abnormal end-of-life condition (bulb wall cracking near the base, or overheating of the base and socket). NEMA recommends ballasts with an end-of-life failure mode; see www.NEMA.org
Compliance
- Contains mercury – not for sale or shipment in CA, CO, HI, ME, MN, OR, RI, VT
- Recycle per lamprecycle.org
- ECOLOGIC® lamps pass the US EPA Toxicity Characteristic Leaching Procedure (TCLP) test for hazardous waste determination, per the Sylvania catalog
Ordering Information
- Sylvania Product Number: 20192
- Ordering Abbreviation: FP24/21W/830/HO/SS/ECO
- UPC: 046135201929
- Standard Package Quantity: 40 per case
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
