Sylvania 22171 FBO30/835/XP/6/SS/ECO

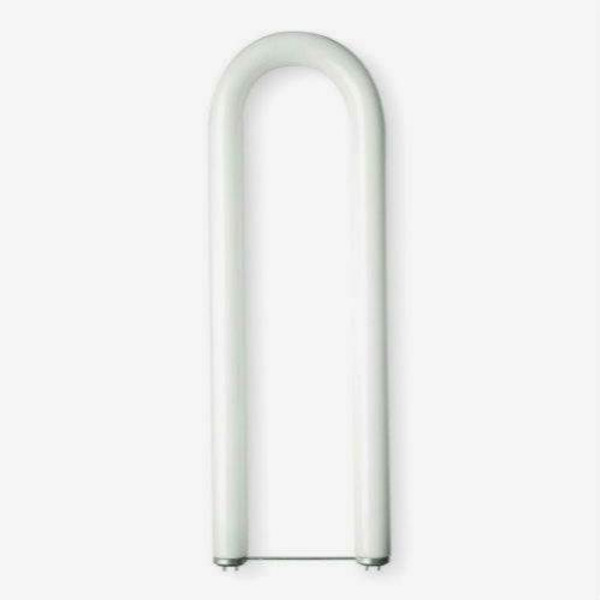

Sylvania 22171 FBO30/835/XP/6/SS/ECO – 30W T8 OCTRON 800 XP SUPERSAVER CURVALUME U-Shaped Fluorescent Lamp | 3500K | 2,800 Lumens | G13 Medium Bi-Pin

2,800 lumens at 3500K with CRI 85 – a 30W T8 OCTRON 800 XP SUPERSAVER CURVALUME U-Shaped fluorescent lamp with 6 in leg spacing.

Quick Specs

• Brand: Sylvania
• Product Code / Model: 22171 / FBO30/835/XP/6/SS/ECO
• Lamp Type: Fluorescent – OCTRON 800 XP SUPERSAVER CURVALUME U-Shaped
• Starting Method: Instant Start or Programmed Rapid Start (T8 ballast)
• Wattage: 30W
• Base Type: G13 Medium Bi-Pin
• Color Temperature: 3500K
• CRI: 85
• Initial Lumens: 2,800 lm (approx., after 100 hours of operation)
• Mean Lumens: 2,630 lm (measured at 40% of rated life)
• Rated Average Life – Instant Start (IS), 3 hr/start: 18,000 hr
• Rated Average Life – Instant Start (IS), 12 hr/start: 26,000 hr
• Rated Average Life – Programmed Rapid Start (PRS), 3 hr/start: 24,000 hr
• Rated Average Life – Programmed Rapid Start (PRS), 12 hr/start: 30,000 hr
• Leg Spacing: 6 in
• Nominal Length: 22.5 in (base face to outside of glass bend)
• Maximum Overall Length (MOL): 22.6 in
• Bulb Diameter: 1 in (T8)

Product Overview

The Sylvania 22171 FBO30/835/XP/6/SS/ECO is a 30W OCTRON 800 XP SUPERSAVER CURVALUME U-Shaped fluorescent lamp delivering 2,800 initial lumens at 3500K with a CRI of 85. It is built for U-shaped fixtures with 6-inch leg spacing where lamp length, base type, leg spacing, ballast type, wattage, and color temperature must match the existing system.

This lamp is best suited for maintenance replacement in commercial, industrial, and institutional spaces. Before ordering, confirm the G13 Medium Bi-Pin base, 6-inch leg spacing, 30W wattage, and 3500K color temperature against your existing lamp or fixture label.

Why Choose This Product

• 2,800 initial lumens: Catalog rating after 100 hours of operation, with 2,630 mean lumens at 40% of rated life.
• 3500K, CRI 85: Helps match the existing light color across a facility.
• 6-inch leg spacing, G13 Medium Bi-Pin base: U-shaped lamp for the correct fixture socket spacing; confirm before replacement.
• Up to 30,000 hr rated average life: Rated lives are listed for instant start and programmed rapid start operation at 3 and 12 hours per start.
• Sylvania OCTRON quality: Suitable for professional lighting applications and facility maintenance.

Technical Specifications

Dimensions

Applications

• Maintenance and retrofit replacement in compatible U-shaped T8 fixtures with 6-inch leg spacing
• Commercial, industrial, and institutional facilities and utility spaces
• Replacement for existing FBO30/835/XP/6/SS/ECO lamps – confirm the lamp code on your current lamp

Compatibility & Replacement

Fixture type: Designed for U-shaped T8 fixtures with 6-inch leg spacing using a G13 Medium Bi-Pin base.

Ballast: Use a ballast designed to operate T8 lamps (instant start, rapid start, or programmed rapid start electronic, or 265 mA magnetic rapid start). Always confirm the existing ballast label before ordering.

Starting temperature: Minimum starting temperature is a function of the ballast; consult the ballast manufacturer.

Sylvania catalog notes for this lamp:

• OCTRON lamps should be operated only with magnetic rapid start ballasts designed to operate 265 mA T8 lamps, or with high frequency (electronic) ballasts that are instant start, rapid start, or programmed rapid start and specifically designed to operate T8 lamps. They may be operated on instant start ballasts with ballast factors from 0.71 to 1.20 at the nominal ballast input voltage. In instant start mode, the two wires or contacts of each socket should be connected to each other and then to the ballast lead wire using National Electric Code techniques.
• Approximate length of OCTRON CURVALUME lamps is measured from the base face to the outside of the glass bend.
• Recommended for use on any F32 T8 instant start circuit. Not recommended with rapid start circuits unless the open circuit voltage is greater than 550V, at lamp ambient temperatures below 60°F or in drafty locations, on dimming ballasts, or on inverter-operated emergency lighting systems unless that equipment is specifically listed for use with the OCTRON SUPERSAVER 27, 28, 29 or 30 watt U-bent T8 lamp. Any of these situations could result in lamp starting and stabilization problems.

Before ordering, confirm:

• Existing lamp model matches FBO30/835/XP/6/SS/ECO or an approved equivalent.
• Fixture socket matches G13 Medium Bi-Pin and the leg spacing is 6 inches.
• Wattage is 30W and the ballast is compatible.
• Color temperature is 3500K.
• Physical size is 22.5 in nominal length (22.6 in MOL) x 1 in diameter.

Ordering Information

• Brand: Sylvania
• Product Code / Model: 22171 / FBO30/835/XP/6/SS/ECO
• Description: 30W T8 U-shaped fluorescent lamp, 3500K, 2,800 lumens, 6-inch leg spacing, G13 Medium Bi-Pin base
• Specifications: Taken from the Sylvania linear fluorescent lamp catalog; specifications are subject to change without notice.

Safety & Handling Notes

• Disconnect power before installing or servicing.
• Use only in approved fixtures designed for compatible FBO30/835/XP/6/SS/ECO lamps.
• Fluorescent lamps contain mercury and should be recycled or disposed of according to local regulations.
• ECOLOGIC (ECO) lamp: designed to pass the federal TCLP criteria for classification as non-hazardous waste in most states. Disposal regulations vary – check local and state regulations.
• Follow the fixture manufacturer's instructions and local electrical codes for installation.
