Product Overview

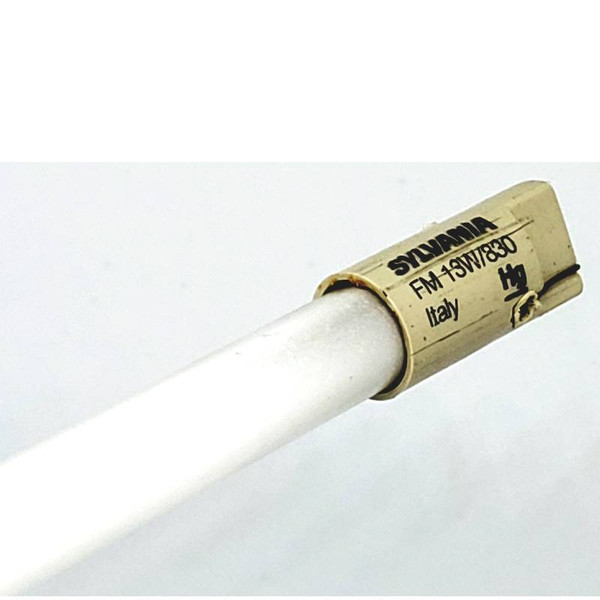

Sylvania FM13/830 13W T2 Subminiature Fluorescent Lamp
The FM13/830 is a designer-series 13-watt subminiature T2 fluorescent lamp. Measuring only 7mm in diameter with a unique Axial base, this lamp is engineered for ultra-low-profile fixtures where space is at a premium. Delivering 930 initial lumens of 3000K warm white light, it is the ideal choice for high-end undercounter lighting, showcase displays, and task lighting.
Technical Specifications
| Sylvania Order Code | 21644 -26253 (FM13/830) | Wattage | 13W |
| Base Type | Axial (Single Pin) | Initial Lumens | 930 lm |
| Color Temp | 3000K (Warm White) | CRI | 80 |
| Avg. Rated Life | 10,000 Hours | Diameter | 7mm (T2) |
| Overall Length (MOL) | 20.60 Inches | Ballast Req. | QUICKTRONIC FM |
Key Benefits
- Ultra-Slim Design: The 7mm (2/8") diameter allows for incredibly lightweight, low-profile fixture designs that "disappear" under shelves or inside cabinets.
- Superior Performance: Outperforms older T5 preheat lamps with higher lumen output and 90% lumen maintenance over its 10,000-hour life.
- Tri-Phosphor Coating: Provides excellent color rendition (80 CRI) that blends seamlessly with incandescent and halogen lighting.
- Secure Axial Base: Features a single-pin axial design for quick connection and positive retention within the socket.
Ideal For:
- Undercounter Lighting
- Display Backlighting
- Showcase/Jewelry Cases
- Furniture Task Lights
- Shelf & Cove Lighting
- Step & Path Lighting
Installation Note: This subminiature lamp requires a specific QUICKTRONIC FM electronic ballast for proper operation. Ensure your fixture is compatible with T2 Axial base lamps before purchase.
Disposal: Contains mercury. Please follow local hazardous waste regulations for fluorescent lamp recycling.
