GE 23847 Q6 6A/T2 1/2/1CL Airfield / Aviation Lamp - 45W 6.6A T2.5

Product Overview

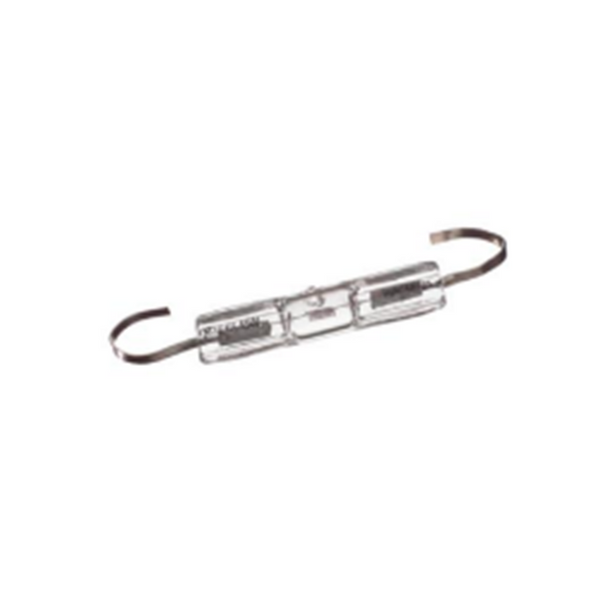

GE 23847 Q6 6A/T2 1/2/1CL — 45W 6.6A Double-Ended Quartz Halogen Airfield/Aviation Lamp, T2.5

The GE 23847 Q6 6A/T2 1/2/1CL is a 45-watt, double-ended quartz halogen lamp from GE Lighting's Quartzline series, designed for airport and airfield visual guidance fixtures operating on 6.6A constant-current series circuits. With a Bi-Pin (Special) base, C-8 filament, T2.5 bulb, 710 initial lumens, 15 lumens-per-watt efficacy, and a rated life of 1,000 hours, this lamp is built for reliable, exact-match replacement in demanding aviation lighting environments. Match the GE order code, electrical rating, and physical dimensions to the installed fixture before ordering.

Wattage

45W

Quartzline Halogen

Electrical

6.6A

Constant Current

Lamp Shape

T2.5

Double-Ended

Lumens

710 lm

15 lm/W

Rated Life

1,000 hrs

Average Life

Technical Specifications

Brand	GE Lighting — Quartzline
GE Order Code	23847
Description	Q6 6A/T2 1/2/1CL
Lamp Type	Halogen — Double-Ended
System Type	6.6A Constant Current Airfield Series Circuit
Primary Application	Airport & Airfield
Wattage	45W
Amps	6.6A
Bulb Shape	T2.5
Base Type	Bi-Pin (Special)
Filament Type	C-8
Max Overall Length (MOL)	1.75" (44.4mm)
Bulb Diameter (DIA)	0.312" (7.9mm)
LCL	Not listed by manufacturer — verify against fixture documentation
Rated Life	1,000 hours
Initial Lumens	710 lm
Efficacy	15 lm/W (nominal)
Color Temperature	Not listed by manufacturer
CBCP	Not listed by manufacturer
Burn Position	Not specified — verify against fixture documentation
Standard Package Quantity	12 (Case)
UPC	043168238472
GTIN	10043168238479
Additional Information	Clear, Airport

Product Overview

The GE 23847 Quartzline T2.5 is a pressurized double-ended quartz halogen lamp purpose-built for airport and airfield visual guidance fixtures, where lamp substitution can affect optical output, beam placement, maintenance intervals, and overall fixture performance. This lamp operates on 6.6A constant-current series airfield lighting circuits — common in runway, taxiway, approach, and threshold lighting systems — and is not interchangeable with constant-voltage lamp variants without confirming fixture compatibility.

As a double-ended pressurized lamp, this product carries specific handling and installation requirements beyond typical single-ended halogen lamps: it must be used only in an enclosed fixture rated for this product, and operating voltage must never exceed 110% of rated value. For best results and fixture warranty compliance, replace like-for-like using the exact GE order code and current fixture documentation.

Compatible Applications

Runway edge and centerline lighting
Taxiway edge and centerline lighting
Approach/end lighting and threshold lighting
PAPI and airfield visual guidance systems
Airport beacon, obstruction, and guidance-sign fixtures where specified
FAA/ICAO fixture maintenance programs where the fixture calls for this exact lamp type

Before Ordering — Verify

GE Order Code: Confirm the installed lamp or fixture documentation calls for GE 23847 / Q6 6A/T2 1/2/1CL.
Electrical Rating: Confirm the fixture operates on a 6.6A constant-current circuit and is not a different airfield circuit type.
Wattage: Confirm the fixture is rated for 45W operation.
Base Type: Confirm the socket or connector matches Bi-Pin (Special).
Burn Position: Not specified by the manufacturer — confirm the required burn position against your fixture documentation before ordering.
Physical Fit: Confirm 1.75" MOL and 0.312" diameter fit within fixture clearance. LCL is not published — verify against fixture documentation if critical to your application.
Voltage Limit: Confirm circuit voltage will not exceed 110% of this lamp's rated voltage at any point.

Safety and Installation Guidelines

Pressurized Lamp Warning: Unexpected rupture may cause injury, fire, or property damage. Avoid direct water, liquid, or metal contact. Do not exceed 110% of rated voltage. Use only in an enclosed fixture rated for this product.
Risk of Fire: Keep combustible materials away from the lamp. Use only in an enclosed fixture rated for this product.
Risk of Electric Shock: Turn power off before inspection, installation, or removal.
Risk of Shattering/Injury: Lamp may shatter and cause injury if broken. Do not use if the outer glass is scratched or broken. Dispose of lamp in a closed container.
Risk of Burn: Allow lamp and fixture to cool completely before handling. Turn power off before installing.
Qualified Installation: Airport, airfield, and aviation lamps should be installed by qualified maintenance personnel following fixture and site procedures.
Handle Carefully: Use clean gloves or a lint-free cloth to avoid quartz contamination.
Use Correct Replacement: Do not substitute lamps unless the fixture manufacturer or maintenance documentation permits it.

Compliance

UPC 043168238472 / GTIN 10043168238479.
Verify FAA/ICAO compliance requirements and RoHS status with the GE manufacturer specification sheet prior to use in regulated airfield installations.
