GE 27460 M69/BAB/STD 20W 12V MR16 Halogen BAB

Product Overview

GE Lighting Logo

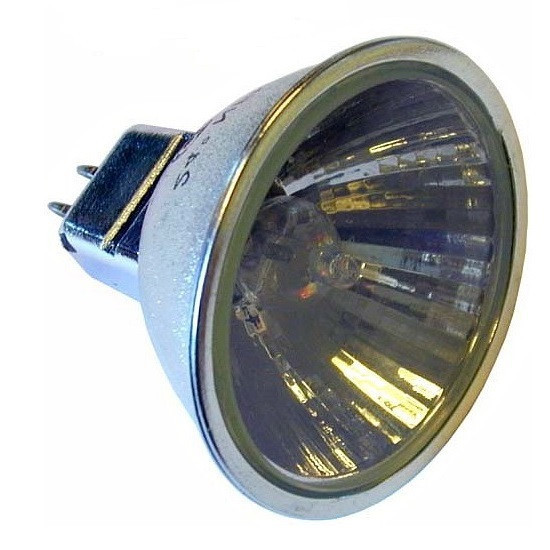

GE 27460 M69/BAB/STD — Standard MR16 20W 12V MR16 Halogen Reflector Lamp, GU5.3 Base, 36° Beam, ANSI BAB, Open Face

The GE M69/BAB/STD (order code 27460) is a 20W 12V MR16 tungsten halogen reflector lamp from the Standard MR16 family, with a GU5.3 two-pin base. It produces a 36° beam at 440 centerbeam candela. Color temperature is 3,000K and rated life is 3,000 hours. This is an open face lamp with no cover glass and must be used in a fixture with a lens or protective shield. Confirm the base type, beam angle, transformer voltage, and fixture shielding before ordering.

Wattage

20W / 12V

Beam

36°

Centerbeam

440 cd

Color Temp

3,000K

Rated Life

3,000 hrs

Technical Specifications

Brand	GE Lighting
Order Code	27460
Description	M69/BAB/STD
Product Family	Standard MR16
Lamp Type	Tungsten halogen MR16 reflector
Bulb Shape	MR16
Base	GU5.3 two-pin
Nominal Wattage	20 W
Voltage	12 V
Beam Angle	36°
ANSI Code	BAB
Centerbeam Candela	440 cd
Color Temperature	3,000 K
Rated Life	3,000 hours
Diameter	50 mm (catalog heading)
Cover Glass	No — open face
Pack Quantity	10

Product Overview

MR16 lamps are reflector lamps: a small tungsten halogen capsule sits at the focus of a dichroic reflector that collects and directs the light into a defined beam. Because the whole optical system is contained in a two-inch lamp, MR16 remains the standard source for display, accent, and retail lighting where a small aperture and a precisely controlled beam matter more than raw output.

This lamp is part of GE's Standard MR16 range of 12V halogen reflector lamps. It is an open face lamp with no integral cover glass, so it must be installed in a fixture fitted with a lens or protective shield.

Voltage matters: this is a 12V lamp and requires a matching low-voltage supply.

Compatible Applications

Retail display and merchandise accent lighting
Track lighting and adjustable downlights
Museum, gallery, and exhibit casework
Hospitality, restaurant, and hotel accent lighting
Residential accent and decorative lighting
Display cases and cabinetry lighting
12V low-voltage lighting systems with a matching transformer
Fixtures fitted with a lens or protective shield

Before Ordering — Verify

Confirm the beam required. This lamp is the 36° version at 440 cd.
Confirm the socket is GU5.3 two-pin. GU5.3, GX5.3, and GU7 Turn & Lock are not interchangeable, and a lamp with the wrong base will not seat or retain correctly.
Confirm the supply is 12V and that the transformer is rated for 20W per lamp across the total lamp count.
This is an open face lamp with no cover glass. Confirm the fixture has a lens or protective shield. Do not install in an unshielded fixture.
Overall length is not listed in the manufacturer catalog for this order code. Confirm fixture clearance before ordering.
Confirm pack quantity — the manufacturer pack quantity for this order code is 10.
ANSI code BAB can be used to cross-reference equivalents from other manufacturers. Confirm cover glass, base, and voltage as well, since the ANSI code alone does not distinguish them.
Specifications are taken from GE's European lamp catalogue (Spectrum). Confirm suitability for your installation and local requirements.

Safety and Handling Guidelines

Disconnect power and allow the lamp to cool completely before handling or replacement. Halogen lamps run hot and stay hot well after switch-off.
Do not touch the capsule or reflector with bare hands. Skin oils cause localized overheating and can lead to premature failure. Clean with isopropyl alcohol if the glass is touched.
Handle the lamp by its reflector body or base, not the capsule.
This lamp has no cover glass. Install only in a fixture fitted with a lens or protective shield so that fragments are contained if the capsule fails.
Operate on a 12V supply only. Overvoltage operation sharply reduces lamp life.
Do not install a lamp with a cracked, scratched, or otherwise damaged reflector.
Keep combustible materials clear of the lamp and fixture.
Follow the fixture manufacturer's instructions for lamp orientation and any position restrictions.
This lamp contains no mercury. Recycle or dispose of it in accordance with local requirements.

Compliance

Refer to the warning and caution notices published by GE for this order code before specification or installation.
Contains no mercury. Not subject to mercury lamp disposal or shipping restrictions.
Dispose of in accordance with local regulations.
