GE 61371 LU250/SYB/XL/ECO

Product Overview

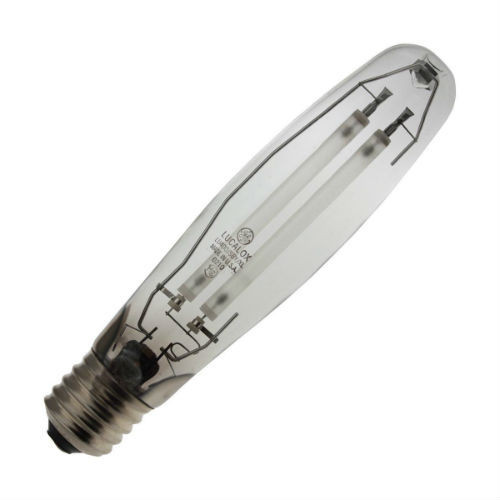

GE 61371 LU250/SBY/XL/ECO — 250W Standby Longlife HPS Lamp, E39 Base

The GE 61371 LU250/SBY/XL/ECO is a 250-watt Ecolux® Standby Longlife TCLP-compliant HPS lamp with dual arc tubes with a ED18 bulb and E39 Mogul Screw base, designed for HPS ballast circuits rated ANSI S50. It delivers 27,500 initial lumens at 2000K and is rated for 40,000 hours.

WATTAGE

250W

HPS / HID

LUMENS

27,500 lm

Mean: 24,750 lm

CCT

2000K

Warm Amber

BASE

E39

Mogul Screw

RATED LIFE

40,000 hrs

Average Life

Technical Specifications

GE Order Code	61371
GE Model / Description	LU250/SBY/XL/ECO
Lamp Type	High Pressure Sodium (HPS) — Lucalox
Bulb Shape	ED18
Base Type	E39 Mogul Screw
Burning Position	U — Universal (any burning position)
Fixture Enclosure Rating	O — Open or enclosed fixture (per GE datasheet)
Maximum Overall Length (MOL)	9.75"
Light Center Length (LCL)	5.75"
Wattage	250W
ANSI Ballast Type	S50
Case Quantity	12
Rated Life	40,000 hours
Initial Lumens	27,500 lm
Mean Lumens	24,750 lm
Color Temperature	2000K
CRI	22
Lamp Finish / Additional Info	Clear, Standby Longlife, Dual Arc Tube, TCLP Compliant
UPC / EAN	43168613712
Mercury Content	Contains mercury — dispose per local regulations.

Product Overview

The GE LU250/SBY/XL/ECO is a 250-watt Ecolux® Standby Longlife TCLP-compliant HPS lamp with dual arc tubes. It ships with a ED18 bulb envelope on a E39 Mogul Screw base and is built to operate on an HPS ballast rated ANSI S50. Output is 27,500 initial lumens (24,750 mean lumens) at 2000K and 22 CRI, with a warm amber HPS color.

Standby Longlife lamps contain an extra arc tube that provides light instantly after a momentary power interruption and returns to 80% light output in 1–2 minutes. They operate on standard HPS ballasts and auxiliary equipment and use a lead-free base that passes TCLP.

Not recommended for: retail displays, color-critical inspection environments, or any application requiring CRI above 22.

Compatible Applications

Typical uses (per GE): Industrial, roadway, security, and hard-to-reach sockets.
Fixtures wired for an HPS ballast rated ANSI S50 with a E39 Mogul Screw socket.
Direct replacement for existing 250W HPS lamps with the same base and ballast rating. Verify ballast compatibility before ordering.
Burning position: U (Universal — any burning position).

Before Ordering — Verify

ANSI / Ballast Code: Confirm the existing lamp or ballast label matches S50.
Wattage: Confirm the fixture is rated for 250W.
Base Type: Confirm the socket matches E39 Mogul Screw.
Ballast Compatibility: This lamp requires an HPS-rated ballast and ignitor. It will not operate on a metal halide or mercury vapor ballast.
Burn Position: HPS lamps are not position-sensitive — no orientation restriction.
Physical Fit: Confirm lamp shape (ED18), length (9.75" MOL), and clearance against the existing lamp or fixture manual.
Confirm order code 61371 (GE LU250/SBY/XL/ECO) exactly matches the lamp or ballast label on your existing fixture before purchasing a replacement.
Case pack quantity is 12; confirm this meets your order needs.

Safety and Handling Guidelines

Correct Ballast Required: Use only with an HPS-compatible ballast and ignitor rated for this lamp. An incompatible ballast can cause lamp failure or fixture damage.
Vacuum Jacket: This is a vacuum jacket lamp and may implode if broken. Wear safety glasses and gloves when installing or removing the lamp, and allow it to cool fully first.
Sodium Content: The lamp contains sodium — avoid skin contact with broken pieces (chemical burn risk).
Warm-Up / Restrike: Per GE, HPS lamps take about 3–4 minutes to reach 90% light output after starting, and about 1 minute after a brief power interruption.
Approved Fixtures Only: Install only in fixtures rated for the listed lamp type, wattage, and operating position; do not use if the outer glass is scratched or broken.
Mercury Content: Contains mercury. Do not dispose of in regular trash; recycle through an approved lamp recycling program in accordance with federal, state, and local regulations.

Compliance

Ecolux® lamps use a lead-free base and pass TCLP per the GE catalog, which can lower disposal costs.
Contains mercury — subject to applicable lamp recycling and disposal regulations. California, Washington, and other states may have mandatory take-back or handling fee requirements.
Verify additional certifications (UL, Title 20, Prop 65) with the GE specification sheet prior to use in regulated installations.
