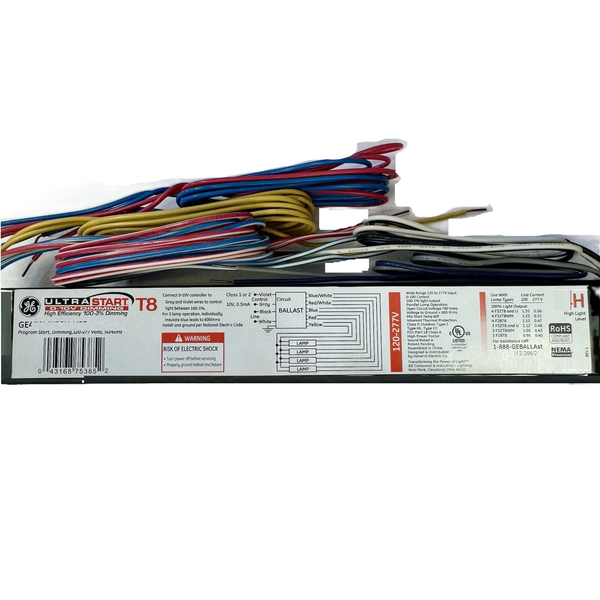

GE 75381 GE332MVPS-N-V03 T8 T8 UltraStart 0-10V Programmed Start Dimming Ballast

Product Overview

GE 75381 GE332MVPS-N-V03 UltraStart — 2-3 Lamp T8 0-10V Dimming Electronic Ballast, 120-277V, Normal BF 0.88

The GE 75381 GE332MVPS-N-V03 UltraStart is a 2-3 lamp T8 electronic 0-10V dimming ballast from GE Lighting, designed for commercial T8 fluorescent dimming systems with 0-10V analog control. Universal voltage input covers 120–277V ±10%. Normal ballast factor 0.88, dimming range 100% to 3%, programmed rapid start, parallel lamp circuit, active power factor correction, anti-striation control, Class A sound rating, 70°C maximum case temperature, 104°F maximum ambient. Compatible with Class 1 or Class 2 0-10VDC controllers. Verify lamp type, lamp count, and input voltage before ordering.

Lamp Count

2–3 Lamps

T8 Fluorescent

Input Voltage

120–277V

±10% Universal

Dimming

0-10V

100% to 3%

Ballast Factor

0.88

Normal Output

Start Type

Programmed

Rapid Start

Technical Specifications

Brand	GE Lighting — UltraStart
GE Order Code	75381
Model	GE332MVPS-N-V03
Ballast Type	Electronic Dimming — 0-10V
Lamp Count	2–3 Lamps
Compatible Lamp Types	F32T8, F32T8/WM, F28T8, F25T8, F17T8
Input Voltage	120–277V (±10%), 50/60Hz
Start Method	Programmed Rapid Start
Dimming Protocol	0-10V (Class 1 or Class 2, 0-10VDC)
Dimming Range	100% to 3%
Lamp Circuit	Parallel
Ballast Factor	0.88 (Normal)
Power Factor Correction	Active
Sound Rating	Class A (20–24 dB)
Anti-Striation Control	Yes
Maximum Ambient Temperature	104°F (40°C)
Maximum Case Temperature	70°C (158°F)
Dimensions	9.5" L x 1.7" W x 1.18" H
Weight	1.65 lbs
Exit Type	Side

Product Overview

The GE 75381 GE332MVPS-N-V03 is a 2-3 lamp version of GE's UltraStart normal BF 0-10V dimming T8 ballast series. This ballast provides the same full 100% to 3% 0-10V dimming capability as the 4-lamp GE 75382 (GE432-MVPS-N-V03) in a smaller form factor suited for 2-3 lamp T8 fixtures. Normal ballast factor (0.88) delivers full rated lamp lumens without over-driving.

Universal voltage operation (120–277V) covers all standard North American commercial circuits. Programmed rapid start preheats cathodes before ignition, extending lamp life in the variable duty cycles typical of dimming installations. Parallel lamp circuit keeps remaining lamps operating if one fails.

Compatible Lamps

(2–3) F32T8 — standard 48" T8
(2–3) F32T8/WM — energy-saving 48" T8
(2–3) F28T8 — 28W T8
(2–3) F25T8 — 36" T8
(2–3) F17T8 — 24" T8

Compatible Applications

0-10V dimming commercial lighting — Daylight harvesting and automated dimming control in 2-3 lamp T8 fixture configurations.
Normal output dimming systems — Full rated lamp lumens at 0.88 BF with continuous 0-10V dimming capability.
Universal voltage commercial systems — Single SKU covers both 120V and 277V commercial circuits.

Before Ordering — Verify

Dimming Protocol: Requires a 0-10V analog dimming controller — not compatible with DALI, phase-cut, or switching-based bi-level controls.
Lamp Count: Confirm fixture requires 2 or 3 lamps. For 3-4 lamp configurations, see GE 75382 (normal BF) or GE 75385 (high BF).
Lamp Type: Confirm lamps are on the compatible list above.
Input Voltage: Confirm circuit is within 120–277V ±10%.
Physical Fit: Confirm 9.5" x 1.7" x 1.18" fits within your fixture's ballast cavity.
Socket Type: Programmed start requires un-shunted lampholders — verify before installing.

Safety and Installation Guidelines

Disconnect and lock out power before removing or installing a ballast.
Ground the ballast and fixture properly per NEC and local electrical codes.
Do not bundle lamp leads — excess wiring can cause starting or performance issues.
Qualified personnel only — install per applicable electrical codes.
