Product Overview

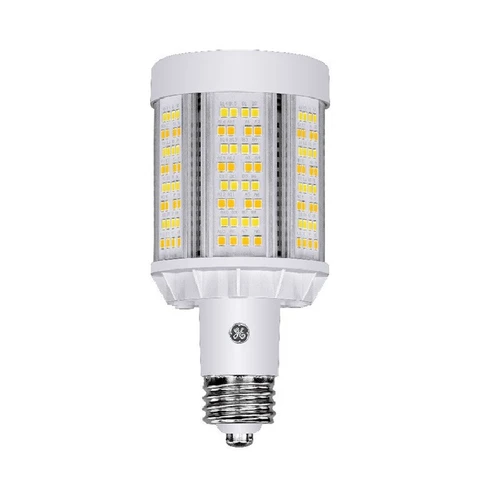

GE 93303384 LED/LC/ED17/7SC ED17 LED HID Replacement Lamp 21/35/45W Selectable 3000K/4000K/5000K E26/EX39 120-277V
The GE LED/LC/ED17/7SC is a Type B ballast-bypass LED retrofit lamp for HID fixtures, with field-selectable wattage (21W / 35W / 45W) and color temperature (3000K / 4000K / 5000K) on a single E26 medium-base lamp. An EX39 mogul-base adapter is included, allowing direct retrofit into either E26 or EX39 mogul HID sockets without separate accessory ordering. One SKU covers multiple HID replacement scenarios — cutting inventory complexity for contractors and maintenance crews.
|
Selectable Watts
21 / 35 / 45W
|
Selectable Lumens
3,400 / 5,500 / 7,000 lm
|
Selectable CCT
3000K / 4000K / 5000K
|
Voltage
120-277V
|
Technical Specifications
| Brand | GE / Current |
| Product Code / SKU | 93303384 |
| Manufacturer Part Number | LED/LC/ED17/7SC |
| UL Type | Type B (ballast bypass) |
| Bulb Shape | ED17 |
| Base | E26 medium with EX39 mogul-base adapter included |
| MOL (Length) | 5.4 in |
| Diameter | 2.6 in |
| Selectable Wattage | 21W / 35W / 45W |
| Selectable Lumens | 3,400 / 5,500 / 7,000 lm (matched to wattage) |
| Selectable CCT | 3000K / 4000K / 5000K |
| Efficacy | 162 / 157 / 156 LPW (at 21W / 35W / 45W respectively) |
| Voltage | 120-277V |
| CRI | 70 |
| Rated Life | 50,000 hours |
| Operating Temperature | -40°C to 50°C |
| Dimmable | No |
| Location Rating | Damp |
| Safety Certification | cULus |
| Standard Pack Quantity | 3 |
| UPC | 662049524208 |
| Warranty | 5-year limited |
Product Overview
This GE Type B LED lamp is engineered to replace standard ED17 HID lamps (mercury vapor, metal halide, and high-pressure sodium) in commercial and industrial fixtures where the ballast has been removed or bypassed. Selectable wattage and CCT — controlled via the lamp's onboard switches — let one SKU serve as multiple HID replacement options, reducing the number of part numbers stocked. The included EX39 mogul-base adapter extends compatibility to both medium-base and mogul-base sockets, which is the dominant base type in HID warehouse, parking lot, and shoebox fixtures.
Compatible Applications
- HID retrofit in fixtures where ballast has been removed or bypassed (line-voltage direct wiring)
- Area, site, wall pack, canopy, shoebox, and low-/medium-bay fixtures with ED17 lamp form factor
- Parking lots, warehouses, exterior building lighting, security lighting, indoor industrial spaces
- Commercial maintenance fleets seeking to consolidate HID replacement SKUs
Before Ordering – Verify
- Confirm the fixture's ballast has been physically bypassed or removed — this lamp will not operate on an existing HID ballast
- Confirm fixture socket type (E26 medium or EX39 mogul) — both are supported via the included adapter, but installer should be aware which is in use
- This lamp is not dimmable; do not install on any dimming circuit
- Confirm fixture is rated for Damp locations or better at the installation site (this lamp is Damp-rated, not Wet-rated)
- HID wattage equivalency should be confirmed against the specific fixture and lumen target before bulk ordering
Safety and Handling
Installation requires the fixture's HID ballast to be bypassed or removed. Work should be performed by a qualified electrician or in accordance with all applicable local electrical codes. Disconnect power at the breaker before servicing fixtures.
Compliance
- Safety Certification: cULus
- Location Rating: Damp
- DLC status not confirmed by manufacturer — if DLC compliance is required for utility rebate or specification purposes, verify current QPL listing at designlights.org/search before ordering
Ordering Information
For help selecting the correct wattage, CCT, or HID equivalency for your fixture, contact ADL Supply at 1-800-235-3489.
