Product Overview

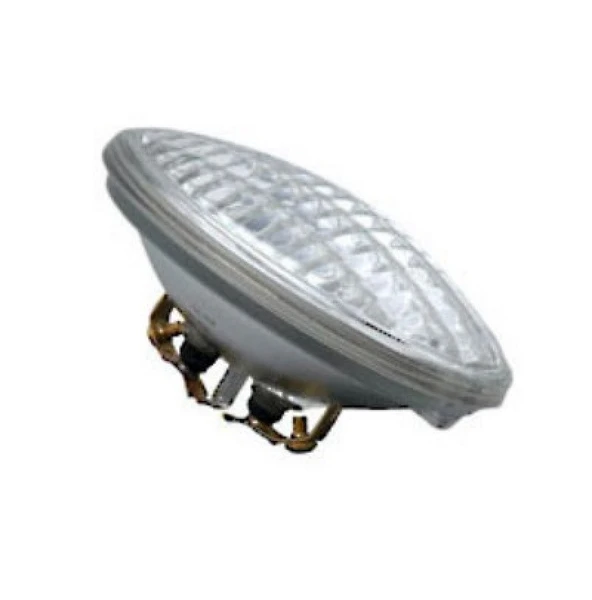

GE H7607 #17672 — PAR36 Tractor Flood Sealed Beam Lamp, 65W 12.8V
The GE H7607 (order code 17672) is a 65W 12.8V PAR36 sealed beam lamp listed in GE's Miniature, Sealed Beam and Automotive Lamps catalog under the application “Tractor Flood”. Rated life is 600 hours.
Order code 17672 is the 60-pack bulk order code for this lamp; the catalog does not list a separate unit-pack code.
Select this lamp by matching the GE lamp number, order code, voltage, wattage, base style, and beam pattern to the installed fixture. Confirm compatibility before ordering.
|
Wattage
65W
GE Lamp
|
Voltage
12.8V
Rated
|
Lamp Shape
PAR36
Sealed Beam
|
MBCP
N/L
Catalog Value
|
Life
600 h
Rated Avg.
|
Product Overview
A PAR36 sealed beam lamp has its filament, reflector, and lens factory-sealed as one unit, so the beam pattern is fixed by the lamp. Beam spread, intensity, voltage, and base style therefore determine which lamp number is correct for a given fixture, and like-for-like replacement is the safest approach.
GE lists this lamp (no. H7607) in its catalog under “Tractor Flood”. Catalog beam spread is given to 10% of maximum beam candlepower (MBCP).
Technical Specifications
| Brand | GE Lighting |
| Order Code | 17672 |
| GE Lamp No. | H7607 |
| Description | GE H7607 PAR36 Tractor Flood 65W 12.8V |
| Application | Tractor Flood |
| Bulb Shape | PAR36 (nominal 4.5 in diameter) |
| Voltage | 12.8 V |
| Wattage | 65 W |
| Maximum Beam Candlepower (MBCP) | Not listed in catalog |
| Beam Spread to 10% MBCP (Horizontal × Vertical) | Non-symmetrical |
| Base | Screw Terminals |
| MOL | 2.75 in |
| Rated Life | 600 hours |
| Bulk Pack Quantity | 60 |
| Catalog Footnotes / Notices | 4, 307 |
| UPC | 043168176729 |
Typical Applications
- Catalog application: Tractor Flood
- Replacement in fixtures that specify GE lamp no. H7607
- 12.8V systems rated for 65W per lamp
- Fixtures that accept a PAR36 lamp with Screw Terminals (per the catalog)
Before Ordering Verify
- GE Order Code: Confirm the installed lamp or fixture documentation calls for GE H7607 / order code 17672.
- Electrical Rating: Confirm the fixture operates at 12.8V and 65W.
- Base Type: Confirm the socket or connector matches Screw Terminals.
- Beam Pattern: Confirm the required beam spread (Non-symmetrical).
- Physical Fit: Verify MOL (2.75 in) and fixture clearance before ordering.
- Burn Position: The catalog does not list a burn position for this lamp. Follow the fixture manufacturer's instructions.
- Catalog Footnote 4: Life at 14 volts.
- Pack Size: This order code is the 60-pack bulk code.
Safety & Installation Guidelines
- Qualified Installation: Install by qualified personnel following fixture and site procedures.
- Disconnect Power: De-energize circuits before installing or removing the lamp.
- Use Correct Replacement: Do not substitute lamps unless the fixture manufacturer permits it.
- Allow Cooling: Let the lamp and fixture cool before handling.
GE Warning and Caution Notice 307
- WARNING – Pressurized lamp—unexpected rupture may cause injury, fire, or property damage: Do not use lamp if outer glass is scratched or broken; Dispose of lamp in a closed container.
