Product Overview

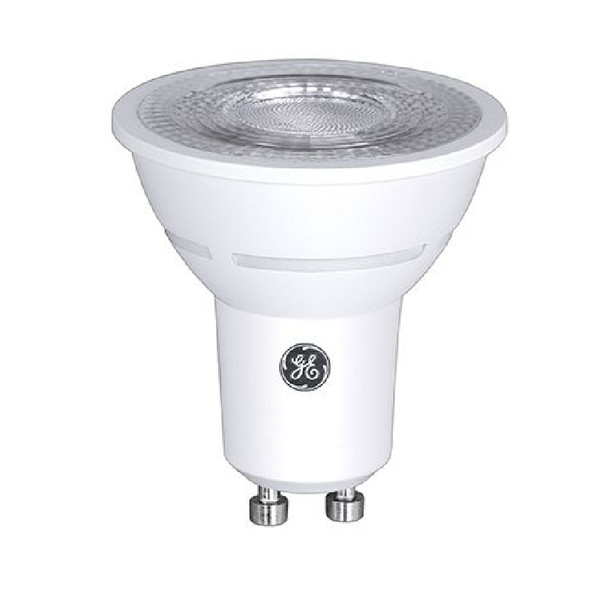

GE 93305605 (LED5D/GU10W830/35) — 5.5W LED GU10 Directional Lamp, 3000K, 35°, 50W Halogen Equivalent
The GE 93305605 (LED5D/GU10W830/35) is a 5.5-watt LED GU10 directional lamp from GE Current, built with an MR16-style reflector shape on a GU10 twist-lock base for recessed, accent, and general downlighting applications. It delivers 500 lumens at 3000K with 80 CRI, a 35° beam angle, and replaces up to a 50W halogen GU10/MR16 lamp. Dimmable. Damp location rated. Verify pack quantity and fixture fit before ordering.
|
Wattage
5.5W
Replaces 50W
|
Lumens
500 lm
91 LPW
|
Color Temp
3000K
CRI 80
|
Beam
35° Flood
GU10 Base
|
Rated Life
25,000 hrs
3-Year Warranty
|
Technical Specifications
| Brand | GE Current |
| Order Code (SKU) | 93305605 |
| Manufacturer Part Number | LED5D/GU10W830/35-6PK |
| Bulb Shape | MR16 (reflector style) |
| Base Type | GU10 (twist-lock) |
| Input Voltage | 120V |
| Wattage | 5.5W |
| Halogen Equivalent | Up to 50W |
| Initial Lumens | 500 lm |
| Efficacy | 91 LPW |
| CRI | 80 |
| Color Temperature | 3000K |
| Beam Angle | 35° (Flood) |
| Dimmable | Yes |
| Rated Life | 25,000 hours |
| Operating Temperature | -20°C to 40°C (-4°F to 104°F) |
| Maximum Overall Length (MOL) | 2.1" |
| Location Rating | Damp |
| Safety Listing | cULus |
| Standard Pack Quantity | 24 |
| UPC | 662049524437 |
| Warranty | 3-year limited warranty |
Product Overview
The GE 93305605 is a 5.5W LED GU10 lamp with an MR16-style reflector, designed as a direct replacement for a 50W halogen GU10/MR16 lamp. It delivers 500 lumens at 3000K with a 35° flood beam for broad, even accent and downlighting coverage.
This lamp is dimmable and rated for damp locations, with a GU10 twist-lock base that is not interchangeable with standard E26 medium-base or GU5.3 pin-base sockets. It is cULus Listed.
Compatible Applications
- Recessed and accent lighting
- Hospitality and retail lighting
- Architectural and general downlighting
Before Ordering — Verify
- Base Type: This is a GU10 twist-lock base, not GU5.3 pin-base or E26 medium — confirm the fixture socket matches before ordering.
- Pack Quantity: The manufacturer part number includes a “-6PK” suffix, but the spec sheet’s Standard Pack Quantity is listed as 24 — confirm actual case quantity with GE/Current before placing a large order.
- Dimmer Compatibility: Confirm compatibility with the dimmer model being used.
- Voltage: Confirm the application is 120V.
- Location Rating: Damp rated — not for direct wet/outdoor exposure unless the fixture itself is suitably rated.
Safety and Handling Guidelines
- Disconnect power before installing or replacing this lamp.
- Environment: Suitable for damp locations only.
- Operating Temperature: Keep within the rated -20°C to 40°C (-4°F to 104°F) range for full-life performance.
- Code Compliance: Install and operate in accordance with the National Electrical Code (NEC) and all applicable local codes.
Compliance
- cULus Listed.
- Damp location rated.
- 3-year limited warranty.
Ordering Information
- Brand: GE Current
- Order Code (SKU): 93305605
- Manufacturer Part Number: LED5D/GU10W830/35-6PK
- UPC: 662049524437
- Wattage / CCT: 5.5W / 3000K
- Base: GU10
- Equivalent: 50W Halogen
- Packaging: 24 per pack (per spec sheet; verify against part number’s “6PK” designation).
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
