Product Overview

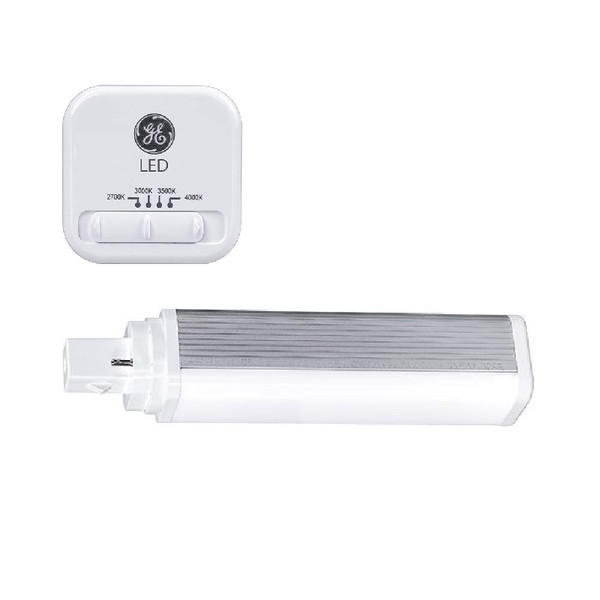

GE LED11G24D-H/8SC-4PK 93300090 — 10.5W LED Plug-In 2-Pin Lamp, Horizontal, G24d Base, Selectable CCT
The GE LED11G24D-H/8SC-4PK (Order Code 93300090) is a 10.5W LED plug-in 2-pin lamp from GE/Current Lighting Solutions, designed as a Type A direct replacement for 13W, 18W, or 26W compact fluorescent (CFL) plug-in lamps operating on an existing magnetic or electronic ballast. This horizontal-orientation lamp uses a G24d 2-pin base, offers selectable color temperature across 2700K, 3000K, 3500K, and 4000K, an 80 CRI, 1,100 initial lumens, 105 LPW efficacy, and a rated life of 50,000 hours. This lamp is non-dimmable and rated for Damp locations. cULus certified. Sold as a 4-pack, 24 packs per carton. Verify ballast compatibility and lamp orientation before ordering.
|
Wattage
10.5W
105 LPW
|
Lumens
1,100 lm
Initial Output
|
Selectable Color Temp
2700K - 4000K
CRI 80
|
Replaces
13W/18W/26W CFL
Type A, Ballast-Dependent
|
Rated Life
50,000 hrs
5-Year Warranty
|
Technical Specifications
| Brand | GE / Current Lighting Solutions |
| GE Order Code / SKU | 93300090 |
| Manufacturer Part Number | LED11G24D-H/8SC |
| UL Type | Type A (Ballast-Dependent) |
| Bulb Shape | Horizontal Plug-In |
| Base Type | G24d (2-Pin) |
| Input Voltage | 120V |
| Wattage | 10.5W |
| Wattage Replacement | 13W / 18W / 26W CFL |
| Initial Lumens | 1,100 lm |
| Efficacy | 105 LPW |
| Selectable Color Temperature | 2700K / 3000K / 3500K / 4000K |
| CRI | 80 |
| Rated Life | 50,000 hours |
| Dimmable | No — this lamp does not support dimming. |
| Max Overall Length (MOL) | 6.6" |
| Operating Temperature Range | -20°C to 40°C |
| Location Rating | Damp |
| Safety Certifications | cULus |
| Mercury / Lead Content | Contains no mercury — LED technology (replaces mercury-containing CFL) |
| Pack Configuration | 4-pack |
| Carton Quantity | 24 (Standard Pack Quantity, packs per carton) |
| UPC | 662049523942 |
| Warranty | 5-year limited warranty |
Product Overview
The GE LED11G24D-H/8SC-4PK is a Type A LED plug-in lamp designed as a direct replacement for horizontal-orientation 13W, 18W, or 26W compact fluorescent (CFL) plug-in lamps. As a Type A lamp, it operates using the fixture's existing CFL ballast rather than requiring the fixture to be rewired for ballast bypass — it is designed to be compatible with common magnetic and electronic CFL ballasts already installed in the fixture, simplifying replacement.
This lamp offers selectable color temperature across four settings (2700K, 3000K, 3500K, and 4000K), letting one SKU cover a range of color temperature needs without separate inventory for each option. At 1,100 initial lumens, 80 CRI, and 105 LPW efficacy, it provides comparable or improved light output relative to the CFL lamps it replaces, with a substantially longer 50,000-hour rated life and no mercury content. This lamp is non-dimmable.
Compatible Applications
- Horizontal plug-in CFL fixture retrofits — Direct Type A replacement for 13W, 18W, or 26W horizontal CFL lamps using the existing ballast.
- Downlights, wall sconces, and surface-mount fixtures — Common applications for G24d 2-pin horizontal plug-in lamps.
- Commercial and residential retrofit projects — Reducing maintenance and eliminating mercury content versus legacy CFL lamps.
Before Ordering — Verify
- Base Type: Confirm your fixture uses a G24d 2-pin socket.
- Lamp Orientation: This is a horizontal-orientation lamp — confirm your fixture is designed for horizontal lamp mounting, not vertical.
- Ballast Compatibility: As a Type A lamp, confirm the existing CFL ballast is compatible; this lamp operates on the fixture's existing ballast and does not require rewiring.
- Voltage: This lamp is rated for 120V only.
- Dimming: This lamp does not support dimming in any configuration.
- Color Temperature Selection: Confirm desired CCT setting (2700K/3000K/3500K/4000K) before final installation.
- Physical Fit: Confirm 6.6" length fits within your fixture housing.
- Pack Quantity: Sold in 4-packs; minimum order is 24 packs (1 carton).
Safety and Handling Guidelines
- Disconnect power before installing or replacing this lamp.
- Ballast Check: Verify existing ballast type and condition before installation; a failing or incompatible ballast may affect lamp performance.
- No Dimming: Do not attempt to connect this lamp to any dimming control.
- Operating Temperature: Suitable for use in environments between -20°C and 40°C.
- Damp Location Use: Confirm fixture rating matches installation environment.
- This lamp contains no mercury, unlike the CFL lamps it replaces, and requires no special disposal handling.
Compliance
- cULus listed.
- Contains no mercury — standard LED disposal applies; no state mercury shipping restrictions, unlike the mercury-containing CFL lamps this product replaces.
- 5-year limited warranty.
Ordering Information
- Brand: GE / Current Lighting Solutions
- GE Order Code / SKU: 93300090
- Manufacturer Part Number: LED11G24D-H/8SC
- UPC: 662049523942
- Wattage / CCT: 10.5W / Selectable 2700K–4000K
- Base: G24d 2-Pin (Horizontal Plug-In)
- Replaces: 13W / 18W / 26W CFL
- Packaging: 4-pack, 24 packs per carton.
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
