GE LED Plug-In Type A G24q/GX24q Horizontal 9W 4000K - LED9G24Q-H/840

Product Overview

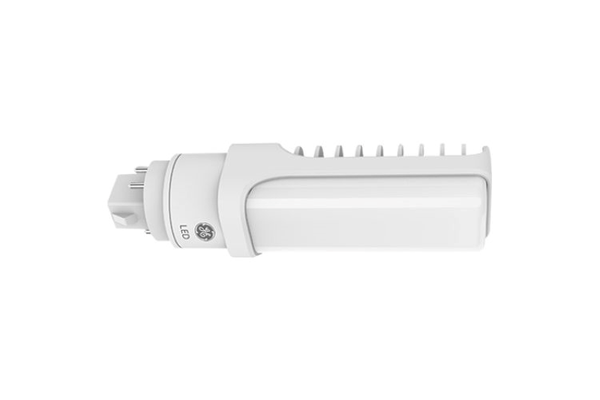

GE LED9G24Q-H/840 33999 — 9W LED Type A Plug-In Lamp, Horizontal, 4000K, G24q/GX24q 4-Pin

The GE LED9G24Q-H/840 (Order Code 33999) is a 9-watt LED Type A plug-in lamp from GE/Current Lighting Solutions, designed as a direct retrofit replacement for 13W, 18W, or 26W pin-based compact fluorescent lamps. This horizontal-orientation lamp operates on a compatible existing electronic CFL ballast — no rewiring or ballast bypass required. With a G24q/GX24q 4-pin base, fixed 4000K cool white color temperature, 80 CRI, 1,200 initial lumens, and a rated life of 50,000 hours (L70), this lamp delivers energy savings and reduced maintenance versus legacy CFL lamps. Damp location rated. Sold 6 per carton (minimum order quantity). Verify ballast compatibility before ordering.

Wattage

13/18/26W CFL Equiv.

Lumens

1,200 lm

Initial Output

Color Temp

4000K

CRI 80, Fixed

Base

G24q/GX24q

4-Pin Horizontal

Rated Life

50,000 hrs

L70 Rating

Technical Specifications

Brand	GE / Current Lighting Solutions
GE Order Code	33999
Manufacturer Part Number	LED9G24Q-H/840
Lamp Family	Type A 4-Pin Plug-In — Fixed CCT
Orientation	Horizontal
Wattage	9W
Base Type	G24q/GX24q (4-Pin)
Initial Lumens	1,200 lm
Color Temperature	4000K (Fixed — not selectable)
CRI	80
CFL Wattage Replacement	13W / 18W / 26W CFL
Rated Life	50,000 hours (L70)
Max Overall Length (MOL)	5.31"
Location Rating	Damp
Ballast Requirement	Requires Electronic Ballast — Fully Enclosed fixture
Dimmable	No
Mercury / Lead Content	Contains no lead or mercury — RoHS compliant
Carton Quantity	6 (minimum order quantity)
Warranty	5 years (limited)

Product Overview

The GE LED9G24Q-H/840 is a Type A 4-pin LED plug-in lamp, meaning it operates directly from an existing compatible electronic CFL ballast — no ballast bypass, rewiring, or new driver installation is required for a qualifying retrofit. This is a fixed-color-temperature model set permanently at 4000K cool white, distinct from GE's SpectraChoice selectable-CCT lamps, making it a simpler, lower-cost option where CCT flexibility isn't needed and a consistent 4000K output is preferred across a project.

At 9W, this lamp uses roughly 50% less energy than the 13–26W CFL lamps it replaces, with a rated life of 50,000 hours (L70) — more than 2.5 times the typical service life of a comparable CFL. The lamp contains no lead or mercury and is RoHS compliant, eliminating the mercury-related disposal restrictions that apply to the CFL lamps it replaces. The horizontal orientation is purpose-built for fixtures that mount the lamp parallel to the ceiling or mounting surface, distinct from vertical-orientation variants in the same product family.

Compatible Applications

Compact fluorescent retrofit projects — Direct replacement for 13W, 18W, or 26W 4-pin CFL lamps in existing horizontal-mount fixtures with compatible electronic ballasts.
Commercial, corridor, and office lighting — CRI 80 and 4000K cool white CCT suit general commercial retrofit applications requiring brighter, more energizing light than warmer color temperatures.
Hospitality lighting — Fixed 4000K provides consistent color temperature across a property without relying on installer CCT selection.
Damp locations — Rated for damp interior or partially protected exterior locations per UL 1993.

Before Ordering — Verify

Ballast Compatibility: This lamp requires a compatible electronic CFL ballast in a fully enclosed fixture. Not all CFL ballasts are compatible — check ballast compatibility at LED.com/LED4pin-compatibility before ordering.
Orientation: Confirm your fixture requires a horizontal orientation lamp — a vertical-orientation version exists in this product family and is not interchangeable for fixtures requiring horizontal mounting.
Existing CFL Wattage: Confirm you are replacing a 13W, 18W, or 26W 4-pin CFL lamp.
Color Temperature: This lamp is fixed at 4000K and is not field-selectable — confirm 4000K is the desired CCT for your application before ordering. If CCT flexibility is needed, GE's SpectraChoice selectable-CCT version is available instead.
Physical Fit: Confirm 5.31" MOL fits within your fixture's lamp compartment.
Carton Quantity: Minimum order quantity is 6 units (1 carton).

Safety and Handling Guidelines

Disconnect power before installing or replacing the lamp.
Fully Enclosed Fixture Required: Install only in a fully enclosed fixture as specified by the manufacturer.
Damp Location Use: Suitable for damp locations per UL 1993; confirm fixture rating matches installation environment.

Compliance

RoHS compliant — contains no lead or mercury. No mercury-related shipping restrictions apply.
Not all product variations in this lamp family are DLC qualified — verify DLC qualification status for this specific order code at qpl.designlights.org/solid-state-lighting if required for your project's utility rebate program.
5-year limited warranty.
