Halco 10307 LWA-P20U2-50 2ft Linear Wraparound LED Luminaire - Traditional Prismatic Lens | 20W | 5000K | 120-277V | 0-10V Dimmable
The Halco 10307 LWA-P20U2-50 is a 2ft Linear Wraparound LED Luminaire designed as a cost-efficient replacement for existing fluorescent wraparound fixtures. It is suitable for commercial, industrial, retail, educational, stairwell, utility, task lighting, and parking garage applications.
This model features a Traditional Prismatic Lens, 20W LED output, 2,466 lm, 5000K color temperature, 120-277VAC universal input, and 0-10V continuous dimming down to 10%.
Length 2ft Footprint |
Wattage 20W LED |
Lumens 2,466 lm Delivered |
CCT 5000K Color |
Voltage 120-277V 0-10V |
Product Overview

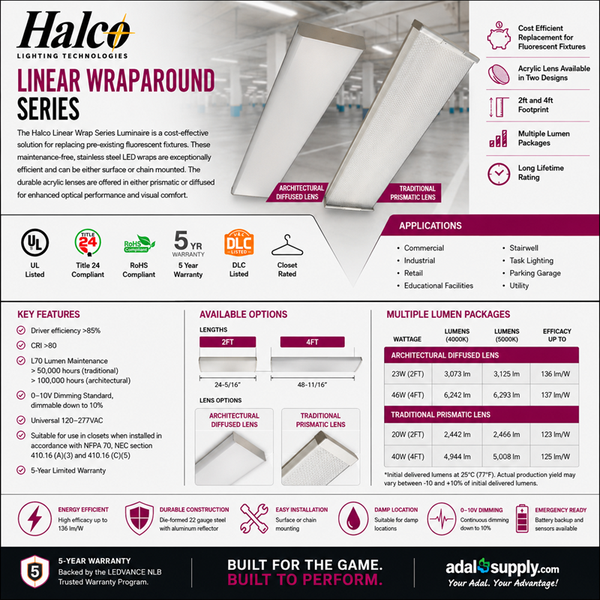

Halco Linear Wraparound luminaires are maintenance-free LED wrap fixtures built with a die-formed steel housing, high-reflectance aluminum reflector, and durable acrylic lens. They can be surface mounted or chain mounted, making them flexible for retrofit and new installation projects.
Lens choice matters: architectural diffused lens models provide enhanced visual comfort and longer L70 lumen maintenance, while traditional prismatic lens models provide a familiar fluorescent-wrap appearance for standard replacement projects.
Technical Specifications
| Brand | Halco Lighting Technologies |
| Series | Linear Wraparound Series |
| Item Number | 10307 |
| Product Code | LWA-P20U2-50 |
| Lens Type | Traditional Prismatic Lens |
| Length | 2ft |
| Rated Wattage | 20W |
| Delivered Lumens | 2,466 lm |
| Efficacy | 123 lm/W |
| CCT | 5000K |
| CRI | >80, R9 >0 |
| Input Voltage | 120-277VAC |
| Dimming | 0-10V Continuous Dimming, dimmable down to 10% |
| Power Factor | >0.9 |
| THD | <20% |
| L70 Lifetime | >50,000 hours |
| Fixture Dimensions | 24-5/16 in L x 6-9/16 in W x 2-9/16 in H |
| Fixture Weight | 5.1 lbs |
| Construction | Die-formed 22 gauge steel with aluminum reflector and high-reflectance powder coat |
| Lens Material | Acrylic lens |
| Mounting | Surface mount or chain mount |
| Location Rating | Damp Location |
| Closet Rating | Suitable for closets when installed in accordance with NFPA 70 / NEC 410.16 |
| Certifications | UL Listed, DLC 5.1 Standard, RoHS Compliant, Title 24, Closet Rated |
| Warranty | 5 Year Limited Warranty |
| HS Tariff Code | 9405.11.00.00 |
Key Features
- Cost-efficient LED replacement for fluorescent wraparound fixtures.
- Available in 2ft and 4ft footprints.
- Traditional Prismatic Lens for project-specific optical performance.
- 0-10V dimming standard for commercial control systems.
- Universal 120-277VAC input supports common commercial voltages.
- DLC listed and backed by a 5-year limited warranty.
Compatible Applications
- Commercial offices and corridors
- Industrial and utility spaces
- Retail and educational facilities
- Stairwells and task lighting
- Parking garages and damp-location applications
- Fluorescent wraparound fixture replacements
Before Ordering Verify
- Exact Item: Confirm Halco 10307 / LWA-P20U2-50.
- Lens Type: Confirm Traditional Prismatic Lens is the correct lens for the project.
- Fixture Length: Confirm the required footprint is 2ft.
- Color Temperature: Confirm 5000K meets the space requirements.
- Dimming: Confirm the control system is compatible with 0-10V dimming.
- Mounting: Confirm surface or chain mounting requirements and accessories.
Accessories
Available accessories include joiner bracket, emergency battery backup, aircraft cable, PIR motion sensor, microwave motion sensor, and microwave sensor mounting bracket.
