Product Overview

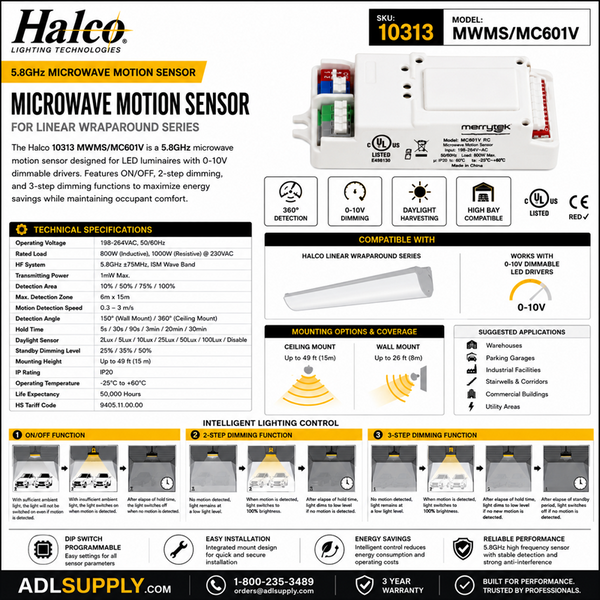

Halco 10313 MWMS/MC601V Microwave Motion Sensor for LED Fixtures
The Halco 10313 MWMS/MC601V is a line-voltage 5.8GHz Microwave Motion Sensor designed for use with compatible LED luminaires and 0-10V dimming systems. This intelligent sensor provides ON/OFF control, 2-Step Dimming, and 3-Step Dimming functionality to improve energy savings while maintaining occupant comfort.
Featuring adjustable detection area, hold time, daylight sensor settings, and standby dimming levels, the MWMS/MC601V is ideal for warehouses, parking garages, industrial facilities, stairwells, utility areas, and commercial lighting applications.
Key Features
- 5.8GHz high-frequency microwave motion detection technology
- ON/OFF, 2-step dimming, and 3-step dimming operation
- Compatible with 1-10V dimmable LED drivers
- Adjustable detection area from 10% to 100%
- Adjustable hold times from 5 seconds to 30 minutes
- Selectable daylight harvesting settings
- Adjustable standby dimming levels
- Suitable for high mounting heights up to 49 feet (15m)
- DIP-switch programmable settings
- UL Listed
Technical Specifications
| Brand | Halco Lighting Technologies |
| Item Number | 10313 |
| Model | MWMS/MC601V |
| Product Type | Microwave Motion Sensor |
| Operating Voltage | 198-264VAC, 50/60Hz |
| Microwave Frequency | 5.8GHz ±75MHz |
| Detection Technology | High Frequency Microwave |
| Detection Area | 10%, 50%, 75%, 100% |
| Hold Time | 5s / 30s / 90s / 3min / 20min / 30min |
| Daylight Sensor Settings | 2Lux, 5Lux, 10Lux, 25Lux, 50Lux, 100Lux, Disable |
| Standby Dimming Level | 25%, 35%, 50% |
| Detection Angle | 150° Wall Mount / 360° Ceiling Mount |
| Maximum Detection Zone | 6m x 15m |
| Motion Detection Speed | 0.3 - 3 m/s |
| IP Rating | IP20 |
| Operating Temperature | -25°C to +60°C |
| Rated Load | 800W Inductive / 1000W Resistive @ 230VAC |
| Life Expectancy | 50,000 Hours |
| HS Tariff Code | 9405.11.00.00 |
Applications
- Parking Garages
- Warehouses
- Industrial Facilities
- Storage Areas
- Commercial Buildings
- Stairwells & Corridors
- Utility Areas
Before Ordering Verify
- Confirm compatibility with the fixture being installed.
- Verify the fixture supports 0-10V dimming if dimming functions will be used.
- Confirm sensor mounting location and coverage requirements.
- Review required detection area and daylight harvesting settings.
Wholesale & Project Support
ADL Supply supports contractors, facility managers, maintenance departments, and commercial lighting projects with fixture compatibility assistance, project quotations, and volume pricing.
For availability, project pricing, or application assistance, contact ADL Supply at 1-800-235-3489.
