Product Overview

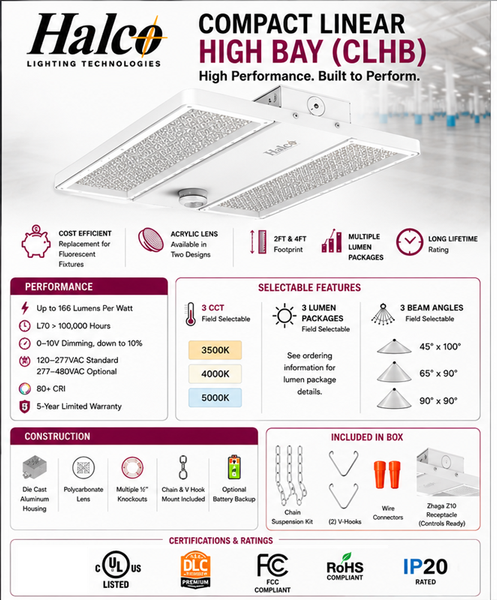

Halco 36162 CLHB-3-LS-CS-U ProLED Select Compact Linear High Bay - 180/200/220W Selectable, 28,300/30,800/33,300 LM, 3500K/4000K/5000K, 120-277VAC
The Halco 36162 CLHB-3-LS-CS-U is a ProLED Select Compact Linear High Bay fixture designed for commercial and industrial lighting applications. This CLHB series fixture offers field-selectable wattage, selectable color temperature, and adjustable beam angle so contractors and facility managers can fine tune light output during installation.
Configuration: Universal voltage 120-277VAC with suspended chain mount.
Key Features
- Compact linear high bay design helps reduce shipping costs and installation time.
- Selectable color temperatures: 3500K, 4000K, and 5000K.
- Selectable wattage: 180/200/220W.
- Selectable delivered lumen package: 28,300/30,800/33,300 lumens.
- Field-selectable beam angle: 45° x 100°, 65° x 90°, or 90° x 90°.
- Integrated Zhaga Z10 receptacle for compatible standalone or Bluetooth control solutions.
- 0-10V dimming for lighting control flexibility.
- Die-cast aluminum housing with polycarbonate lens.
- Chain and V-hook mount included.
- Optional wire guard, pendant mount, surface mount, battery backup, high-voltage driver, and sensor accessories available separately.
Technical Specifications
| Brand | Halco Lighting Technologies |
| Product SKU | 36162 |
| Product Code | CLHB-3-LS-CS-U |
| Series | ProLED Select Compact Linear High Bay Series |
| Fixture Size | CLHB-3 |
| Selectable Wattage | 180/200/220W |
| Selectable Lumens | 28,300/30,800/33,300 LM |
| Selectable CCT | 3500K / 4000K / 5000K |
| CRI | 80+ CRI |
| Dimming | 0-10VDC |
| Input Voltage | 120-277VAC |
| Beam Angle | 45° x 100° / 65° x 90° / 90° x 90° selectable |
| L70 Lifetime | >100,000 hours |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
| Housing | Die-cast aluminum |
| Lens | Polycarbonate lens |
| Mounting | Chain and V-hook mount included |
| Ratings | UL, cUL, DLC 6.0 Premium, FCC, RoHS, IP20, Damp Location |
| Warranty | 5 Year Limited Warranty |
| HS Tariff Code | 9405.11.00.00 |
Applications
- Warehouses
- Gymnasiums
- Retail spaces
- Industrial facilities
- Large indoor commercial environments
Before Ordering Verify
- Confirm required wattage/lumen package.
- Confirm input voltage before ordering.
- Confirm mounting method and whether accessories are required.
- Controls, accessories, battery backup, and high-voltage drivers are sold separately unless specified in the product configuration.
Wholesale & Project Support
ADL Supply supports contractors, facility managers, maintenance departments, and commercial buyers with product selection, project quoting, and volume order support.
For availability, project pricing, or help confirming the correct Halco CLHB fixture, contact ADL Supply at 1-800-235-3489.
Warranty Information
5 Year Limited Warranty
