Product Overview
Halco 89211 CDL-6-LS-CS-WH-DDV 6in Retrofit Commercial LED Downlight | Lumen & CCT Selectable | 120-277V | Dual Dimming

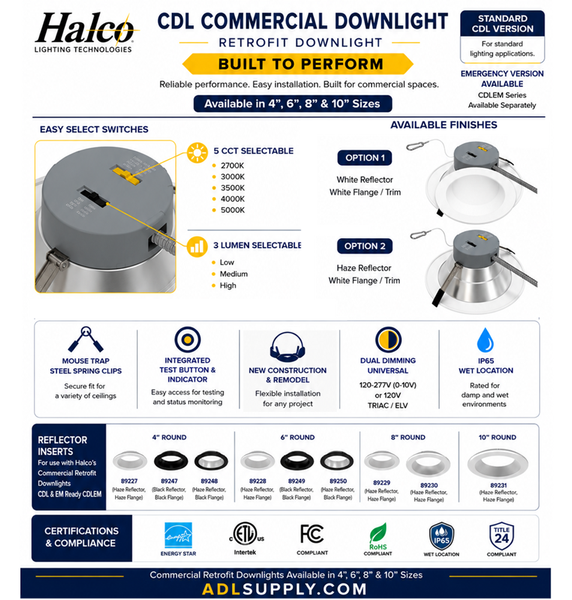

The Halco 89211 CDL-6-LS-CS-WH-DDV is a 6in Retrofit Commercial Downlight designed for commercial lighting retrofit projects where field-adjustable lumen output, selectable CCT, and flexible dimming are required.
This fixture provides 10W / 17W / 21W Selectable, 1000 / 1800 / 2500 lm, 2700K / 3000K / 3500K / 4000K / 5000K selectable color temperature, 90+ CRI, and a 120-277V dual dimming driver compatible with 0-10V or 120V TRIAC/ELV dimming protocols.
|
Wattage
10W / 17W / 21W
Selectable
|
Lumens
1000 / 1800 / 2500 lm
Delivered
|
Color Temp
5 CCT
2700K-5000K
|
Voltage
120-277V
Dual dimming
|
Rated Life
50,000 hrs
L70
|
Technical Specifications
| Brand | Halco Lighting Technologies |
| Series / Family | Retrofit Commercial Downlight |
| Item Number | 89211 |
| Product Code | CDL-6-LS-CS-WH-DDV |
| Fixture Size | 6in |
| Selectable Wattage | 10W / 17W / 21W Selectable |
| Delivered Lumens | 1000 / 1800 / 2500 lm |
| Equivalent Watts | 150W |
| Selectable CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ |
| Input Voltage | 120-277V, 50/60 Hz |
| Dimming | Dual dimming: 0-10V or 120V TRIAC/ELV |
| Beam Angle | 80° ± 10° |
| Housing / Reflector | White Reflector, White Flange |
| Lens | Diffused, textured lens |
| Environment | IC, Air Tight, Wet Location, IP65 |
| Certifications | Energy Star Downlights V1.0, ETL Listed and Classified, RoHS, FCC, CA Title 24 Compliant |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Weight | 1.5 lbs |
| Approximate Dimensions | 7-3/8 in OD x 4-1/16 in H |
| Aperture | 4-1/4 in |
| Energy Star Unique Product ID | 4005957 |
| Warranty | 5 Year Limited Warranty |
| HS Tariff Code | 9405.11.00.00 |
Product Overview
Halco Retrofit Commercial Downlights are built to simplify commercial retrofit work by allowing the contractor to select both color temperature and lumen output before or after installation. The integral driver supports either 0-10V dimming or ELV/Triac phase cut dimming, reducing the need to match separate dimming systems during replacement projects.
The fixture includes robust universal spring clips, a diffused textured lens, and a commercial reflector/flange finish. It is suitable for offices, commercial buildings, maintenance facilities, K-12 schools, colleges, universities, and big box retail stores.
Before Ordering — Verify
- Confirm the required fixture size is 6in.
- Confirm the project requires 10W / 17W / 21W Selectable and 1000 / 1800 / 2500 lm.
- Confirm selectable CCT range 2700K through 5000K meets the lighting specification.
- Confirm existing controls use 0-10V, TRIAC, or ELV dimming.
- Confirm ceiling opening, reflector finish, and flange finish before ordering.
- Use CDLEM emergency-ready versions if an integral emergency backup solution is required.
Compliance
- Energy Star Downlights V1.0
- ETL Listed and Classified
- RoHS Compliant
- IP65
- Wet Location Rated
- FCC Compliant
- CA Title 24 Compliant
Ordering Information
- Brand: Halco Lighting Technologies
- Item Number: 89211
- Product Code: CDL-6-LS-CS-WH-DDV
- Fixture Size: 6in
- Finish: White Reflector, White Flange
- Packaging: Sold individually unless otherwise noted.
For wholesale pricing, bulk availability, or help confirming the correct Halco retrofit commercial downlight for your project, contact ADL Supply at 1-800-235-3489.
