Product Overview
Halco 96110 BBU-D7-20WCP - 20W Emergency Battery Backup for Linear High Bays
The Halco 96110 BBU-D7-20WCP is a UL 924 listed emergency LED driver with an integral LiFePO4 battery backup, purpose-built for Halco CLHB Compact Linear High Bay fixtures. It provides 90 minutes of constant-current emergency output during a power outage, keeping egress paths illuminated in compliance with NFPA 101 and NFPA 70 life safety codes. The discrete battery and driver are housed in a slim, painted steel enclosure with a push-button illuminated test switch for easy code-required testing.
Key Features
- 20W constant-current emergency output power
- 90-minute minimum emergency discharge time
- Recharges to full capacity in under 24 hours

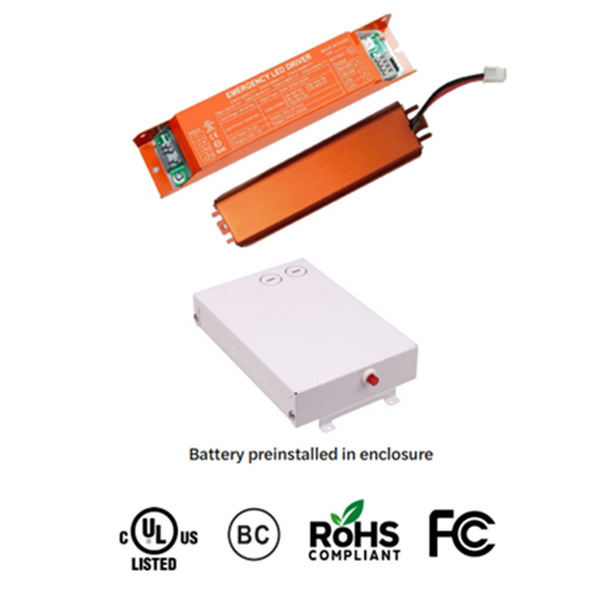

- Maintenance-free LiFePO4 battery, discrete configuration, preinstalled in enclosure
- Push-button illuminated test switch with self-diagnostics
- Slim profile, painted steel housing; field or factory installable
- Built-in protections: input overcurrent, output overcharge, battery over-discharge, output short circuit
- Designed to work with compatible Halco CLHB Compact Linear High Bay fixtures
Technical Specifications
| Brand | Halco Lighting Technologies |
| Product SKU | 96110 |
| Product Code | BBU-D7-20WCP |
| Description | Battery Backup, 20W output power, 90-minute backup, integral enclosure, 7in constant power for linear high bays; works with CLHB |
| Housing | Painted steel, slim profile |
| Input Power | 7 Watts |
| Input Voltage | 100-277 VAC |
| Input Current | 100mA Max |
| Input Frequency | 50/60 Hz |
| Emergency Output Power | 20 Watts |
| Output Voltage | 25-48 VDC |
| Output Type | Constant Current |
| Wiring Configuration | Push-in connector |
| Test Switch Type | Push button, illuminated |
| Special Feature | Self-diagnostics |
| Battery Chemistry | Maintenance-free LiFePO4 |
| Battery Configuration | Discrete, preinstalled in enclosure |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Discharge Time | >90 Minutes |
| Recharge Time | <24 Hours |
| Protections | Input overcurrent; output overcharge; battery over-discharge; output short circuit |
| Environment | Dry Location Listed |
| Field Installable | Yes |
| Warranty | 3 Year |
| Listings & Compliance | UL 924 Listed, CEC Title 20 Compliant, NFPA 101 & NFPA 70, FCC and RoHS Compliant |
| Compatible Fixture Types | Linear High Bays |
| Compatible Halco Series | CLHB |
Dimensions
- Enclosure Box: 8-1/4" x 5-1/8" x 1-13/16"
- Driver: 7-3/8" x 1-1/2" (7-1/8" mounting span)
- Battery: 5-3/4" x 2-3/4"
How It Works
- Red LED ON – Battery is discharging (emergency mode)
- Red LED FLASHING – Low battery power
- Red LED OFF – Discharge complete
- When AC power is restored, the driver returns to normal operation and recharges automatically
Before Ordering Verify
- Confirm the exact Halco CLHB fixture model being used
- Confirm required quantity per fixture or per project
- Special-order accessories may not be returnable
Safety and Handling
This is life safety equipment. All emergency lighting for path of egress must be maintained, serviced, and tested in accordance with all applicable National Fire Protection Association (NFPA) and local codes. Failure to perform required maintenance, service, or testing could jeopardize occupant safety and will void all warranties.
For help confirming the correct Halco CLHB accessory for your fixture, contact ADL Supply at 1-800-235-3489.
