Halco HiLED85S-850-EX39 LED HID Filament Lamp | 60/68/85W (field-selectable) | 5000K

Product Overview

Halco HiLED85S-850-EX39 84909 — 60/68/85W (field-selectable) LED HID Filament Lamp, ED37 EX39/E39 (Mogul), 5000K, 11,700-16,500 lm (selectable: 11700/13200/16500) — Replaces 400W HID

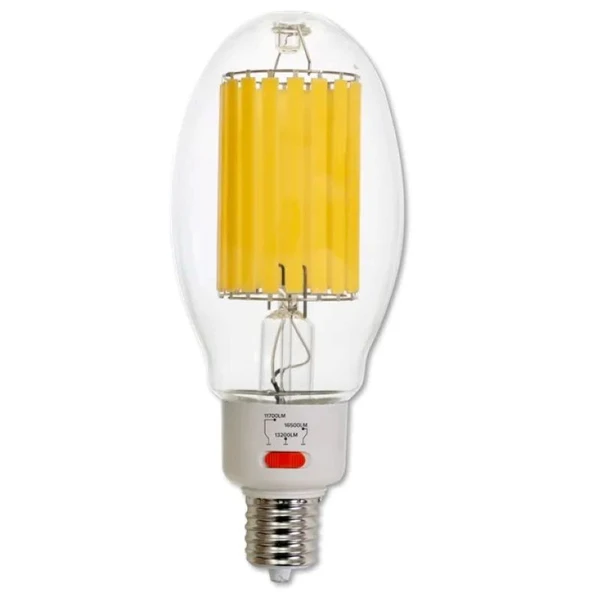

The Halco HiLED85S-850-EX39 (SKU 84909) is a Type B ballast-bypass LED filament lamp engineered to directly replace a 400W HID lamp. Built on a durable full-glass ED37 bulb with a EX39/E39 (Mogul) base, it uses high-power LED filament technology to reproduce the look, 360° light distribution, and omnidirectional beam pattern of a traditional HID lamp, so it works with existing fixture reflector optics. Output is field-selectable across 60/68/85W, delivering 11,700-16,500 lm (selectable: 11700/13200/16500). Rated 5000K with CRI >80, this lamp is ETL wet-location listed, DLC 5.1 qualified, and carries a 5 Years limited warranty. The existing fixture must be rewired to bypass the ballast before installing this lamp.

WATTAGE

60/68/85W (field-selectable)

Replaces 400W HID

LUMENS

11,700-16,500 lm

195/194/194 lm/W

COLOR TEMP

5000K

CRI >80

BASE

EX39/E39 (Mogul)

ED37

RATED LIFE

>50,000h

5 Years Warranty

Technical Specifications

Brand	Halco Lighting Technologies
Halco Product Code	HiLED85S-850-EX39
Halco Product SKU	84909
Series	HiLED (LED HID Filament Lamp)
Ballast Type	Type B Ballast Bypass (no ballast required)
Bulb Shape	ED37
Base Type	EX39/E39 (Mogul)
Input Voltage	120-277V
Wattage	60/68/85W (field-selectable)
Equivalent Wattage (HID Replaced)	400W
Delivered Lumens	11,700-16,500 lm (selectable: 11700/13200/16500)
Efficacy	195/194/194 lm/W
Color Temperature (CCT)	5000K
Color Rendering Index (CRI)	>80
Beam Angle	360°
L70 Rated Life	>50,000 hours
Power Factor	0.9
Dimmable	No
Lens	Glass
Operating Temperature Range	-30°C to 45°C
Diameter	4-3/4"
Maximum Overall Length (MOL)	11-1/2"
Weight	1.57 lbs
Operating Position	Universal
Frequency	50/60Hz
Environment Rating	Wet Location
Listings	cETLus, DLC 5.1 Standard, FCC, RoHS compliant; Wet Location Rated
DLC Product ID	S-Z4W15P
Warranty	5 Years Limited Warranty

Product Overview

The Halco HiLED85S-850-EX39 is part of Halco's HiLED LED HID Filament Lamp series, a Type B ballast-bypass line built to replace traditional HID (metal halide/HPS) lamps with LED filament technology housed in a clear, full-glass envelope. Because the fixture's existing ballast is bypassed entirely, this lamp draws power directly from the 120-277V line, cutting both energy use and the maintenance burden of a failing ballast. This model's output is field-selectable, so one SKU covers the 60/68/85W wattage range and lets an installer dial in the equivalent of the 400W HID lamp it's replacing.

Rated >50,000 hours to L70 with a 5 Years limited warranty, it carries a 360° beam angle to match the omnidirectional distribution of the HID lamp it replaces, and is ETL listed for wet locations, plus DLC 5.1 Standard qualified for utility rebate eligibility (verify current listing status before ordering for a rebate program).

Compatible Applications

Office parks and exterior building lighting.
Commercial buildings and commercial maintenance facilities.
Self storage facilities.
K-12 schools and higher education campuses.
Cargo bays and loading docks.
Any fixture currently running a 400W HID (metal halide or HPS) lamp where the ballast can be bypassed.

Before Ordering – Verify

Ballast bypass rewiring is required. This is a Type B lamp — the existing ballast must be disconnected/bypassed before installing it; it is not a plug-and-play ballast-compatible retrofit.
Confirm the fixture currently runs a 400W HID lamp before ordering — this lamp is sized and rated as that lamp's replacement.
Confirm the fixture uses a EX39/E39 (Mogul) socket.
Confirm the 5000K color temperature is correct for the application — Halco also offers this bulb shape/wattage in other CCTs.
Confirm the intended output level before wiring — this model's lumen output is field-selectable (selectable: 11700/13200/16500).
Not dimmable. Do not connect to a dimming circuit or control.
Verify diameter (4-3/4") and length (11-1/2") clear the fixture housing.
If this purchase is for a utility rebate program, verify the DLC QPL listing is still current at designlights.org before ordering.

Safety and Handling Guidelines

Disconnect power at the breaker before installing or servicing.
Ballast bypass wiring should be performed by a qualified electrician familiar with rewiring HID fixtures for Type B LED lamp operation.
Do not connect to a dimmer or other lighting control — this lamp is not dimmable.
Allow the fixture to cool before handling after operation.
Do not install a lamp with cracked, loose, or otherwise damaged glass.
This is an LED lamp and contains no mercury; dispose of/recycle per local electronics-waste regulations.

Compliance

Manufactured by Halco Lighting Technologies.
ETL listed, rated for Wet Locations.
DLC 5.1 Standard qualified (EX39 base only) — verify current listing at designlights.org.
RoHS compliant.
FCC Part 15 compliant.
Type B ballast bypass — not compatible with an existing HID ballast.
