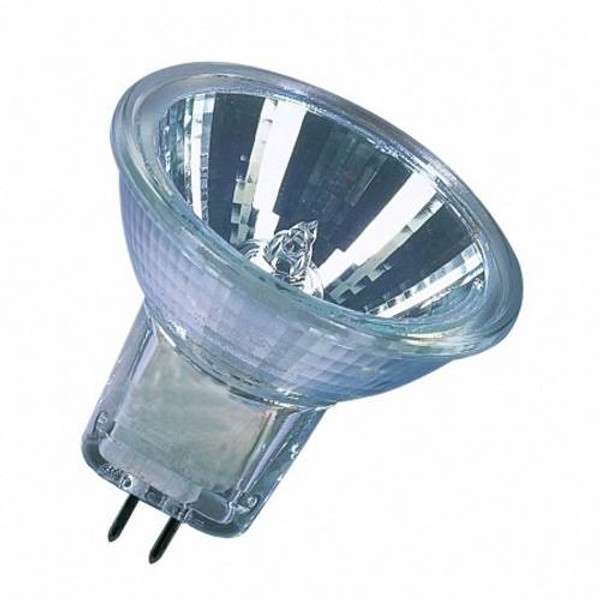

HIKARI HIGUCHI FTB | MR11 20W 12V Tungsten Halogen 10° Narrow Spot Closed Face Lamp

The Hikari Higuchi FTB is a commercial-grade **20W low-voltage tungsten halogen reflector lamp** engineered for precision landscape accenting, museum display cases, and high-end residential track lighting. Outfitted with a standard **G4 miniature 2-pin base** and a compact **MR11 dichotomous glass reflector geometry**, this low-voltage bulb projects an ultra-focused, sharp **10° Narrow Spot** beam. Utilizing a robust **C-6 filament** structure paired with an integrated **Clear Glass Cover**, it yields a perfect **100 CRI** color accuracy rating in a warm, inviting **2900K soft white** spectrum. Rated for a **2,000-hour average service lifespan**, its closed-face design protects the inner capsule from dust accumulation, moisture exposure, and handling oils, making it ideal for compact decorative downlights and fine accent applications.

Precision MR11 Faceted Optics and Uncompromised Color Fidelity

Hikari Higuchi MR11 halogen lamps combine crisp halogen brilliance with a specialized multi-faceted glass reflector designed to direct light forward while reducing rear spill-light emissions. The **10° narrow spot beam pattern** isolates specific targets with clean delineation, making it highly effective for feature accents, retail display cases, and art gallery downlights where space is limited. Built with an elite **100 CRI baseline**, this lamp ensures rich textures, warm wood grains, and vibrant products look completely natural with zero color distortion. Its factory-sealed **clear glass front cover lens** adds a layer of physical safety, making it suitable for standard open track fixtures and landscape wells.

• Closed-Face Glass Lens Shield: The integrated front glass protects the internal reflector facings from gathering dust, fingerprints, or environmental film, preserving center-beam candlepower over time.
• Universal Burning Orientation: Engineered to operate reliably at any physical angle or tilt direction without sacrificing internal gas cycles, filament stability, or lifespan boundaries.
• Smooth Analog Dimming: Responds natively and smoothly to standard low-voltage analog dimming networks, shifting to a comforting, warmer amber glow when powered down.
• Ultra-Compact Profile: Squeezes a high-intensity accent punch into a tiny 1.38-inch diameter frame, making it the standard choice for subtle, low-profile architectural details.

Comprehensive Technical Specifications

• Brand: Hikari Higuchi
• ANSI Standard Code: FTB
• Technology Type: Tungsten Halogen
• Reflector Profile: MR11 (Faceted Glass Reflector, 11-Eighths Inch / 35mm Diameter)
• Reflector Face Class: Closed Face (Integrated Front Lens Cover)
• Wattage: 20W
• Operating Voltage: 12V (Requires low-voltage step-down transformer)
• Base Type: G4 Miniature Bi-Pin (4mm Pin Center-to-Center Spacing)
• Beam Angle Spread: 10° Narrow Spot (SP)
• Color Temperature: 2900K (Warm Soft White Halogen Spectrum)
• Color Rendering Index (CRI): 100 (Maximum Color Accuracy Baseline)
• Filament Configuration: C-6 (Transverse / Linear Core Layout)
• Average Rated Lifespan: 2,000 Hours
• Maximum Overall Length (MOL): 1.42 Inches (36 mm)
• Maximum Bulb Diameter (DIA): 1.38 Inches (35 mm)
• Operating Burning Position: Universal
• Country of Manufacture: China

System Integration, Wiring Guidelines & Handling Protocols

• Low-Voltage Power Requirements: This lamp operates strictly on a low-voltage **12V power line**. Connecting this module directly to 120V or 277V building mainlines will cause immediate, explosive filament failure. It must interface through an electronic or magnetic step-down lighting transformer.
• Base Interface Alignment: Ensure the G4 miniature straight pins are completely pushed into the female lampholder contact springs. A loose connection causes high-resistance heating, which can melt the socket or cause the lamp to flicker prematurely.
• Handling Guidelines: While the front face is sealed with a protective glass lens, avoid touching the side or rear glass body with bare fingers. The natural skin oils create localized thermal hotspots on the glass shell, which can lead to stress-cracking or early failure. Use a clean cloth or a piece of plastic wrapping when handling.

Recommended Architectural & Display Applications

• Museum & Curio Cabinets: Delivers an ultra-focused spotlight onto fine collectibles, jewelry pieces, and delicate artifacts without causing spectral color shifts.
• Retail Accent Display Tracks: Perfect for accenting boutique clothing racks, premium retail wall niches, and targeted point-of-sale merchandise.
• Residential Low-Voltage Recessed Canopies: Ideal for accent alcoves, artwork frame lights, and subtle low-profile downlighting inside modern kitchens and living spaces.
• Landscape Highlight Luminaires: Highly suited for compact exterior architectural spot housings, garden well pathways, and uplighting focal plants when properly sealed against moisture.
