Halco 107524 MR16FNV/L/HX

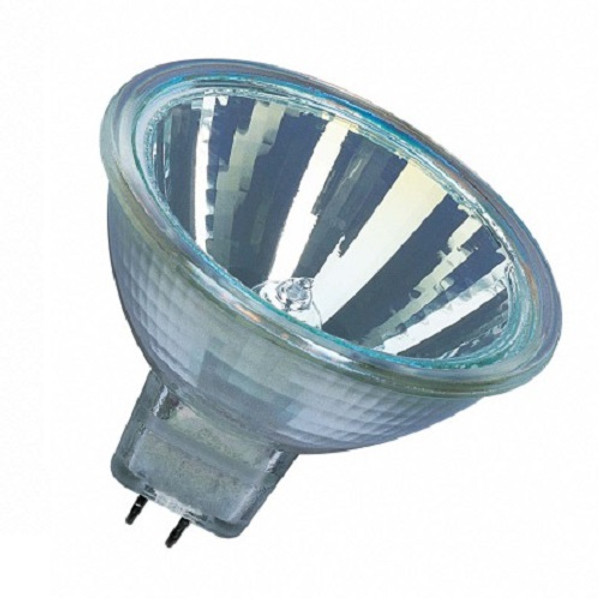

The Halco 107038 Prism FNV/CL/H/AL/60 50W 12V MR16 Light Bulb is a premium, long-life low-voltage halogen-xenon reflector lamp engineered for precise commercial accent and display applications. Utilizing an advanced Haloxen gas mixture and an aluminized reflector, this 50-watt flood bulb delivers exceptional lumen maintenance exceeding 90% across its extended lifespan. Featuring a wide 60° beam spread, an integrated protective glass cover lens, and a GU5.3 bi-pin base, it provides high-output, fade-resistant illumination with targeted UV protection.

ADL Supply Expert Application & Replacement Guide

The Halco Prism FNV (ANSI 50MR16/FL60) features an architectural-grade **C-8 axial filament**. This filament design aligns the coil straight down the center axis of the bulb, distributing light uniformly across the multifaceted reflector to eliminate dark spots and beam irregularities common in cheaper transverse-filament lamps. Delivering a crisp 3100K bright white output with an integrated UV-blocking filter shield, it dramatically minimizes the fading and discoloration that UV radiation can cause on retail inventory, fabrics, and gallery artwork.

Low-Voltage Maintenance Advisory: This 12V lamp requires a compatible step-down electronic or magnetic low-voltage transformer. With an exceptional 10,000-hour average rated life, this Haloxen module lasts up to twice as long as standard halogen MR16 lamps, lowering operational maintenance labor costs for retail spaces, commercial hospitality properties, and exhibition cases. The clear front cover glass seals the internal elements, making this module fully approved for installation in both open and enclosed recessed downlights or track heads.

Detailed Product Specifications

• Brand: Halco Lighting Technologies
• Product Line: Prism Haloxen MR16 Series
• Halco Product Number: 107038
• Product Description Code: FNV/CL/H/AL/60
• ANSI Industry Code: FNV
• Lamp Technology: Haloxen Low-Voltage (Premium Halogen/Xenon Mix)
• Operational Wattage: 50 Watts
• Input Voltage Requirement: 12V AC/DC
• Color Temperature Configuration: 3100K Bright White
• Color Rendering Index (CRI): 100 (Maximum Spectral Fidelity)
• Beam Angle Spread: 60° Wide Flood (WFL)
• Internal Filament Type: C-8 Axial Filament
• Reflector Technology: Aluminized Coating (High Lumen Maintenance)
• Base Configuration: GU5.3 Miniature Bi-Pin (5.3mm Pin Spacing)
• Lamp Dimensions: 2.0" Inches Diameter x 1.77" Inches Maximum Overall Length (MOL)
• Front Lens: Closed Face (Integrated UV Protection Cover Glass)
• Rated Average Lifespan: 4,000 Hours
• Burning Position Parameters: Universal (Any Angle)

Operation, Safety & Mounting Compliance

Electrical Voltage Warnings

This spotlight module functions strictly on 12-volt current lines. Direct connection to 120V line voltage will cause instantaneous catastrophic filament destruction and presents a serious short-circuit and fire risk. Always verify that cumulative multi-lamp circuit wattages do not exceed your step-down transformer's rated capacity threshold before applying a new load.

Thermal and Handling Guidelines

Because high-wattage low-voltage lamps run hot during active duty cycles, allow fixtures to cool for a minimum of 15 minutes prior to handling or re-lamping. Never touch the reflector or quartz shell with bare fingers; moisture and natural skin oils will cause concentrated structural hot spots, leading to glass micro-fractures and early lamp envelope blowout.
