Product Overview

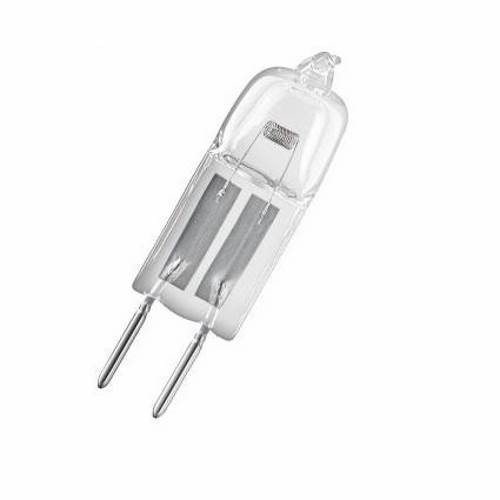

Ushio 1000531 FHD/ESA JC6V-10W – 10W | 6V | 3200K Warm White | ANSI FHD/ESA | G4 Miniature Bi-Pin
The Ushio 1000531 FHD/ESA JC6V-10W is a 10W 6V halogen miniature lamp with G4 Miniature Bi-Pin base, 3200K Warm White color temperature, CRI 100, 100 hours rated life. Universal burn position.
Wattage 10W Halogen JC M | Voltage 6V Operating | Color Temp 3200K CCT | Lumens — Initial lm | Rated Life 100 Hours |
Quick Specs
- Brand: Ushio
- Ushio Catalog Number: 1000531
- ANSI Code: FHD/ESA
- Lamp Type: Halogen JC Miniature — G4 Bi-Pin
- Wattage: 10W
- Operating Voltage: 6V
- Color Temperature: 3200K Warm White
- CRI: 100
- Rated Average Life: 100 hours
- Base Type: G4 Miniature Bi-Pin
- Overall Length (MOL): 31mm x DIA 8mm
- Burn / Operating Position: Position
Product Overview
The Ushio 1000531 FHD/ESA JC6V-10W is a 10W 6V halogen miniature lamp with G4 Miniature Bi-Pin base for instrument panel lighting, landscape fixtures, undercabinet lighting, task lighting, and optical instruments. At 3200K Warm White with CRI 100 this lamp provides accurate, stable illumination in compact form factor. Universal burn position. Rated life: 100 hours.
Do not touch the quartz envelope with bare hands. Use only in approved enclosed fixtures rated for this lamp.
Applications
- Instrument panel lighting — Instrument panel lighting, landscape fixtures, undercabinet lighting, task lighting, and optical instruments.
- Retrofit and maintenance replacement – Confirm lamp type, wattage, voltage, and base before ordering.
Safety and Handling
- Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth.
- Voltage — 6V: Verify supply matches rated voltage.
- Enclosed fixture only. Use only in approved enclosed fixtures.
- Allow 15-minute cool-down before replacement.
Ordering Information
- Brand: Ushio
- Ushio Catalog #: 1000531
- ANSI Code: FHD/ESA
- UPC: —
- Wattage / Voltage: 10W / 6V
- Base: G4 Miniature Bi-Pin
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
Compliance
- Halogen lamp — no mercury content. Standard electronic waste disposal applies.
- Verify RoHS and Prop 65 compliance with Ushio specification sheet.
ADL Supply recommends confirming all specifications with the Ushio product data sheet prior to installation.
