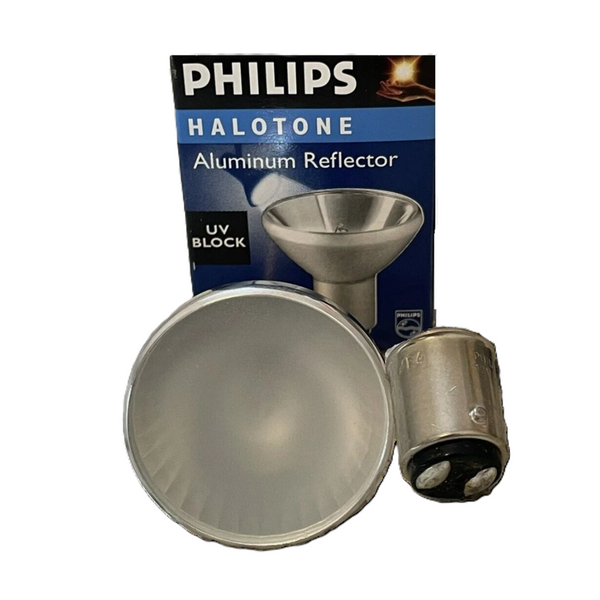

Philips 409355 (340034) GBF 20ALR12/FL32

The Philips GBF 40935-5 20ALR12FL32 Lamp is a commercial-grade, low-voltage tungsten halogen reflector spot engineered for space-constrained recessed downlights, high-end retail showcases, and museum display accent tracks. Delivering 250 initial lumens of warm 3000K light, this high-performance ALR12 lamp projects a beautifully balanced 32° flood beam spread yielding a sharp 700 center beam candlepower (CBCP). Outfitted with an industry-standard BA15d double-contact bayonet base and an integrated frosted safety glass lens cover, it provides a 2,000-hour rated average service life while using an advanced aluminum reflector shield to protect fixture wiring from back-end thermal loads.

ADL Supply Expert Application & Replacement Guide

The Philips ALR12 GBF series bulb is an established property maintenance standard specified heavily by gallery lighting curators, electrical contractors, and high-end jewelry boutique layout teams. This compact module is engineered to drop into low-voltage display track heads, directional cabinet displays, under-shelf retail displays, and specialized medical examination task lights where a highly uniform, glare-free accent beam footprint is required.

Critical Reflector Thermodynamics and Base Installation Constraints: Unlike glass dichroic fixtures that channel dangerous infrared heat backward into delicate track sockets, this model incorporates a rigid **block-aluminum reflector lining**. This structural barrier forces 100% of generated thermal energy and light forward away from the lampholder assembly, shielding deep fixture socket insulation from drying, carbonizing, or melting over long operating intervals. Furthermore, maintenance crews must verify base terminals: the BA15d double-contact bayonet base features dual parallel bottom contact plates with straight, uniform alignment pins on the metal collar. Forcing this dual-circuit base into single-contact automotive housings will permanently short-circuit the low-voltage step-down transformer block.

Detailed Product Specifications

• Brand: Philips Lighting (Signify Specialist Group)
• Product Series Line: Low-Voltage Aluminum Reflector ALR12 Series
• Philips Order Code Catalog SKU: 40935-5 (Directly replaces legacy code 34003-4)
• Manufacturer Nomenclature Model: GBF 20ALR12FL32
• Trade Industry ANSI Identification Code: GBF Certified Drop-In
• UPC Barcode Number (GTIN-12): 046677409357
• Core Technology Class: Low-Voltage Miniature Tungsten-Halogen Reflector
• Operational Wattage: 20 Watts
• Nominal Input Voltage Requirement: 12 Volts AC/DC (Step-down transformer circuit required)
• Initial Luminous Brightness: 250 Lumens
• Center Beam Luminous Intensity: 700 Candelas (cd)
• Luminous Efficacy: 12.5 Lumens per Watt (LPW)
• Beam Spread Profile: 32° Fluid Flood (FL30 Family Grid)
• Color Temperature Configuration: 3000K Warm White Halogen Balance
• Color Rendering Index (CRI): 100 Ra (Absolute Light Quality Representation)
• Reflector Envelope Construction: Hard Block-Aluminum Shield Coating (Forward Thermal Passing)
• Front Lens Treatment: Uniformly Frosted Diffusing Safety Cover Glass
• Base Type Configuration: BA15d (Double-Contact Miniature Bayonet Sleeve)
• Maximum Overall Length (MOL): 1.61" Inches (41.0mm actual)
• Bulb Nominal Diameter (DIA): 1.46" Inches (R37 / 37.0mm actual reflector rim width)
• Rated Average Lifespan: 2,000 Hours (Constant Voltage Scale)
• Chassis Burn Position Limit: Universal — Operates reliably in any mounting angle

Operation, Safety & Mounting Compliance

Low-Voltage Transformer and Dimming Controls

This 20-watt capsule operates strictly on low-voltage 12V grids driven by high-quality electronic or magnetic core-and-coil step-down transformers. Check your transformer nameplate under load to confirm total available wattage parameters accommodate the 20W continuous draw. This module is 100% dimmable to low light levels—to prevent filament buzzing or flicker loops across the system, ensure that your wall dimmers are specifically certified for low-voltage lighting control (electronic low-voltage ELV or magnetic low-voltage MLV tracking, matching your transformer's internal circuit framework).

Handling Rules and Casing Maintenance

Never handle the outer glass casing or base plate with bare hands during installation sweeps. Human fingers automatically deposit microscopic alkaline body oils that fuse chemically to the quartz lens during rapid heating cycles. This containment creates localized hot spots, prompting envelope clouding, micro-fracturing, and accelerated pressure breakdown. Installers must execute re-lamping sweeps using clean cotton tech gloves, a microfiber lint-free wipe, or its protective cardboard wrapper sleeve. Meticulously wipe the bulb with isopropyl alcohol if skin tracking occurs. Let the track head cool down for 15 minutes before servicing components to prevent contact skin burns.

Commercial Equipment Industry Cross-References

• Alternative: 54020 / GBF 20W 12V BA15d Clear ALR12
• Interlight Match: DI-GBF / Specialty Halogen Reflector Line
• Savant / Current Cross: Q20ALR12/FL32 / Heritage Catalog Equivalence
