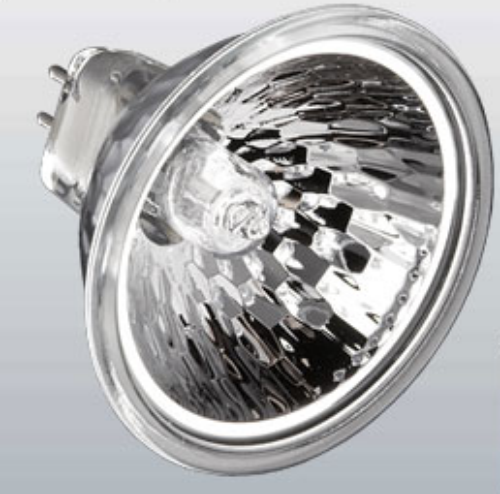

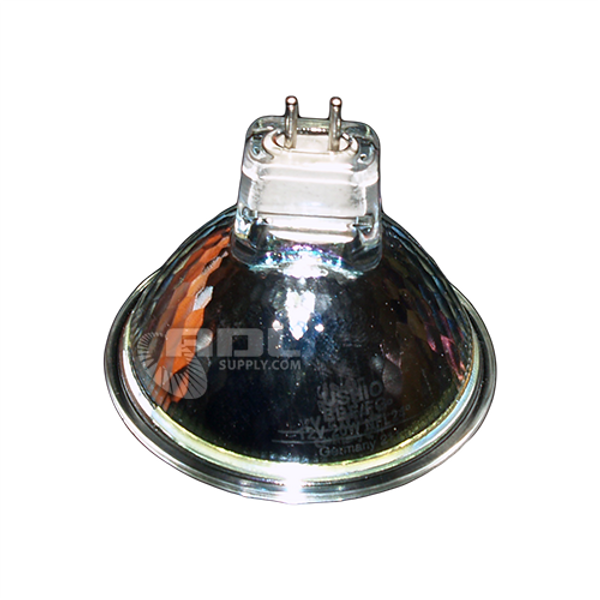

Ushio 1000028 BBF 12V 20W MR16 Eurostar Narrow Flood Halogen Lamp - 24° Beam

Professional-grade 20-watt low voltage halogen reflector lamp featuring multilayer titanium oxide coating and C-8 axial filament. Delivers 1,200 center beam candlepower with 24° narrow flood beam spread and 2950K warm white color temperature. GU5.3 bi-pin base for secure connection in track lighting, display, and accent applications. 5,000-hour rated life.

Technical Specifications

Key Features

• Titanium Oxide Reflector Coating: Multilayer coating is more durable than standard dichroic coatings, preventing cracking or peeling under high temperatures
• C-8 Axial Filament: Precision-aligned filament ensures optimal beam pattern, light intensity, and beam uniformity
• Consistent Color: Maintains 2950K color temperature from lamp to lamp throughout 5,000-hour life
• UV-Cut Capsule: Integrated UV protection reduces harmful ultraviolet radiation
• Cool Beam Effect: Dichroic reflector reduces heat transmission to front of fixture
• Universal Burn Position: Operates reliably in any orientation
• High CBCP: 1,200 center beam candlepower for excellent spot illumination
• 24° Narrow Flood: Ideal for accent and display lighting applications

Primary Applications

• Retail display cases and merchandise highlighting
• Museum and gallery exhibit lighting
• Track lighting systems
• Accent and architectural lighting
• Office and commercial downlighting
• Restaurant and hospitality lighting
• Residential spot and flood lighting

Available Variations

Also available in 10W, 35W, 50W, and 75W versions. See Ushio Eurostar catalog for complete product line.

Eurostar Series Advantages

The USHIO Eurostar reflector utilizes a multilayer titanium oxide coating which is much more durable than standard dichroic coatings. The thickness and application of these coatings ensure they do not crack or peel under the stress of high temperatures. Eurostar MR16s maintain color from lamp to lamp and throughout the life of the lamp.

Beam accuracy and uniformity is controlled by proper alignment of the lamp filament within the reflector. USHIO focuses the lamp filament inside the reflector, thereby optimizing the lamp's specified beam pattern, light intensity, and beam uniformity.

Cross Reference Numbers

Equivalent to: BAB (36° flood), Philips 13672, GE 20869, Osram 93525, Eiko 10274, Sylvania 54743, BBF-12V-20W-GU5.3, JR12V-20W/NFL24
Similar Products: ESX (12° spot), BAB (36° flood), BAB/60 (60° wide flood)

Technical Information

• Requires 12V low voltage transformer - do not exceed rated voltage
• GU5.3 base (5.3mm pin spacing) - not compatible with GX5.3 or GY8 bases
• 5,000-hour rated life based on 3 hours per start operation
• Dimmable with standard incandescent/halogen dimmers
• Manufactured in Japan under ISO 9001 quality standards
• Not compliant with California Title 20 energy regulations
