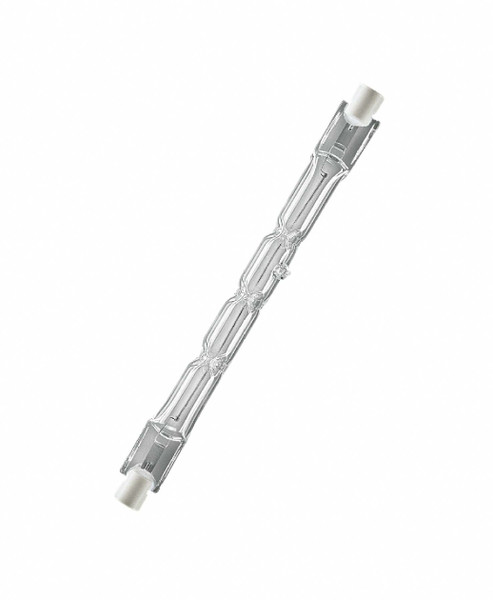

Osram #952677 Haloline ECO 64696 120 Watt  230V 2300lm T4 R7s Base Double Ended Halogen Lamp Replaces Osram 64695 150W R7s

• CRI 100
• Bulb T12
• Finish Clear
• Lumens 2300
• 100% Dimmable
• Rated Volts 230V
• Color Temp. 2950K
• Rated Wattage120W
• Rated Avg.Life 2,000Hrs
• MOL 114.2mm x DIA 12mm

• Base R7s Recessed Single Contact

Product benefits

• Brilliant ECO accent lighting
• Direct replacement for standard tubular halogen



  OSRAM HALOLINE ECO | 64696 | 120W 230V R7s Double-Ended Halogen Lamp

  The Osram Haloline ECO 64696 (952677) is a high-efficiency 120-watt halogen lamp designed to replace standard 150W tubular lamps while significantly reducing energy consumption. Delivering 2,300 lumens of brilliant accent lighting, this double-ended lamp features an R7s recessed single contact base and a compact 114.2mm length. With a perfect CRI of 100 and a warm 2950K color temperature, it provides natural, daylight-like illumination. Engineered for 230V line-voltage operation, it requires no transformer and is 100% dimmable, making it a versatile choice for both prestigious architectural applications and general household lighting.

  Wattage 120W Replaces 150W

  Brightness 2300 lm ECO Output

  Color 2950K Warm White

  Life 2,000 Hrs Avg. Rated

  Sustainable and Brilliant Lighting

  The Haloline ECO series is engineered to meet modern efficiency standards without sacrificing the instant-on, high-quality light of traditional halogen. By using advanced technology, this 120W lamp provides the same brightness as a 150W version with lower thermal output and CO₂ emissions. Its mercury-free construction and 100% dimmable performance make it ideal for creative accent lighting in hotels, restaurants, and retail spaces where atmosphere and environmental impact are both top priorities.

  • Energy Efficient: Saves approximately 20% in energy costs compared to standard 150W tubes.
  • Superior Color Quality: CRI of 100 ensures accurate merchandise and skin tone presentation.
  • Mercury-Free: Environmentally friendly design can be disposed of with normal household waste.
  • Versatile Use: Suitable for indoor general illumination and outdoor pathway or garden lighting.

  Technical Specifications

  • Brand: Osram Sylvania
  • Model Number: 64696
  • Product Code (NAED): 952677
  • Wattage: 120W
  • Voltage: 230V
  • Luminous Flux: 2,300 Lumens
  • Base Type: R7s (Recessed Single Contact)
  • Bulb Shape: T12 (Double Ended)
  • Color Temperature: 2950K
  • Color Rendering Index (CRI): 100
  • Average Rated Life: 2,000 Hours
  • Dimensions: 114.2 mm (MOL) x 12 mm (Diameter)

  Installation & Safety Notes

  • Handling: Never touch the clear glass with bare fingers. Oils from the skin can create "hot spots" that lead to glass rupture. Use a clean cloth or gloves.
  • Operation: Designed for line-voltage use; no external transformer is required.
  • Maintenance: Ensure the fixture is powered off and the lamp has cooled completely before replacement.
  • Fixture Shielding: Use only in fixtures equipped with a protective tempered glass cover.
  lamps
• Significantly lower CO2 emissions
• Lower thermal output (compared with the standard reference product)
• No transformer required
• Contains no mercury, can be thrown away with normal household waste

Areas of application

• General illumination
• Entrance lighting
• Pathway lighting
• Garden lighting
• Traffic areas
• Shops
• Restaurants, hotels and

• similar prestigious applications
• Offices, public buildings
