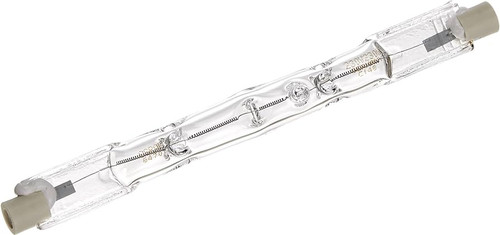

OSRAM Haloline ECO 64684 — 48W 230V R7s Halogen Lamp
The OSRAM Haloline ECO 64684 is a 48W, 230V double-ended tubular halogen lamp with an R7s base, delivering 815 lm of brilliant, full-spectrum accent light. As part of OSRAM's energy-saving ECO line, it delivers the same quality of light as a standard halogen lamp from up to 20% lower power consumption, with a direct form-factor replacement for standard tubular halogen lamps.
WATTAGE 48W 230V | LUMENS 815 lm Initial | COLOR TEMP 2,900K Ra=100 / CRI 100 | RATED LIFE 2,000 hrs Average | BASE TYPE R7s Dimmable |
Technical Specifications
| Order Code | 64684 |
| Wattage | 48W |
| Voltage | 230V |
| Luminous Flux | 815 lm |
| Average Rated Life | 2,000 hours |
| Base Type | R7s |
| Design Length | 74.9 mm |
| Color Rendering Index | Ra=100 (CRI 100) |
| Color Temperature | 2,900K |
| Dimmable | Yes |
| Recommended Fuse Rating | 2.0A (luminaire side, per IEC/EN 60357) |
| Transformer Required | No |
| UPC/EAN | 4008321928054 |
| Inner Carton Quantity | 12 |
| Outer Carton Quantity | 20 |
| Note | NEW |
Product Overview
The OSRAM Haloline ECO 64684 is the classic energy-saving lamp for small outdoor lighting systems, floodlighting of buildings and sports arenas, and security lighting. It is also popular in residential settings, where innovative pendant luminaires use it for wide-area indirect lighting in a range of modern designs.
This ECO version delivers the same quality of light as a standard halogen lamp from up to 20% lower power consumption, resulting in significantly lower CO2 emissions and lower thermal output than the standard reference product. It carries a color temperature of 2,900K and a Color Rendering Index of Ra=100, and is fully dimmable with an average rated life of 2,000 hours. No transformer is required — it is a direct, drop-in replacement for standard tubular halogen lamps of the same wattage and base type.
Compatible Applications
- Small outdoor floodlighting (buildings, facades)
- Sports arenas and security lighting
- Indirect and pendant home lighting
Before Ordering – Verify
- Confirm base type (R7s) matches your fixture before ordering — this lamp uses the standard R7s base.
- Confirm supply voltage (230V) matches your local mains supply.
- Install luminaire-side fuse protection rated 2.0A as recommended per IEC 60357 / EN 60357.
- Enclosed luminaires must be used for both indoor and outdoor applications.
Safety and Handling Guidelines
- Allow lamp to cool completely before handling or relamping.
- Do not touch the quartz envelope with bare skin; skin oils can cause premature lamp failure. Handle with a clean cloth or gloves.
- Enclosed luminaires must be used for both indoor and outdoor applications.
- Disconnect power at the fixture before installing or removing this lamp.
- Install only in fixtures rated for this lamp's wattage and voltage.
Compliance
- Manufactured by OSRAM.
- Recommended luminaire-side fuse protection: 2.0A, per IEC 60357 / EN 60357.
Ordering Information
- Order Code: 64684
- UPC/EAN: 4008321928054
- Packed 12 per inner carton, 20 per outer carton.
- Sold individually unless otherwise noted on the product page.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
