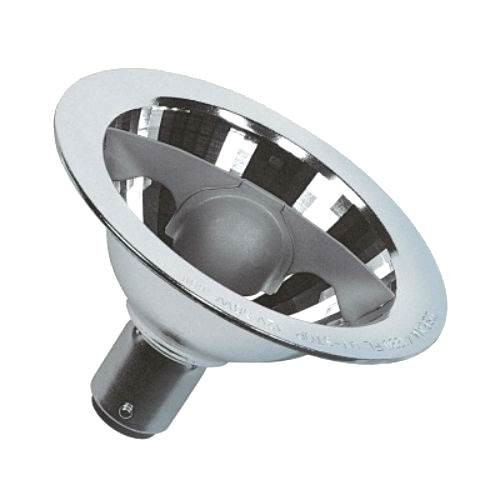

OSRAM HALOSPOT® 70 | 20W 12V | AR70 8° Spot Ba15d Halogen Reflector

The OSRAM Halospot 70 (20AR70/SP8) is a premium low-voltage halogen spotlight engineered for high-precision accent lighting. Featuring a narrow 8° beam angle and a faceted aluminum reflector, this lamp provides a brilliant, focused beam ideal for highlighting fine details in retail displays, art galleries, and museums. Its specialized UV-filter and aluminum coating are designed to direct heat forward, protecting sensitive fixtures and suspended ceilings from thermal load. With a perfect CRI of 100, the Halospot 70 ensures absolute color accuracy, making textures and colors appear vibrant and true to life.

Exceptional Optical Quality and Heat Management

The Halospot 70 series is renowned for its ability to fit into extremely narrow and compact luminaires without compromising light quality. The integrated cap design effectively minimizes glare, providing superior visual comfort for observers. Furthermore, it is fully dimmable and approved for use in open luminaires according to IEC 60598-1 standards, offering versatile installation options for both professional and residential architectural lighting.

• Precision Highlighting: Faceted aluminum reflector ensures a uniform and even light distribution.
• Thermal Protection: Aluminum-coated reflector directs most heat forward, reducing the heat load behind the lamp.
• Instant Brightness: Reaches full light output immediately with no warm-up time.
• Slim Design: 70mm diameter reflector allows for discreet installation in streamlined track or recessed systems.

Technical Specifications

• Brand: OSRAM
• Model Number: Halospot 70 20W 8° (20AR70/SP8)
• ILCOS Code: HMGS//UB-20-12-BA15d-70/8
• Wattage: 20W
• Voltage: 12V
• Base Type: Ba15d (Double Contact Bayonet)
• Color Temperature: 3000K (Warm White)
• Color Rendering Index (CRI): 100 Ra
• Reflector Type: AR70 Aluminum
• Rated Average Life: 2,000 - 3,000 Hours
• Dimensions: 50 mm (MOL) x 70 mm (Diameter)

Applications & Safety

• Primary Uses: Retail boutiques, museums, art galleries, high-end residential accenting.
• Dimming: Fully dimmable when used with halogen-compatible dimming systems.
• Installation Tip: Ensure secure connection in Ba15d sockets to prevent arcing and premature socket wear.
• Handling: As with all halogen lamps, avoid touching the inner capsule with bare hands to maintain optimal life.
