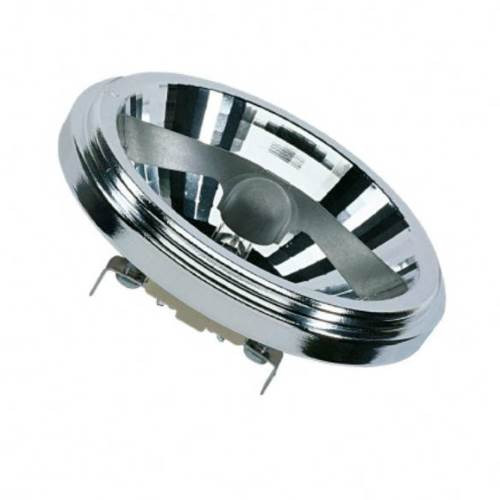

Osram 41990-FL 50W Halospot-70

The Osram Halopot 70 50W 12V Flood Lamp is a premium, commercial-grade low-voltage tungsten halogen reflector bulb engineered for high-intensity retail displays, museum gallery accenting, and luxury residential track systems. Delivering crisp 3000K warm white illumination, this high-performance AR70 lamp projects a beautifully balanced 24° flood beam spread yielding a powerful 2,600 center beam candlepower (CBCP). Outfitted with an industry-standard BA15d double-contact bayonet base and an integrated anti-glare metal vertex cap, it provides a 2,000-hour rated average service life while utilizing a rigid block-aluminum reflector envelope to isolate backend sockets from intense thermal loads.

ADL Supply Expert Application & Replacement Guide

The Osram Halopot 70 series bulb is a signature architectural and retail standard specified heavily by gallery lighting designers, electrical contractors, and luxury commercial display teams. This compact module is engineered explicitly to seat inside specialized low-profile track heads, directional ceiling eyeballs, shallow recessed task trims, and exhibition display cabinets where standard, long MR16 reflector housings are physically too deep to align correctly.

Critical Thermal Dispersion Data and Pin-Base Contact Warnings: Unlike standard glass dichroic fixtures that pass destructive infrared heat backward into sensitive canopy tracks, this model incorporates a heavy-duty **block-aluminum reflector shield envelope**. This design completely seals the back-end of the lamp, channeling 100% of visible light and generated thermal energy forward away from the lampholder assembly. While this process protects internal canopy wiring insulation, track transformers, and sensitive electrical joints from drying out or melting over long shifts, it does project intense localized heat forward onto targeted merchandise. Furthermore, maintenance crews must verify terminal layouts: the BA15d base utilizes a double-contact twist-and-lock barrel with dual contact discs on the base point. It must not be forced into single-contact automotive or single-circuit marine sockets.

Detailed Product Specifications

• Brand: Osram (Premium Professional Optic Group)
• Product Series Line: Halopot 70 Low-Voltage AR70 Series
• Osram Order Code Catalog SKU: 41900 (Nomenclature Model: 50AR70/FL24)
• Official Trade Industry ANSI / ILCOS Identifier: HMGS//UB-50-12-BA15d-70/24
• Global UPC Barcode Reference: 4050300004044
• Core Technology Class: Low-Voltage Miniature Tungsten-Halogen Reflector
• Operational Wattage: 50 Watts
• Nominal Input Voltage Requirement: 12 Volts AC/DC (Step-down transformer circuit required)
• Center Beam Luminous Intensity: 2,600 Candelas (cd)
• Luminous Efficacy Ratio: 16.5 Lumens per Watt (LPW)
• Beam Spread Profile: 24° Precision Flood (FL)
• Color Temperature Configuration: 3000K Warm White Halogen Balance
• Color Rendering Index (CRI): 100 Ra (Absolute Light Quality Representation)
• Reflector Envelope Construction: Hard Block-Aluminum Coating (Forward Thermal Passing)
• Front Lens Treatment: Open Face Design (UV-Cut Clear Capsule Shielding)
• Optics Framework: Precision Diamond-Faceted Segment Reflector Bowl
• Base Type Configuration: BA15d (Double-Contact Miniature 15mm Bayonet Sleeve)
• Maximum Overall Length (MOL): 1.97" Inches (50.0mm actual from cap to bottom contacts)
• Bulb Nominal Diameter (DIA): 2.75" Inches (AR70 / 70.0mm actual reflector rim width)
• Rated Average Lifespan: 2,000 Hours (Constant Voltage Scale)
• Chassis Burn Position Limit: Universal — Operates reliably in any mounting angle
• Safety Standard Compliance: Conforms fully with IEC 60598-1 open fixture security parameters

Operation, Safety & Mounting Compliance

Low-Voltage Transformer and Dimming Controls

This 50-watt capsule operates strictly on low-voltage 12V grids driven by high-quality electronic or magnetic core-and-coil step-down transformers. Check your transformer nameplate under load to confirm total available wattage parameters safely accommodate the intensive 50W continuous load draw. This module is 100% dimmable to low light levels—to prevent filament buzzing or flicker loops across the system, ensure that your wall dimmers are specifically certified for low-voltage lighting control (electronic low-voltage ELV or magnetic low-voltage MLV tracking, matching your transformer's internal circuit framework).

Handling Rules and Casing Maintenance

Never handle the outer glass casing or base plate with bare hands during installation sweeps. Human fingers automatically deposit microscopic alkaline body oils that fuse chemically to the quartz lens during rapid heating cycles. This containment creates localized hot spots, prompting envelope clouding, micro-fracturing, and accelerated pressure breakdown. Installers must execute re-lamping sweeps using clean cotton tech gloves, a microfiber lint-free wipe, or its protective cardboard wrapper sleeve. Meticulously wipe the bulb with isopropyl alcohol if skin tracking occurs. Let the fixture cool down for 15 minutes before servicing components to prevent contact skin burns.

Commercial Equipment Industry Cross-References

• Philips Alternative: 50W 12V AR70 Flood 24D BA15d
• Sylvania Match: 50AR70/FL24 / Heritage Series Line
• BLV Germany Cross: Eurostar AR70 12V 50W Flood
