Product Overview

Sylvania 54174 50MR16/IR/NFL25/C 12V – 50W | 12V | 3000K Warm White | 25° Narrow Flood (NFL25) | GU5.3 Bi-Pin

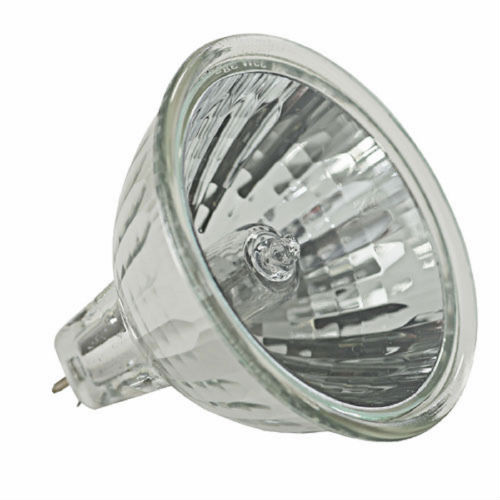

The Sylvania 54174 50MR16/IR/NFL25/C 12V is a 50W 12V 3000K Warm White MR16 halogen lamp in the Sylvania Tru-Aim IR (Infrared Reflecting) series with a 25° Narrow Flood (NFL25) beam angle, GU5.3 Bi-Pin base, 2,000 hours rated life. Requires a compatible 12V low-voltage transformer — do not connect directly to line voltage. UPC: 46135541742. MPN: 50MR16IRNFL25C-.

Wattage

50W

Voltage

12V

Low Voltage

Beam

25°

NFL Beam

Color Temp

3000K

CRI ~100

Rated Life

2,000

Hours

Quick Specs

Brand: Sylvania
Series: Tru-Aim IR — Infrared Reflecting
Sylvania Order Code: 54174
Manufacturer Part Number: 50MR16IRNFL25C-
UPC: 46135541742
Lamp Type: MR16 Halogen Reflector — Low Voltage
Wattage: 50W
Operating Voltage: 12V (Low Voltage — requires 12V transformer)
Color Temperature: 3000K Warm White
Initial Lumens: 750 lm
Rated Average Life: 2,000 hours
Base Type: GU5.3 Bi-Pin (2-Pin, 5.3mm spacing)
Beam Angle: 25° Narrow Flood (NFL25)
Overall Diameter / MOL: 50mm diameter × 44.5mm (MOL)
Burn / Operating Position: Universal
Front Glass: Covered

Product Overview

The Sylvania 54174 50MR16/IR/NFL25/C 12V is a 50W 12V MR16 halogen lamp delivering 3000K Warm White output with a 25° Narrow Flood (NFL25) beam pattern. The IR (Infrared Reflecting) series uses a dichroic filter coating that reflects infrared energy back through the filament, reducing heat at the beam face while maintaining the same lumen output at lower wattage compared to standard lamps. Ideal for heat-sensitive merchandise, food display, and retail accent applications. A narrow flood beam balances intensity and coverage for display cases, wall washing, and retail accent.

Transformer required: This is a low-voltage (12V) lamp. It requires a compatible magnetic or electronic 12V transformer. Do not connect directly to 120V or 240V line voltage.

Applications

Accent and display lighting – Display case lighting, merchandise highlighting, and wall washing in retail and gallery environments.
IR technology — heat-sensitive merchandise – Infrared reflecting technology reduces heat at the beam face — ideal for food display, floral, and heat-sensitive merchandise.
Retrofit replacement – Drop-in replacement for MR16 GU5.3 fixtures. Confirm beam angle and wattage before ordering.

Safety and Installation

12V transformer required. This lamp operates at 12V only. Connecting to 120V or 240V line voltage will destroy the lamp and may cause fire or injury.
Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or a lint-free cloth.
Allow 15-minute cool-down before handling.
Use only in enclosed or open fixtures rated for MR16 lamps.
