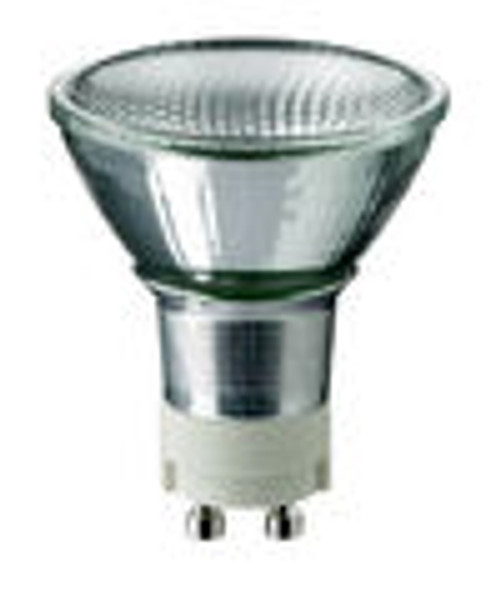

PHILIPS 20W MasterColor Elite Mini | 3000K Warm White | 25° Flood | GX10

Philips MasterColor CDM-Rm Elite Mini (MR16) is a state-of-the-art ceramic metal halide reflector lamp that redefines energy efficiency for retail and display lighting. This 20-watt lamp delivers a crisp 3000K warm white beam with a 25° flood spread, providing the punch and sparkle of a 50W halogen while consuming up to 60% less energy. Featuring a precision GX10 Twist-Lock base for secure installation, the Elite Mini offers exceptional lamp-to-lamp color consistency and a remarkable 15,000-hour rated life—five times longer than standard halogen alternatives. Engineered for open fixtures, it provides stable color within ±200K throughout its lifespan, making it the professional choice for high-impact commercial environments.

Product Overview

The Philips MasterColor CDM-Rm Elite Mini series brings the power of Ceramic Metal Halide (CMH) technology to the popular MR16 reflector format. Unlike traditional halogens that degrade in brightness and color over time, the Elite Mini maintains a high-quality sparkling light for up to 15,000 hours. The 25° flood beam is perfectly balanced for general accent lighting, illuminating merchandise with vibrant clarity. Designed for simplicity and security, the GX10 base prevents the lamp from loosening due to vibrations, while its compact dimensions ensure compatibility with a wide range of miniature track and recessed fixtures.

• Energy Efficiency: Consumes only 20 watts while providing light levels comparable to much higher wattage halogen lamps.
• Elite Performance: Part of the "Elite" family, offering the highest level of lumen maintenance and color rendering in the MasterColor line.
• Twist-and-Lock Security: The GX10 base provides a firm, mechanical lock into the socket for better electrical contact.
• Open Fixture Rated: Compact design allows for use in open luminaires without the need for additional shielding.

Technical Specifications

• Brand: Philips MasterColor Elite Mini
• Wattage: 20W
• ANSI Code: C156/O
• Base Type: GX10 (Twist-Lock)
• Bulb Shape: MR16 [2 inch]
• Color Temperature: 3000K (830 Warm White)
• Beam Angle: 25° (Flood)
• Rated Average Life: 15,000 Hours
• Dimensions: 65.4mm MOL x 50.7mm Diameter
• Luminous Intensity: High-sparkle output with ±200K color stability

Installation & Application

• System Compatibility: Must be used with a compatible electronic HID ballast matching the ANSI C156/O code.
• Applications: High-end retail displays, jewelry cases, accent lighting in hotels, and professional gallery illumination.
• Note: Ensure the power is off and the fixture has cooled before twisting the GX10 base into place.
