Product Overview

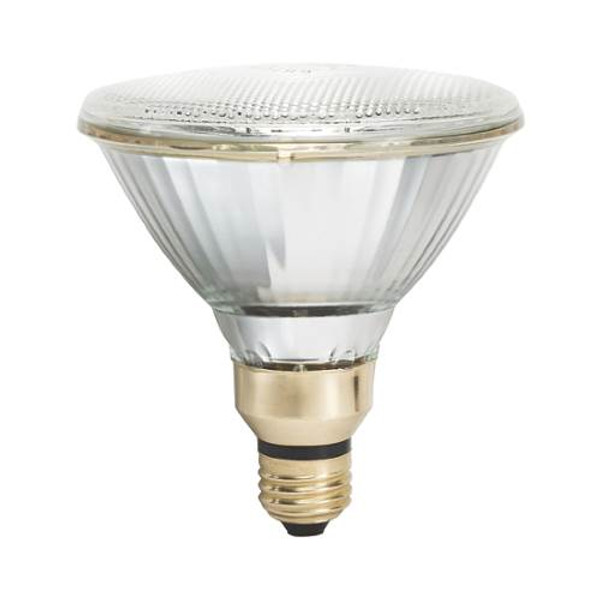

Philips 244772 CDM100/PAR38/SP/3K – 100W | 3000K Warm White | CRI 85 | 15° | ANSI M140/M90/O | E26 Medium Screw

The Philips 244772 CDM100/PAR38/SP/3K is a 100W 3000K Warm White CDM-R Ceramic Metal Halide — PAR Reflector lamp with 15° beam angle, CRI 85, 6,200 initial lumens, ANSI M140/M90/O, E26 Medium Screw, 12,500 hours rated life. Enclosed or Outdoor Luminaires. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. UPC: 46677244774. MPN: CDM100PAR38-SP15-3K-24477-2. Philips order code: 24477-2.

Wattage

100W

Philips Master

Color Temp

3000K

CRI 85

Beam Angle

15°

Spread

Rated Life

12,500

Hours

Base

E26

Medium

Quick Specs

Brand: Philips
Series: Philips MasterColor CDM-R Elite
Philips Order Code: 24477-2
Manufacturer Part Number: CDM100PAR38-SP15-3K-24477-2
UPC: 46677244774
ANSI Code: M140/M90/O
Lamp Type: CDM-R Ceramic Metal Halide — PAR Reflector
Wattage: 100W
Color Temperature: 3000K Warm White
CRI: 85
Initial Lumens: 6,200 lm
Rated Average Life: 12,500 hours
Base Type: E26 Medium Screw
Overall Length / Diameter (MOL): 5.7/16in x DIA 4.75in
Beam Angle: 15°
Burn / Operating Position: Universal
Fixture Compatibility: Enclosed or Outdoor Luminaires
Start Type: Requires thermally protected CMH/CDM ballast.
Mercury Content: Contains mercury — dispose per local regulations.

Product Overview

The Philips 244772 CDM100/PAR38/SP/3K is a 100W 3000K Warm White CDM-R Ceramic Metal Halide — PAR Reflector for retail display, architectural accent, and hospitality lighting. CRI 85 — delivers exceptional color rendering for accurate product and artwork presentation. Rated life: 12,500 hours. Enclosed or Outdoor Luminaires.

Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. Contains mercury — dispose per local regulations.

Applications

Directional display and accent lighting – Retail display, architectural accent, and hospitality lighting.
Retrofit and maintenance replacement – Verify ANSI code, wattage, and base type before ordering. Requires thermally protected CDM control gear.

Safety and Installation

Thermally protected ballast required. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear.
Fixture: Enclosed or Outdoor Luminaires.
Burn position: Universal.
Allow warm-up time: 2–4 minutes for full output.
Hot restrike: Allow 5–10 minutes after switching off before restarting.
UV radiation: Use only in fixtures with UV-protective shielding.
Mercury disposal: Contains mercury — dispose per local lamp recycling regulations.
