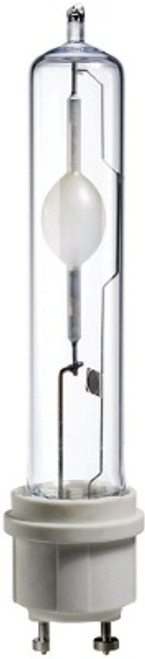

Philips MASTERColour CDM-TMW Elite 210W/942 Ceramic Metal Halide Lamp
The Philips 13952200 MASTERColour CDM-TMW Elite 210W/942 is a medium-wattage ceramic metal halide (CDM) lamp delivering superior, longer-lasting white light for both indoor and outdoor use. It runs on a PGZ18 base with a nominal 4200K (ANSI 942) cool white color point, 92 CRI, and up to 108 lm/W efficacy, and is rated for totally enclosed luminaires with electronic control gear only.
|
WATTAGE
210W
Rated
|
LUMENS
23,000 lm
Nominal Rated Flux
|
COLOR TEMP
4200K (942)
Cool White, CRI 92
|
RATED LIFE
30,000h
To 50% Failure
|
EFFICACY
108 lm/W
Nominal
|
Technical Specifications
| Order Code | 13952200 |
| Full Product Code | 871829113952200 |
| Order Product Name | MASTERColour CDM-TMW Elite 210W/942 1CT |
| Local Code | 210CDMTELITE942 |
| ILCOS Code | MT-210/42/1A-H-PGZ18 |
| ANSI Code (HID) | C183/E |
| Rated Wattage | 210.0 W |
| Energy Consumption | 231 kWh / 1,000 hrs |
| Cap/Base | PGZ18 |
| Operating Position | Universal (any position) |
| Colour Code | 942 (ANSI design point 4200K); measured CCT (nom.) 3960K |
| Colour Designation | Cool White (CW) |
| Color Rendering Index (CRI) | 92 nominal (89 min) |
| Rated Luminous Flux | 23,000 lm nominal (21,000 lm min) |
| Design Mean Lumens | 20,470 lm |
| Luminous Efficacy | 108 lm/W nominal (98 lm/W min) |
| Life to 50% Failures (nom.) | 30,000 hours |
| Life to 10% Failures (nom.) | 16,000 hours |
| Life to 5% Failures (nom.) | 12,500 hours |
| Bulb Finish | Clear (CL) |
| Maximum Overall Length | 7.4" max / 7.3" nom. (188mm max / 186mm nom.) |
| Maximum Diameter | 1.1" (29mm max / 28mm nom.) |
| Net Weight (piece) | 115 g |
| Mercury (Hg) Content | 25 mg max |
| Energy Efficiency Label | A+ |
| EAN/UPC | 8727900801804 |
| North American Cross-Reference | Philips CDM Elite MW 210/T9/942/U/E (US Product No. 220632) |
| NA Bulb Designation (ANSI) | T9 |
| NA Light Center Length (LCL) | 3 1/2" (90mm) |
| NA Package Quantity | 12 lamps per case |
Product Overview
MASTERColour CDM-TMW Elite is a ceramic metal halide (CDM) lighting system built for professional indoor and outdoor applications where consistent, high-quality white light matters. It combines 92 CRI color rendering with up to 108 lm/W efficacy and strong lumen maintenance — 94% at 5,000 hours, 90% at 12,000 hours, and 80% at 20,000 hours — for stable output well into the lamp's life.
This lamp is designed for totally enclosed luminaires only and requires electronic control gear with end-of-life (EOL) protection. It ignites on a 3,000–4,000V supply and runs on a nominal 90–115V operating range, reaching 90% of run-up light output within 1.5 minutes.
Compatible Applications
- General indoor and outdoor professional/commercial lighting.
- For use in totally enclosed luminaires only — open fixtures require the separate PGZX18-cap protected version of this lamp, not this SKU.
- Requires electronic control gear (ballast) with end-of-life protection.
Before Ordering – Verify
- Confirm your luminaire is a totally enclosed fixture rated for this lamp type — this SKU is not approved for open fixtures.
- Confirm ballast/control gear compatibility — electronic control gear with end-of-life (EOL) protection is required.
- Confirm operating voltage window (90–115V nominal, 3,000–4,000V ignition supply) matches your fixture/ballast system before ordering.
- If matching an existing fixture's current lamp, confirm ANSI code C183/E and PGZ18 cap type match exactly before ordering.
- This item also cross-references to Philips' North American catalog listing (Product No. 220632, CDM Elite MW 210/T9/942/U/E) — confirm which order code your fixture spec calls for. Philips' regional datasheets publish somewhat different rated-life and CRI figures for this lamp category, so match primarily by ANSI code (C183/E) and base (PGZ18) rather than assuming the numbers are interchangeable.
Safety and Handling Guidelines
- Use only in totally enclosed luminaires, even during testing — open-fixture use requires the separate PGZX18-cap protected version of this lamp.
- The luminaire must be able to contain hot lamp parts if the lamp ruptures.
- Use only with electronic control gear that includes end-of-life (EOL) protection.
- If a lamp breaks, ventilate the room for 30 minutes before cleanup; remove parts preferably with gloves, seal in a plastic bag, and take to a local waste facility for recycling — do not use a vacuum cleaner.
- Contains mercury (25 mg max) — dispose of properly according to local regulations.
- Per Philips' North American lamp documentation: use only in a fixture with a Pulse Start metal halide ballast specifically designed for Pulse Start metal halide lamps.
- Per Philips' North American lamp documentation, the arc tube fill gas contains a low level of radioactive Kr-85 (<25 nCi) — standard for this lamp category; handle broken lamps per the cleanup steps above.
Compliance
- Manufactured by Philips Lighting (Signify).
- Energy Efficiency Label: A+.
- EAN/UPC: 8727900801804.
- Datasheet issue: May 26, 2017 — specifications subject to change without notice.
Ordering Information
- Order Code: 13952200
- Full Product Code: 871829113952200
- Local Code: 210CDMTELITE942
- EAN/UPC: 8727900801804
- ILCOS Code: MT-210/42/1A-H-PGZ18
- Packaging: 1 lamp per inner pack, 12 packs per outer box
- North American cross-reference: Philips Product No. 220632, Ordering Code CDM Elite MW 210/T9/942/U/E, package quantity 12.
- Sold individually unless otherwise noted on the product page.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
