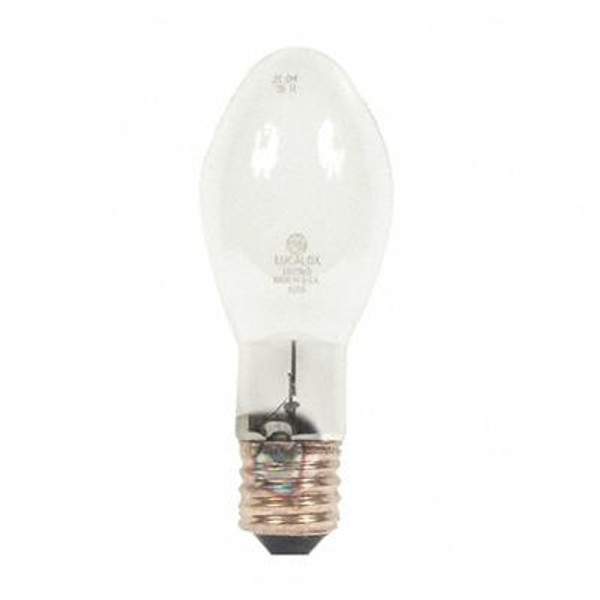

GE LU150/100/D 150W S56 Coated HPS – 150W | 1900K Warm Amber | CRI ~22 | ANSI S56/O | Diffuse (D) | E39 Mogul Screw

The GE LU150/100/D 150W S56 Coated HPS is a 150W 1900K Warm Amber High Pressure Sodium (HPS) lamp in the GE Lighting Lucalox series, ANSI S56/O, E39 Mogul Screw, 15,000 initial lumens, 24,000 hours rated life, Diffuse (D) variant, ED28 bulb. Requires a compatible HPS ballast — do not use on metal halide or mercury vapor ballasts. Contains mercury — dispose per local regulations. UPC: 43168442435.

Wattage

150W

HPS

Color Temp

1900K

CRI ~22

ANSI Code

S56/O

Ballast Code

Rated Life

24,000

Hours

Base

E39

Mogul

Quick Specs

Brand: GE Lighting
Series: GE Lucalox
UPC: 43168442435
ANSI Code: S56/O
Lamp Type: High Pressure Sodium (HPS) — Lucalox
Wattage: 150W
Color Temperature: 1900K Warm Amber
CRI: ~22
Initial Lumens: 15,000 lm
Rated Average Life: 24,000 hours
Base Type: E39 Mogul Screw
Bulb Shape: ED28
Burn / Operating Position: Universal
Variant: Diffuse (D)
Mercury Content: Contains mercury — dispose per local regulations.

Product Overview

The GE LU150/100/D 150W S56 Coated HPS is a 150W 1900K Warm Amber GE Lucalox High Pressure Sodium lamp. Diffuse (D) lamps feature a coated outer envelope that softens and diffuses the arc tube light, reducing glare and providing a more uniform, comfortable illumination pattern for area and commercial applications.

HPS ballast required. This lamp must be operated on a compatible High Pressure Sodium ballast matched to ANSI code S56/O. HPS lamps are not interchangeable with metal halide or mercury vapor ballasts. Contains mercury — dispose per local regulations.

Applications

Outdoor area and street lighting – Roadways, parking lots, municipal streetlights, and perimeter security lighting.
Industrial and commercial high-bay – Warehouses, manufacturing facilities, and large indoor/outdoor commercial fixtures.
Retrofit and maintenance replacement – Verify ANSI code and wattage before ordering. HPS lamps require an HPS-rated ballast.

Safety and Installation

HPS ballast required. Operate only on a High Pressure Sodium ballast rated for ANSI S56/O. Do not use on MH or mercury vapor ballasts.
Allow warm-up time: 3–5 minutes for full output.
Hot restrike: Allow 10–20 minutes after switching off before restarting.
UV radiation: Use only in fixtures with UV-protective shielding. Do not operate with a broken or cracked outer envelope.
Mercury disposal: Contains mercury — dispose per local lamp recycling regulations.
