GE 27187 LU600/T

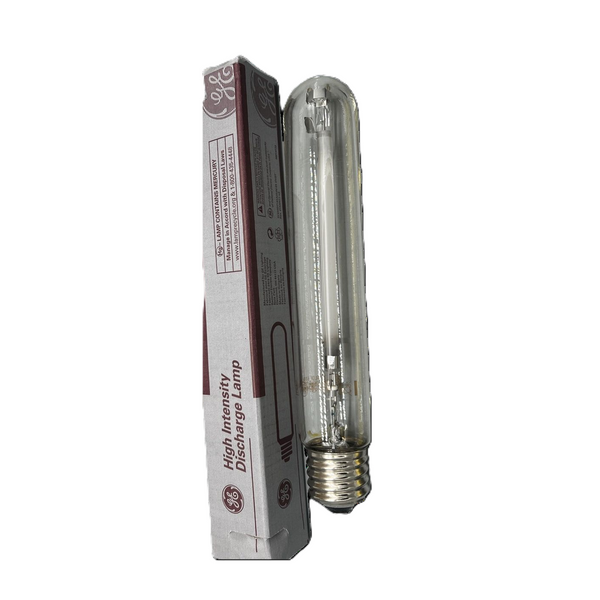

GE 27187 LU600/T — 600W Lucalox HPS Lamp, E39 Base

The GE 27187 LU600/T is a 600-watt Lucalox® high pressure sodium (HPS) lamp with a T15 bulb and E39 Mogul Screw base, designed for HPS ballast circuits rated ANSI S106. It delivers 90,000 initial lumens at 2000K and is rated for 24,000 hours.

Technical Specifications

Product Overview

The GE LU600/T is a 600-watt Lucalox® high pressure sodium (HPS) lamp. It ships with a T15 bulb envelope on a E39 Mogul Screw base and is built to operate on an HPS ballast rated ANSI S106. Output is 90,000 initial lumens (81,000 mean lumens) at 2000K and 22 CRI, with a warm amber HPS color.

GE's Lucalox® HPS line offers very high efficacy and low operating cost, with over 90% lumen maintenance at 50% of life. It is a universal-burn lamp that can be operated in any position and used in open or enclosed fixtures.

Not recommended for: retail displays, color-critical inspection environments, or any application requiring CRI above 22.

Compatible Applications

• Typical uses (per GE): Industrial, roadway, security, and floodlighting.
• Fixtures wired for an HPS ballast rated ANSI S106 with a E39 Mogul Screw socket.
• Direct replacement for existing 600W HPS lamps with the same base and ballast rating. Verify ballast compatibility before ordering.
• Burning position: U (Universal — any burning position).

Before Ordering — Verify

• ANSI / Ballast Code: Confirm the existing lamp or ballast label matches S106.
• Wattage: Confirm the fixture is rated for 600W.
• Base Type: Confirm the socket matches E39 Mogul Screw.
• Ballast Compatibility: This lamp requires an HPS-rated ballast and ignitor. It will not operate on a metal halide or mercury vapor ballast.
• Burn Position: HPS lamps are not position-sensitive — no orientation restriction.
• Physical Fit: Confirm lamp shape (T15), length (11.06" MOL), and clearance against the existing lamp or fixture manual.
• Confirm order code 27187 (GE LU600/T) exactly matches the lamp or ballast label on your existing fixture before purchasing a replacement.
• Case pack quantity is 12; confirm this meets your order needs.

Safety and Handling Guidelines

• Correct Ballast Required: Use only with an HPS-compatible ballast and ignitor rated for this lamp. An incompatible ballast can cause lamp failure or fixture damage.
• Vacuum Jacket: This is a vacuum jacket lamp and may implode if broken. Wear safety glasses and gloves when installing or removing the lamp, and allow it to cool fully first.
• Sodium Content: The lamp contains sodium — avoid skin contact with broken pieces (chemical burn risk).
• Warm-Up / Restrike: Per GE, HPS lamps take about 3–4 minutes to reach 90% light output after starting, and about 1 minute after a brief power interruption.
• Approved Fixtures Only: Install only in fixtures rated for the listed lamp type, wattage, and operating position; do not use if the outer glass is scratched or broken.
• Mercury Content: Contains mercury. Do not dispose of in regular trash; recycle through an approved lamp recycling program in accordance with federal, state, and local regulations.

Compliance

• Contains mercury — subject to applicable lamp recycling and disposal regulations. California, Washington, and other states may have mandatory take-back or handling fee requirements.
• Verify additional certifications (UL, Title 20, Prop 65) with the GE specification sheet prior to use in regulated installations.

Ordering Information

• GE Order Code: 27187
• GE Model: LU600/T
• UPC / EAN: 43168271875
• ANSI Ballast Type: S106
• Wattage / CCT: 600W / 2000K
• Base: E39 Mogul Screw
• Case Pack Quantity: 12
• Packaging: Sold individually; case-pack pricing available on request.

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
