Product Overview

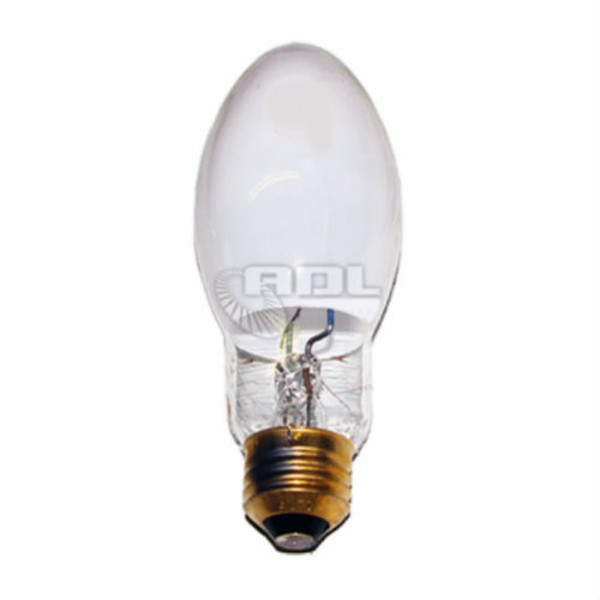

Sylvania 67505 LU70/D/MED Lumalux Standard High Pressure Sodium Lamp - 70W E17, E26 Medium, 1900K, 24000+hr Life
The Sylvania 67505 LU70/D/MED is a Sylvania Lumalux Standard non-cycling high pressure sodium (HPS) lamp rated at 70W on a E26 Medium base, with a E17 bulb, Coated finish, and 1900K color temperature. It is rated for 24000+ hours average life, burned in the Universal position.
This lamp should be selected by matching the Sylvania product number, wattage, bulb shape, base type, and ANSI code to the existing lamp or fixture being replaced.
Wattage 70W E26 Medium | Color Temp 1900K CRI 22 | Lumens 5800 Initial | Rated Life 24000+ Hours | Efficacy 83 Lumens/Watt |
Product Overview
Sylvania Lumalux high pressure sodium lamps are used across commercial, industrial, and outdoor lighting where high efficacy and long life are priorities. The Ecologic (ECO) designation identifies lamps built with reduced or no added mercury; Standby (SBY) lamps add a dual-arc-tube design for instant restrike after a power interruption; Plus (PLUS) lamps extend rated life further; and Plantastar lamps are tuned for plant growth/horticulture applications.
Technical Specifications
| Brand | Sylvania |
| Sylvania Product Number | 67505 |
| Ordering Abbreviation | LU70/D/MED |
| Product Family | Lumalux Standard |
| Wattage | 70 W |
| Bulb | E17 |
| Base | E26 Medium |
| ANSI Code / Fixture Requirement | S62/O |
| Bulb Finish | Coated |
| Burning Position | Universal |
| Average Rated Life | 24000+ hours |
| Initial Lumens | 5800 |
| Mean Lumens | 4900 |
| CRI | 22 |
| Color Temperature | 1900K |
| Luminous Efficacy | 83 LPW |
| Standard Package Quantity | 20 |
Key Features
- Lumalux Standard construction: non-cycling high pressure sodium with 24000+-hour average rated life.
- 1900K color temperature at 83 lumens per watt efficacy.
- Coated bulb finish on a E26 Medium base.
Compatible Applications
- Outdoor area, roadway, and parking lot lighting
- Industrial high-bay and warehouse lighting
- Security and floodlighting fixtures rated for HPS lamps
- Maintenance replacement where Sylvania product number 67505 is specified
Before Ordering Verify
- Exact Sylvania Product Number: Match 67505 (LU70/D/MED) to the existing lamp label or fixture documentation.
- ANSI Code: Confirm the fixture/ballast is rated for ANSI code S62/O.
- Base Type: Confirm the fixture socket matches a E26 Medium base.
- Wattage: Confirm the ballast is rated for 70W.
- Burning Position: Confirm the fixture orientation matches the rated Universal burning position.
Safety & Installation Guidelines
- Qualified Installation: Install and service only with power disconnected, following applicable electrical codes.
- Ballast Match: Operating this lamp on an incompatible ballast can cause premature failure or fixture damage.
- Cooling: Allow the lamp to cool fully before handling or removal.
- Disposal: High pressure sodium lamps may contain trace mercury — dispose of per local regulations (www.lamprecycle.org).
Cross-Reference & Replacement Guide
| Sylvania 67505 | Philips/Signify: 332148 Grainger P/N: 5V943 GE Equivalent: 11340 (LU70/D/MED) |
