GE 10202 MPR350/VBU/PA

Product Overview

GE Lighting Logo

GE 10202 MPR350/VBU/PA – 350W | 3700K | CRI 65 | ANSI M131/O | Vertical Base Up ±15° | EX39 Exclusionary Mogul Screw

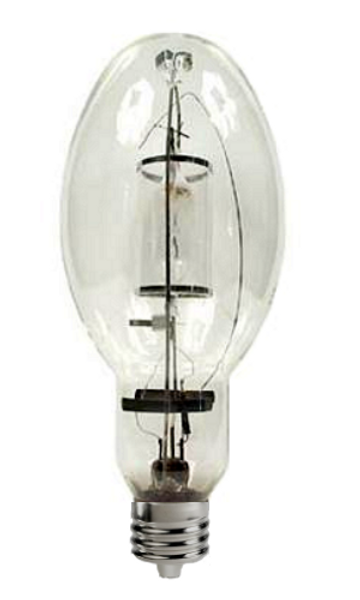

The GE 10202 MPR350/VBU/PA is a 350W 3700K Multi-Vapor PulseArc Protected lamp in a clear ED37 bulb, CRI 65, ANSI M131/O, EX39 Exclusionary Mogul Screw base, 20,000 hours rated life, Vertical Base Up ±15° burn position. Suitable for open or enclosed fixtures. Requires a pulse-start compatible HID ballast. UPC: 43168102025.

Wattage

350W

Metal Halide

Color Temp

3700K

CRI 65

ANSI Code

M131/O

Ballast Code

Rated Life

20,000

Hours

Base

EX39

Excl. Mogul

Quick Specs

Brand: GE Lighting
Series: Multi-Vapor PulseArc Protected
GE Order Code: 10202
UPC: 43168102025
ANSI Code: M131/O
Lamp Type: Multi-Vapor PulseArc Protected, Clear
Wattage: 350W
Bulb Shape: ED37, Clear
Color Temperature: 3700K
CRI: 65
Initial Lumens: 35,200 lm
Mean Lumens: 24,600 lm
Rated Average Life: 20,000 hours
Base Type: EX39 Exclusionary Mogul Screw
Overall Length / Diameter (MOL): 11.50in x 4.625in DIA
Light Center Length (LCL): 7.00in
Burn / Operating Position: Vertical Base Up ±15°
Fixture Compatibility: Open or enclosed fixtures rated for this lamp
Start Type: Pulse-Start — requires pulse-start ballast
UV Control: Yes
Mercury Content: Contains mercury — dispose per local regulations.

Product Overview

The GE 10202 MPR350/VBU/PA is a 350W 3700K GE Multi-Vapor PulseArc Protected lamp in a clear ED37 bulb. It delivers 35,200 initial lumens with a CRI of 65. The protected construction makes it suitable for open or enclosed fixtures. Rated life: 20,000 hours.

Requires a pulse-start compatible HID ballast. Use in a fixture rated for this lamp. Contains mercury — dispose per local regulations.

Recommended Ballasts

Pulse-start ballasts for ANSI M131:

GEP350MLTAA4-5/2 (GE 67346)
GEP350TRIAC4-5 (GE 78529)

Applications

Commercial and industrial HID lighting – Warehouses, industrial facilities, and area lighting in fixtures rated for this lamp.
Retrofit and maintenance replacement – Verify ANSI code, wattage, and burn position before ordering. Pulse-start lamps require a pulse-start ballast.

Safety and Installation

Risk of electric shock. Turn power off before inspection, installation or removal.
Pulse-start ballast required. Use a pulse-start compatible HID ballast.
Fixture: Use in a fixture rated for this product. Do not use where directly exposed to water or outdoors without an enclosed fixture.
Burn position: Vertical Base Up ±15°. Operate the lamp only in the specified position.
Risk of fire. Keep combustible materials away from the lamp and do not exceed rated voltage.
UV radiation: A damaged lamp emits UV radiation which may cause eye or skin injury. Turn power off if the glass bulb is broken, then remove and dispose of the lamp.
Lamp rupture: Unexpected lamp rupture may cause injury, fire, or property damage. Do not use the lamp if the outer glass is scratched or broken.
Weekly off cycle: Turn the lamp off at least once for 15 minutes per week. Do not use beyond rated life.
Mercury disposal: Contains mercury — dispose per local lamp recycling regulations.
