GE 13495 MVR360/VBU/WM/HO

Product Overview

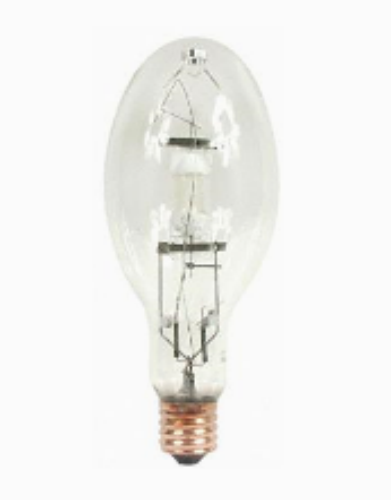

GE 13495 MVR360/U/WM/HO — 360W Multi-Vapor Metal Halide Lamp

The GE MVR360/U/WM/HO (order code 13495) is a 360-watt Multi-Vapor® metal halide lamp with a ED37 bulb and E39 Mogul Screw base, designed as a direct replacement lamp for HID fixtures built around a M59/M165 ANSI ballast circuit.

WATTAGE

360W

Input Wattage

LUMENS

36,000 lm

Mean: 23,500 lm

CCT

4300K

Daylight

BASE TYPE

E39

ED37 Bulb

CRI

65 CRI

Color Rendering Index

Technical Specifications

GE Order Code	13495
GE Model / Description	MVR360/U/WM/HO
Bulb Shape	ED37
Base Type	E39 Mogul Screw
Burning Position	U — Universal (any burning position)
Fixture Enclosure Rating	S — Restricted burning position — verify fixture suitability with GE documentation
Maximum Overall Length (MOL)	11.50"
Light Center Length (LCL)	7.00"
Wattage	360W
ANSI Ballast Type	M59/M165
Case Quantity	6
Rated Life	20,000 hrs
Initial Lumens	36,000 lm
Mean Lumens	23,500 lm
Color Temperature	4300K
CRI	65
Lamp Finish / Additional Info	Clear, Watt-Miser®
High Color Rendering	Yes (per GE datasheet)

Product Overview

The GE MVR360/U/WM/HO is a 360-watt Multi-Vapor® metal halide lamp finished in clear glass, rated at 65 CRI and 4300K color temperature. It ships with a ED37 bulb envelope on a E39 Mogul Screw base and is built to operate on a M59/M165 ANSI-type metal halide ballast.

This is a standard GE Multi-Vapor® metal halide lamp from the non-Pulsearc family, widely deployed as a maintenance replacement in existing commercial and industrial HID fixtures already wired for a probe-start or standard M-type ANSI ballast. It is a common stock replacement lamp for parking lot, warehouse, and general area lighting fixtures already in the field.

At 20,000 hours rated life and 36,000 initial lumens, this lamp is intended as a like-for-like replacement for GE order code 13495 — confirm the code printed on your existing lamp or fixture ballast label matches before ordering.

Compatible Applications

Fixtures wired for a M59/M165 ANSI-type metal halide ballast circuit
E39 Mogul Screw socket fixtures rated for 360W metal halide lamps
General commercial and industrial area lighting
Parking lot, warehouse, and wall pack fixtures already equipped with a matching ballast
Burning position: U (Universal (any burning position))

Before Ordering – Verify

Confirm your fixture's ballast is rated ANSI type M59/M165 — GE metal halide ballasts are not interchangeable across different ANSI type codes, and pulse-start ignition systems are not interchangeable with probe-start ballast circuits; verify the ballast label before ordering.
Confirm base type (E39) and burning position (U — Universal (any burning position)) match your fixture — operating a lamp outside its rated position can shorten lamp life.
GE lists a restricted/special fixture designation (“S”) for this lamp — verify fixture enclosure and orientation requirements with GE documentation before ordering.
Confirm order code 13495 (GE MVR360/U/WM/HO) exactly matches the lamp or ballast label on your existing fixture before purchasing a replacement.
Case pack quantity is 6; confirm this meets your order needs.

Safety and Handling Guidelines

Contains mercury — dispose of in accordance with local, state, and federal regulations; do not place in regular household trash. Use a certified lamp recycler where required.
Always de-energize the fixture and allow the lamp to cool completely before relamping or servicing.
Metal halide lamps carry a small risk of non-passive (violent) failure at end of life or if operated past rated life; use only in a fixture with the enclosure/containment specified by the fixture manufacturer.
After a power interruption, allow the lamp to cool before it will restrike and return to full output — this is normal metal halide behavior, not a defect.

Compliance

Contains mercury; recycle/dispose of per applicable RoHS, EPA, and state lamp-disposal regulations.
Manufactured to GE's published ANSI lamp/ballast standard for the listed ballast type.
