Product Overview

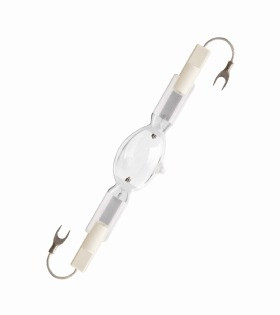

Osram HQI-TS 1000W/D/S POWERSTAR Metal Halide Lamp - 1000W cable Base, 5900K CRI ≥ 90, 6000h Rated Life
The Osram HQI-TS 1000W/D/S is an Osram POWERSTAR HQI quartz metal halide lamp rated at 1000W / 120V on a cable base, with a 5900K color temperature and CRI (Ra) ≥ 90. It is rated for 6000 hours average life.
This lamp should be selected by matching the Osram order code, wattage, base type, and light color to the installed fixture or ballast.
Wattage 1000W 120V Nominal | Color Temp 5900K CRI ≥ 90 (Ra) | Lumens 90000 Nominal Initial | Rated Life 6000 Hours | Base cable HQI-TS |
Product Overview
Osram’s POWERSTAR HQI lamps are quartz metal halide lamps used across commercial, industrial, and display lighting where compact size, high lumen output, and good color rendering are required. Different HQI families (T, BT, TS, E, E/P) vary by bulb shape, base type, and intended fixture/reflector design — always match the exact family and base type to the installed fixture.
Technical Specifications
| Brand | Osram |
| ADL / Order Code (as listed) | HQI-TS 1000 W/D/S UVS K12S |
| Osram Lamp Reference | HQI-TS 1000W/D/S |
| Family | HQI-TS |
| ILCOS Code | MN-1000/59/1A-H-cable lug-36/187/P15/S15 |
| EAN | 4050300300092 |
| Wattage | 1000 W |
| Voltage | 120 V |
| Ignition Voltage (Min/Max) | 4/5 kVp |
| Lamp Current | 9.4 A |
| Nominal Luminous Flux | 90000 lm |
| Luminous Efficacy | 90 lm/W |
| Light Color / Appearance Code | D |
| Color Temperature | 5900 K |
| Color Rendering Index (Ra) | ≥ 90 |
| Base | cable |
| Diameter | 36 mm |
| Maximum Overall Length | 187 mm |
| LCL | 93 mm |
| Burning Position | p 15/s 15 |
| Average Lamp Life | 6000 hours |
| PF Correction Capacitor (50 Hz) | 85 µF |
| Standard Pack Quantity | 10 |
| NIOSH Skin Exposure Limit | > 5.5 min |
| ACGIH UV Output | < 92 |
| Max. Permissible Outer Bulb Temp. | 950 °C |
| Max. Permissible Pinch/Base Edge Temp. | 390 °C |
Key Features
- HQI-TS family POWERSTAR quartz metal halide construction on a cable base.
- 5900K color temperature at CRI (Ra) ≥ 90.
- 6000-hour average rated life.
Compatible Applications
- Commercial and industrial high-bay, floodlighting, and display fixtures rated for this HQI family and base type
- Retail and architectural accent lighting requiring high color rendering metal halide sources
- Maintenance replacement where Osram lamp reference HQI-TS 1000W/D/S or EAN 4050300300092 is specified
Before Ordering Verify
- Exact Osram Lamp Reference: Match HQI-TS 1000W/D/S (EAN 4050300300092) to the existing lamp label or fixture documentation.
- Base Type: Confirm the fixture socket matches a cable base.
- Wattage & Control Gear: Confirm the fixture/ballast is rated for 1000W.
- Color Temperature: Confirm 5900K matches the existing lamps in the fixture or space.
- Burning Position: Confirm the fixture orientation matches the rated p 15/s 15 burning position.
Safety & Installation Guidelines
- Qualified Installation: Install and service only with power disconnected, following applicable electrical codes.
- UV Exposure: Use only in fixtures with adequate shielding; do not operate with a damaged or broken outer envelope.
- Correct Ballast Match: Operating this lamp on an incompatible ballast/gear type can cause premature failure, incorrect color temperature, or fixture damage.
- Disposal: Metal halide lamps contain mercury — dispose of per local regulations (www.lamprecycle.org).
- Cooling: Allow the lamp to cool fully before handling or removal.
Wholesale & Project Support
ADL Supply supports contractors, facility managers, maintenance departments, and commercial buyers with Osram metal halide lamp replacement identification, project quoting, and volume order support.
For volume pricing, availability, or help confirming the correct Osram replacement lamp, contact ADL Supply at 1-800-235-3489.
