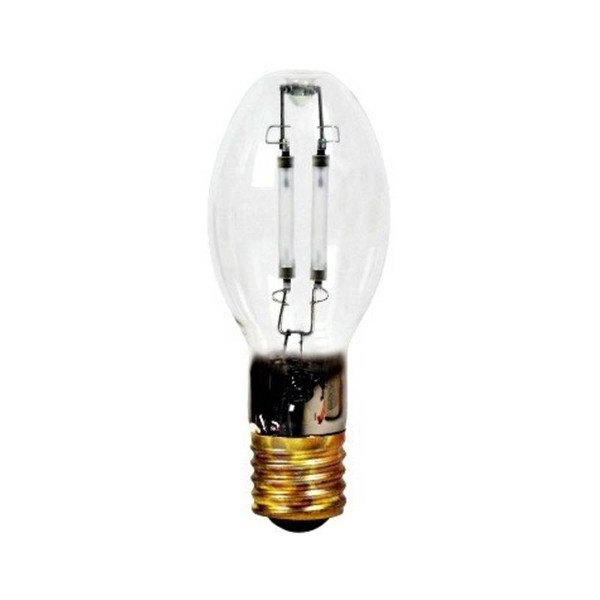

Philips 26541-3 C70S62/2 Ceramalux High Pressure Sodium Lamp – 70W ANSI S62 ED23 E39 Mogul Base

The Philips Ceramalux High Pressure Sodium (HPS) lamp provides dependable illumination for municipal, commercial, and industrial lighting applications. This 70W ANSI S62 HID lamp features a 2100K warm sodium color temperature, ED23 bulb shape, and E39 mogul base for compatibility with standard high pressure sodium lighting systems.

Technical Specifications

• Brand: Philips Lighting
• Part Number: 26541-3
• Model: C70S62/2
• SKU: PHLB265413
• Lamp Type: Ceramalux High Pressure Sodium (HPS)
• Wattage: 70 Watts
• ANSI Code: S62
• Bulb Shape: ED23
• Base Type: E39 Mogul Screw Base
• Color Temperature: 2100K
• Color Rendering Index (CRI): 21
• Rated Average Life: Up to 40,000 Hours
• Max Overall Length (MOL): 7.75 in
• Bulb Diameter: 2.94 in
• Burn Position: Universal

Applications

• Street and roadway lighting
• Parking lot and area lighting
• Industrial and warehouse lighting
• Commercial outdoor lighting
• Municipal infrastructure lighting

About Philips Ceramalux High Pressure Sodium Lamps

Philips Ceramalux High Pressure Sodium lamps are engineered to deliver excellent lumen maintenance, long operating life, and consistent color performance throughout the life of the lamp. These lamps are widely used in municipal and industrial lighting installations where dependable high-efficiency illumination is required.

Important Safety and Installation Notes

• High Pressure Warning: HPS lamps operate under high internal pressure. Use protective equipment when handling.
• Ballast Compatibility: Must be operated on an ANSI S62 rated ballast.
• Avoid Skin Contact: Oils from skin may create hot spots on the lamp envelope.
• Warm-Up Time: Allow several minutes after ignition for the lamp to reach full brightness.
• Hot Restart: Lamps require cooling before restriking after power interruption.
• Burn Position: Install only in the rated burn position.
