Philips 33227-0 C100S54/D/ALTO 100W E39 HPS Lamp

Product Overview

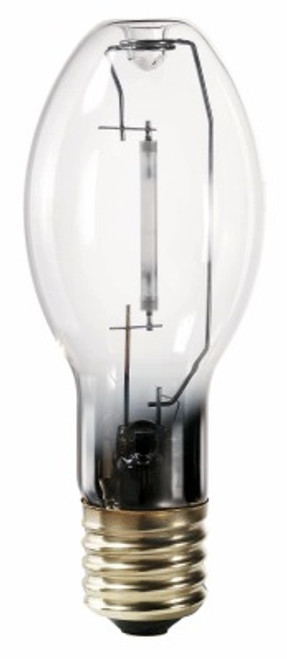

Philips 33227-0 C100S54/D/ALTO — 100W Ceramalux High Pressure Sodium Lamp, E39 Mogul Screw Base

The Philips 33227-0 C100S54/D/ALTO is a 100W Ceramalux High Pressure Sodium (HPS) lamp from Philips Lighting, designed for outdoor area lighting, street lighting, and industrial high-bay applications. With a E39 Mogul Screw base, ED-23½ bulb shape, ANSI code S54, and universal burn position, this lamp delivers 8,610 initial lumens and a 24,000+-hour rated life. Verify wattage, ANSI code, base type, and ballast compatibility before ordering — HPS lamps require an HPS-rated ballast and ignitor.

Wattage

100W

HPS / HID

Lumens

8,610 lm

Initial Output

Color Temp

2100K

Warm Amber

Base

E39

E39 Mogul Screw

Rated Life

24,000+ hrs

Average Life

Technical Specifications

SKU	PHLB332270
Brand	Philips Lighting
Philips Product Number	33227-0
Series	Philips Ceramalux — High Pressure Sodium
Lamp Type	High Pressure Sodium (HPS)
Ordering Code	C100S54/D/ALTO
Bulb Shape	ED-23½
Wattage	100W
Initial Lumens	8,610 lm
Mean Lumens	7,750 lm
CRI	~21
Color Temperature	2100K Warm Amber
Base Type	E39 Mogul Screw
ANSI Code	S54
Burn / Operating Position	Universal
LCL (Light Center Length)	— (double-ended)
MOL (Max Overall Length)	7¾″
Rated Average Life	24,000+ hours
Standard Package Quantity	12 per case
UPC / EAN	46677332273

Product Overview

The Philips 33227-0 C100S54/D/ALTO is a 100W Ceramalux HPS lamp engineered for high-output outdoor and industrial lighting. It delivers 8,610 initial lumens (7,750 mean lumens at 40% of rated life), suited for roadway, warehouse, and high-bay industrial lighting. The 2100K warm amber output is characteristic of High Pressure Sodium technology.

The ED-23½ bulb shape and E39 Mogul Screw base make this a direct replacement in fixtures previously housing a standard 100W HPS lamp with ANSI code S54. Universal burn position allows installation in any orientation. Rated average life is 24,000+ hours. This lamp contains mercury and must be recycled per applicable regulations.

Compatible Applications

Outdoor area and street lighting — Roadways, parking lots, municipal streetlights, and perimeter security lighting.
Industrial and commercial high-bay — Warehouses, manufacturing facilities, and large indoor/outdoor commercial fixtures.
Retrofit and maintenance replacement — Direct replacement for existing 100W HPS lamps with E39 Mogul Screw base and S54 ANSI code. Verify ballast compatibility before ordering.

Before Ordering — Verify

ANSI / Lamp Code: Confirm the existing lamp or equipment manual matches S54.
Wattage: Confirm the fixture is rated for 100W.
Base Type: Confirm the socket matches E39 Mogul Screw.
Ballast Compatibility: This lamp requires an HPS-rated ballast and ignitor. It will not operate on a Metal Halide or Mercury Vapor ballast.
Burn Position: Fixture supports Universal operation — no restriction.
Physical Fit: Confirm ED-23½ bulb shape, LCL — (double-ended), MOL 7¾″, and fixture clearance against the existing lamp or fixture manual.

Safety and Handling Guidelines

Correct Ballast Required: Use only with an HPS-compatible ballast and ignitor rated for this lamp. Using an incompatible ballast can result in lamp failure or fixture damage.
High-Pressure Arc Tube: HPS lamps operate under high internal pressure. Always use appropriate eye protection when handling or replacing lamps. Allow lamps to cool fully before removal.
Fixture Design: Do not use this lamp in a fixture that redirects a substantial portion of energy toward the arc tube and its immediate vicinity, as this may lead to early lamp failure.
Approved Fixtures Only: Install only in fixtures rated for the listed lamp type, wattage, and operating position. The fixture wattage rating must match the wattage on the outer glass bulb.
Handling: Do not scratch the outer bulb or subject it to pressure — this could cause the outer bulb to crack or shatter. Replace the lamp if the outer glass bulb has been scratched, cracked, or damaged in any way.
If Broken: If the outer glass bulb is broken, shut off power immediately and remove the lamp after it has cooled. If the arc tube is broken, avoid skin contact with its contents or fragments.
Mercury Content: Contains mercury. Do not dispose of in regular trash. Recycle through an approved lamp recycling program in accordance with federal, state, and local regulations.

Compliance

Contains mercury — subject to applicable lamp recycling and disposal regulations. California, Washington, and other states may have mandatory take-back or handling fee requirements.
Verify RoHS compliance status, UL listing, Title 20, and Prop 65 requirements with the Philips manufacturer specification sheet prior to use in regulated installations.
