Product Overview
Philips CDM Elite C130/E 35W T6 930 – 35W | 3000K Warm White | CRI 90 | ANSI C 156/E | G12 Bi-Pin Ceramic

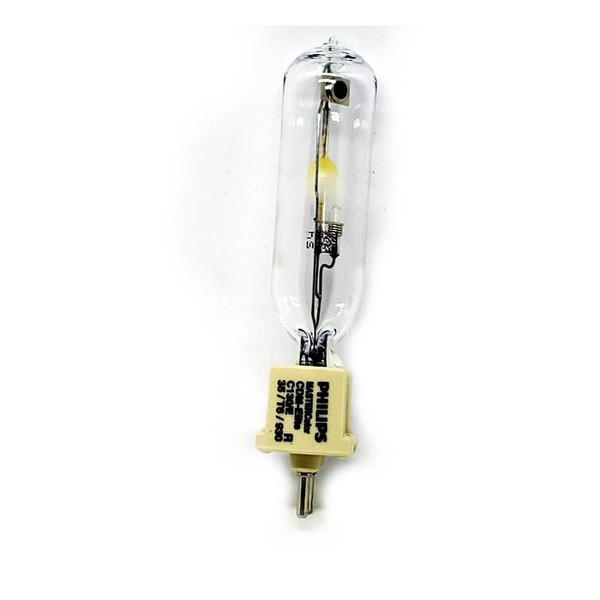

The Philips CDM Elite C130/E 35W T6 930 is a 35W 3000K Warm White CDM Ceramic Metal Halide lamp, CRI 90, ANSI C 156/E, G12 Bi-Pin Ceramic, 12,000 hours rated life. Enclosed Luminaires Only. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear.
Wattage 35W CDM Ceramic MH | Color Temp 3000K CRI 90 | ANSI Code C 156/E Ballast Code | Rated Life 12,000 Hours | Base G12 Bi-Pin |
Quick Specs
- Brand: Philips
- Series: Philips MasterColor CDM
- ANSI Code: C156/E
- Lamp Type: CDM Ceramic Metal Halide
- Wattage: 35W
- Color Temperature: 3000K Warm White
- CRI: 90
- Rated Average Life: 12,000 hours
- Base Type: G12 Bi-Pin Ceramic
- Overall Length / Diameter (MOL): 3.94in x DIA 0.75in
- Fixture Compatibility: Enclosed Luminaires Only
- Start Type: Requires thermally protected CMH/CDM ballast.
- Mercury Content: Contains mercury — dispose per local regulations.
Product Overview
The Philips CDM Elite C130/E 35W T6 930 is a 35W 3000K Warm White CDM Ceramic Metal Halide for commercial and industrial ceramic metal halide applications. CRI 90 — delivers exceptional color rendering for accurate product and artwork presentation. Rated life: 12,000 hours. Enclosed Luminaires Only.
Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. Contains mercury — dispose per local regulations.
Applications
- Commercial and industrial CDM lighting – Commercial and industrial ceramic metal halide applications.
- Retrofit and maintenance replacement – Verify ANSI code, wattage, and base type before ordering. Requires thermally protected CDM control gear.
Safety and Installation
- Thermally protected ballast required. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear.
- Fixture: Enclosed Luminaires Only.
- Allow warm-up time: 2–4 minutes for full output.
- Hot restrike: Allow 5–10 minutes after switching off before restarting.
- UV radiation: Use only in fixtures with UV-protective shielding.
- Mercury disposal: Contains mercury — dispose per local lamp recycling regulations.
Ordering Information
- Brand: Philips
- Series: Philips MasterColor CDM
- Philips Order Code: —
- ANSI Code: C156/E
- UPC: —
- Wattage: 35W
- Base: G12 Bi-Pin Ceramic
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
Compliance
- Contains mercury — dispose per local lamp recycling regulations.
- Verify RoHS and Prop 65 compliance with Philips specification sheet.
ADL Supply recommends confirming all specifications with the Philips product data sheet prior to installation.
