Product Overview

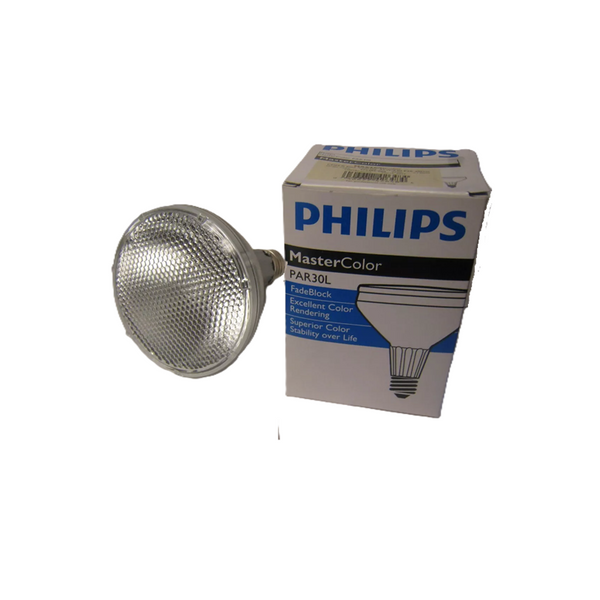

Philips 426544 CDM-R Elite 70W/930 E26 PAR30L 40D - 70W CDM-R Ceramic Metal Halide PAR30L Lamp, 3000K, CRI 92, 40° Flood, E26
The Philips 426544 CDM-R Elite 70W/930 E26 PAR30L 40D is a 70W CDM-R Ceramic Metal Halide — PAR Reflector lamp from Philips’ MasterColor Elite range. It runs at 3000K Warm White with CRI 92, a 40° flood beam, and an E26 Medium base, and requires a compatible 70W CDM/CMH ballast.
|
Wattage
70W
73.0W Rated Input
|
Color Temp
3000K
CRI 92
|
Beam Angle
40°
Flood
|
Rated Life
15,000
Hours
|
Base
E26
Medium Screw
|
Product Overview
MasterColor CDM-R Elite lamps sit at the top of Philips’ ceramic metal halide range, delivering consistent white light and strong color rendering over their full rated life in the familiar PAR30L reflector shape — a direct fit for existing PAR30L architectural and display fixtures.
Technical Specifications
| Brand | Philips (Signify) |
| Series | MasterColor CDM-R Elite |
| Philips Order Code | 426544 |
| EAN/UPC | 046677426545 |
| ANSI Code (HID) | C98/O |
| Lamp Type | CDM-R Ceramic Metal Halide — PAR Reflector |
| Wattage / Rated Power | 70W (73.0W rated input) |
| Color Temperature / CRI | 3000K Warm White / CRI 92 (89 min) |
| Beam Angle | 40° Flood |
| Rated Lumens | 4,400 lm (90° cone) |
| Base | E26 Medium Screw |
| Rated Life | 15,000 hours (to 50% failures) |
| Dimmable | No |
| Mercury Content | 6.6 mg |
Key Features
- MasterColor Elite family — Philips’ top-tier CDM range for consistent light quality and lifetime performance.
- CRI 92 for accurate color rendering in retail and architectural display settings.
- 40° flood beam in the familiar PAR30L shape drops into existing E26 fixtures.
Compatible Applications
- Retail display and merchandising lighting
- Architectural accent and hospitality lighting
- Track and directional fixtures built for PAR30L E26 lamps
Before Ordering Verify
- Exact Order Code: Match Philips order code 426544 to the existing lamp label.
- ANSI Code: Confirm the fixture/ballast is rated for ANSI code C98/O.
- Ballast Compatibility: Requires a compatible 70W CDM/CMH ballast — will not run on a standard metal halide ballast.
- Base & Beam: Confirm E26 Medium base and 40° flood beam match the fixture.
Safety & Installation Guidelines
- UV Warning: Can cause skin burn or eye inflammation if the outer envelope is broken; use only in fixtures with adequate shielding.
- Mercury Content: Contains 6.6 mg mercury — dispose per local regulations (www.lamprecycle.org or 1-800-555-0050).
- Qualified Installation: Install and service only with power disconnected, following applicable electrical codes.
