Product Overview

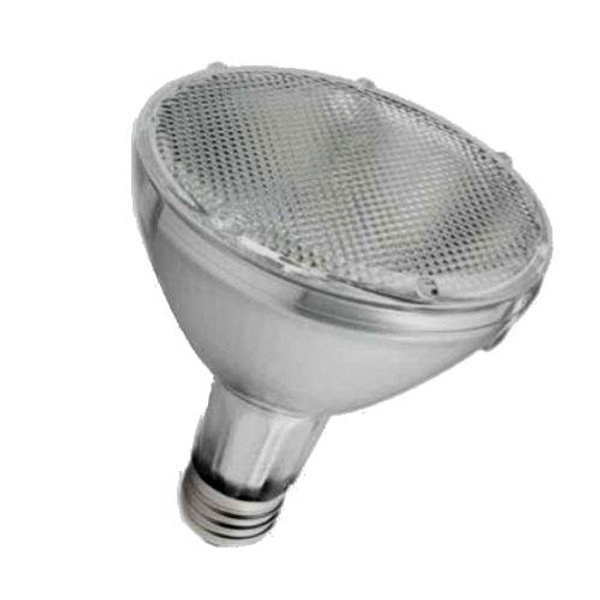

Philips 211409 CDM20PAR30L/M/FL/3K/ALTO – 20W | 3000K Warm White | CRI 81 | 25° Flood | ANSI C156/C175/O | E26 Medium Screw
The Philips 211409 CDM20PAR30L/M/FL/3K/ALTO is a 20W CDM-R Ceramic Metal Halide — PAR Reflector lamp with 25° Flood beam angle, CRI 81, 1,200 initial lumens, ANSI C156/C175/O, E26 Medium Screw, 9,000 hours rated life. Enclosed or Outdoor Luminaires. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear.
Wattage 20W Philips Master | Color Temp 3000K CRI 81 | Beam Angle 25° Flood Spread | Rated Life 9,000 Hours | Base E26 Medium |
Quick Specs
- Brand: Philips
- Series: Philips MasterColor CDM-R Elite
- Philips Order Code: 211409
- ANSI Code: C156/C175/O
- Lamp Type: CDM-R Ceramic Metal Halide — PAR Reflector
- Color Temperature: 3000K Warm White
- Wattage: 20W
- CRI: 81
- Initial Lumens: 1,200 lm
- Rated Average Life: 9,000 hours
- Base Type: E26 Medium Screw
- Overall Length / Diameter (MOL): 4.72" L × 3.81" Ø (120mm × 97mm)
- Beam Angle: 25° Flood
- Burn / Operating Position: Universal
- Fixture Compatibility: Enclosed or Outdoor Luminaires
- Start Type: Requires thermally protected CMH/CDM ballast.
- Mercury Content: Contains mercury — dispose per local regulations.
Product Overview
The Philips 211409 CDM20PAR30L/M/FL/3K/ALTO is a 20W CDM-R Ceramic Metal Halide — PAR Reflector for retail display, architectural accent, and hospitality lighting. CRI 81 — Rated life: 9,000 hours. Enclosed or Outdoor Luminaires.
Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. Contains mercury — dispose per local regulations.
Applications
- Directional display and accent lighting – Retail display, architectural accent, and hospitality lighting.
- Retrofit and maintenance replacement – Verify ANSI code, wattage, and base type before ordering. Requires thermally protected CDM control gear.
Safety and Installation
- Thermally protected ballast required. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear.
- Fixture: Enclosed or Outdoor Luminaires.
- Burn position: Universal.
- Allow warm-up time: 2–4 minutes for full output.
- Hot restrike: Allow 5–10 minutes after switching off before restarting.
- UV radiation: Use only in fixtures with UV-protective shielding.
- Mercury disposal: Contains mercury — dispose per local lamp recycling regulations.
Ordering Information
- Brand: Philips
- Series: Philips MasterColor CDM-R Elite
- Philips Order Code: 211409
- ANSI Code: C156/C175/O
- UPC: —
- Wattage: 20W
- Base: E26 Medium Screw
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
Compliance
- Contains mercury — dispose per local lamp recycling regulations.
- Verify RoHS and Prop 65 compliance with Philips specification sheet.
ADL Supply recommends confirming all specifications with the Philips product data sheet prior to installation.
