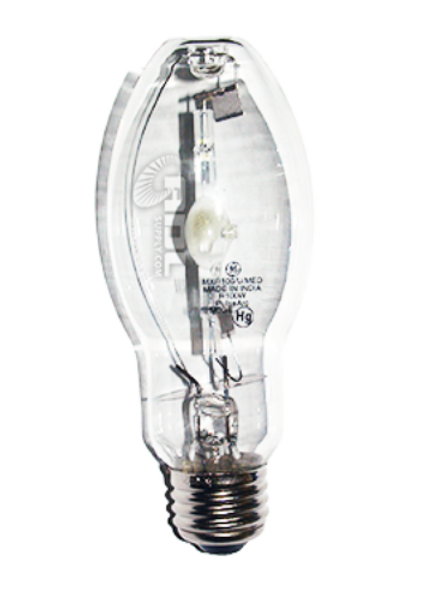

GE CMH100/U/830/MED ConstantColor® Ceramic Metal Halide – 100W | 3000K | 9,200 Lumens | E26 Base | BD17 | M90/M140

9,200 lumens at 3000K with ConstantColor® Technology – a high-performance 100W Ceramic Metal Halide lamp featuring an E26 medium screw base, BD17 bulb shape, 83 CRI for superior color rendering, and a 15,000-hour rated life.

Quick Specs

• Brand: GE Lighting
• Manufacturer Part Number: 22127
• Description: CMH100/U/830/MED
• ANSI Code: M90/M140
• Lamp Type: Ceramic Metal Halide
• Wattage: 100 W
• Base Type: E26 (Medium Screw)
• Bulb Shape: BD17 (Clear)
• Color Temperature: 3000K
• CRI: 83
• Initial Lumens: 9,200 lm
• Mean Lumens: 6,600 lm
• Rated Average Life: 15,000 hours
• Fixture Rating: Enclosed Fixtures Only
• Burn Position: Universal
• Maximum Overall Length (MOL): 5.43 in (138 mm)

Product Overview

The GE 22127 (CMH100/U/830/MED) ConstantColor® Ceramic Metal Halide Lamp is a premium 100-watt HID solution delivering 9,200 initial lumens with exceptional color quality. Unlike standard quartz lamps, GE's ceramic technology provides a high 83 CRI and remarkable color stability over the life of the lamp. The 3000K warm white output creates a high-end atmosphere, making it ideal for retail, hospitality, and professional commercial spaces.

With a 15,000-hour rated life and superior lumen maintenance, this BD17 lamp reduces total cost of ownership by extending relamping cycles. Its universal burn position allows for installation in any orientation, while dual ANSI M90/M140 compliance ensures compatibility with a wide range of electronic and magnetic pulse start ballasts.

Why Choose This Product

• ConstantColor® Technology: Provides excellent color consistency and high-quality rendering (83 CRI) compared to standard HID.
• High Efficacy: Delivers 92 lumens per watt, providing bright, efficient light for commercial interiors.
• Long Life Performance: 15,000-hour rating minimizes maintenance frequency in difficult-to-reach locations.
• Universal Burn: Engineered to operate in any orientation without compromising performance or light quality.
• Standard E26 Base: Fits common medium screw-in sockets found in many architectural and track luminaires.
• Compact BD17 Shape: Clear outer bulb allows for precise optical control in high-performance fixtures.

Technical Specifications

Dimensions

Applications

• Retail store accent and general lighting
• Hospitality, hotel, and restaurant interiors
• Commercial office lobbies and atriums
• Museum and gallery lighting where color accuracy is critical
• Architectural HID luminaires

Compatibility & Installation

Fixture Type: This lamp is Enclosed Rated. It must be operated in a luminaire designed to contain hot fragments in the rare event of a lamp rupture.

Ballast: Requires an ANSI M90 or M140 pulse start ballast. Works with both magnetic and electronic HID ballasts rated for 100W ceramic metal halide.

Before ordering, confirm:

• ANSI Code – M90/M140: Verify your ballast specifications match the lamp requirement.
• Wattage – 100W: Ensure fixture and ballast are rated for 100 watts.
• Enclosure Rating: Ensure your luminaire is fully enclosed and UL-rated for this lamp type.

Ordering Information

• Brand: GE Lighting
• Part Number: 22127
• UPC: 043168221276
• Lamp Description: CMH100/U/830/MED
• Volume pricing and case quantities available – contact ADL Supply for details.

Safety & Handling Notes

• Enclosed Fixture Only: To reduce the risk of injury or property damage, this lamp must be operated in an enclosed fixture.
• Mercury Content: Contains mercury. Dispose of according to local, state, and federal laws.
• UV Radiation Warning: This lamp can cause skin or eye inflammation if the outer envelope is broken. If the bulb breaks, turn off power immediately.
• Turn Power Off: Always disconnect power before handling or replacing the lamp to avoid electrical shock.
• Cool Down: Allow the lamp to cool completely (approx. 15 minutes) before touching or removing from the fixture.
