Product Overview

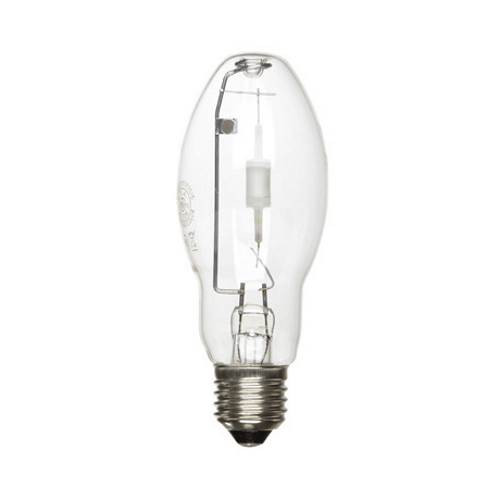

GE MXR150/U/MED 150W Pulse Start Metal Halide Lamp, ANSI M102/E, 3400K, E26 Base
150W Metal Halide Pulse Start ANSI M102/E 3400K E26 Medium Base Enclosed Fixture
The GE MXR150/U/MED is a 150W pulse start metal halide lamp built for commercial and industrial HID lighting applications. This BD17 clear lamp delivers 13,300 initial lumens, 3400K neutral white light, and a 15,000-hour rated life for dependable long-term performance.
Performance Highlights
13,300 Initial Lumens
10,000 Mean Lumens
3400K Color Temperature
CRI 60 Color Rendering
15,000 hrs Rated Life
Universal Burn Position
Specifications
| Lamp Type | Pulse Start Metal Halide |
| Wattage | 150W |
| ANSI Code | M102/E |
| Base Type | E26 Medium Screw |
| Bulb Shape | BD17 Clear |
| Color Temperature | 3400K |
| CRI | 60 |
| Initial Lumens | 13,300 |
| Mean Lumens | 10,000 |
| Rated Life | 15,000 Hours |
| Burn Position | Universal |
| Fixture Rating | Enclosed Fixtures |
| Dimensions | 5.43 in. MOL x 2.125 in. Dia. |
Recommended Ballasts
GEM15048TLC3D-5 GEM150MLTLA3D-5 GEM150TRILC3-5 GEMH150MVR-F
Confirm ballast compatibility against the fixture and manufacturer specifications before ordering.
Safety Information
- Turn power off before inspection, installation, or removal.
- Use only in enclosed fixtures rated for this lamp.
- Keep combustible materials away from lamp.
- A damaged lamp may emit UV radiation that can cause eye or skin injury.
- Do not use the lamp if the outer glass is scratched or broken.
- Unexpected lamp rupture may cause injury, fire, or property damage.
- Do not exceed rated voltage or use in an incompatible ballast system.
