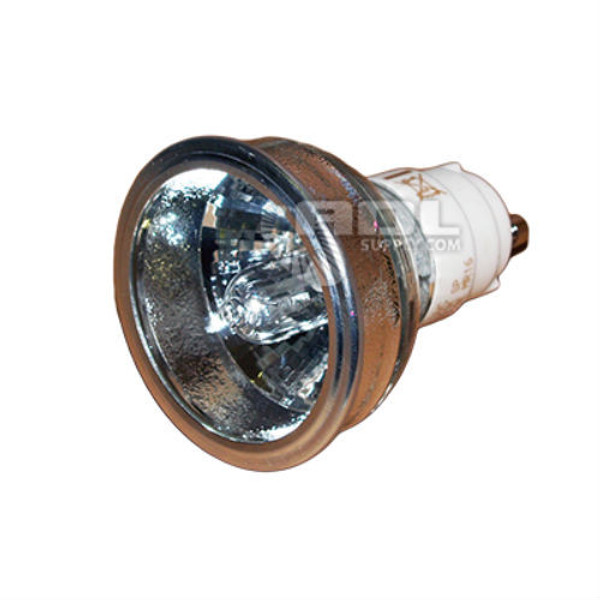

GE 71491 CMH39MR16/942/SP

The GE CMH39MR16/942/SP is a premium ConstantColor® Ceramic Metal Halide 39W spot lamp engineered for demanding commercial accent and display applications. Delivering 16,000 CBCP and 2,200 lumens of stable 4000K natural white performance, this system utilizes a GX10 twist-lock ceramic base configuration to optimize optical precision and color consistency across high-ceiling retail, museum, and architectural fixture frameworks.

ADL Supply Expert Application & Replacement Guide

The GE CMH39MR16/942/SP is primarily specified by lighting designers, electrical contractors, and facility managers across high-end retail showrooms, museum galleries, and architectural accent installations where a tight 12° beam must travel long throw distances without color shift or lumen depreciation. Unlike standard halogen MR16 lamps, this CMH lamp requires a dedicated 39W low-frequency electronic ballast conforming to ANSI C130/M130 — compatible GE ballast models include the GE 63044 (GEMH39-MSJ-MV) and GE 63045 (GEMH39-MSF-MV) — and will not operate correctly on magnetic or non-ANSI-matched electronic ballasts. The GX10 twist-lock ceramic base is a keyed, pressure-locking socket interface distinct from the two-pin GU10 found on standard halogen MR16 lamps, so contractors retrofitting existing halogen fixtures must verify socket compatibility or replace the socket before installation.

Detailed Product Specifications

• Brand: GE Lighting
• Product Line Series: Constant Color Ceramic Metal Halide (CMH)
• Manufacturer Part Number: CMH39MR16/942/SP
• GE Order Code: 71491
• ANSI Code: C130 / M130
• Core Technology: Ceramic Metal Halide — MR16 Reflector Lamp
• Wattage: 39W
• Initial Lumens: 2,200 lm
• Center Beam Candle Power (CBCP): 16,000 cd
• Beam Angle: 12° Narrow Spot (SP)
• Color Temperature (CCT): 4000K Natural White
• Color Rendering Index (CRI): 92
• Rated Average Lifespan: 12,000 Hours
• Base Type Configuration: GX10 Twist-Lock Ceramic
• Maximum Overall Length (MOL): 2.28 inches (58mm)
• Burn Position: Universal — Any Orientation
• UV Control: Integrated UV-filter glass envelope

Operation, Safety & Mounting Compliance

Ballast & Electrical Requirements

This lamp must be operated exclusively on a 39W low-frequency electronic ballast conforming to ANSI C130/M130 specifications. Operation on incompatible ballasts — including magnetic ballasts, high-frequency electronic units, or ballasts rated for standard MH lamps — will result in non-ignition, premature failure, or non-warranted lamp damage. Verify ballast compatibility against the ANSI code before installation. Recommended GE-matched ballasts are the GE 63044 (GEMH39-MSJ-MV) and GE 63045 (GEMH39-MSF-MV). Allow a minimum 15-minute cool-down period before re-lamping — ceramic metal halide lamps operate at high internal pressure and must not be handled or re-struck while hot.

Handling, UV Safety & Environmental Compliance

This lamp contains a small quantity of mercury sealed within the ceramic arc tube and must be disposed of in accordance with applicable federal, state, and local lamp recycling regulations — do not dispose of in standard municipal solid waste streams. The integrated UV-control glass envelope eliminates the need for a secondary UV shield in most open-fixture applications, but installers should confirm fixture manufacturer guidelines for open-face mounting. Handle the lamp by its base only — skin oils deposited on the outer glass envelope can cause thermal stress and premature failure. This product is RoHS-assessed per applicable lamp exemptions.
