Product Overview

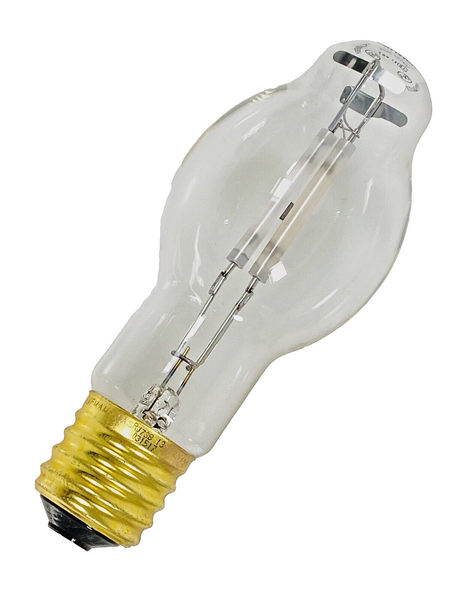

Sylvania Lumalux Stand-By 100W HPS Lamp (#67542)
ANSI S54 • E39 Mogul Base • ET23.5 Clear • 1900K Warm White
Technical Specifications
- Wattage
- 100W
- Base Type
- E39 Mogul Screw
- Bulb Shape
- ET23.5 (Elliptical Tubular)
- Dimensions
- 7.75" MOL x 2.94" Diameter (197mm x 75mm)
Performance Data
- Color Temperature
- 1900K (Warm White)
- CRI
- 22
- Rated Life
- 40,000 Hours
- Initial Efficacy
- 127 LPW (Lumens Per Watt)
Stand-By Technology Features
Dual Arc-Tube Design
Ensures quick restarts during power interruptions
Extended Operation
Guaranteed standby performance up to 24,000 hours
ANSI Compatibility
Direct replacement for standard HPS lamps
Installation Requirements
Environmental Compliance
- Lead-free borosilicate glass construction
- Base withstands 250°C continuous operation
- Exceeds ANSI soldering specifications
System Components
HPS Ballasts
ANSI-compliant 100W ballasts
Mogul Sockets
4000V pulse rated E39 ballast
